Electronic Clutch - Controls

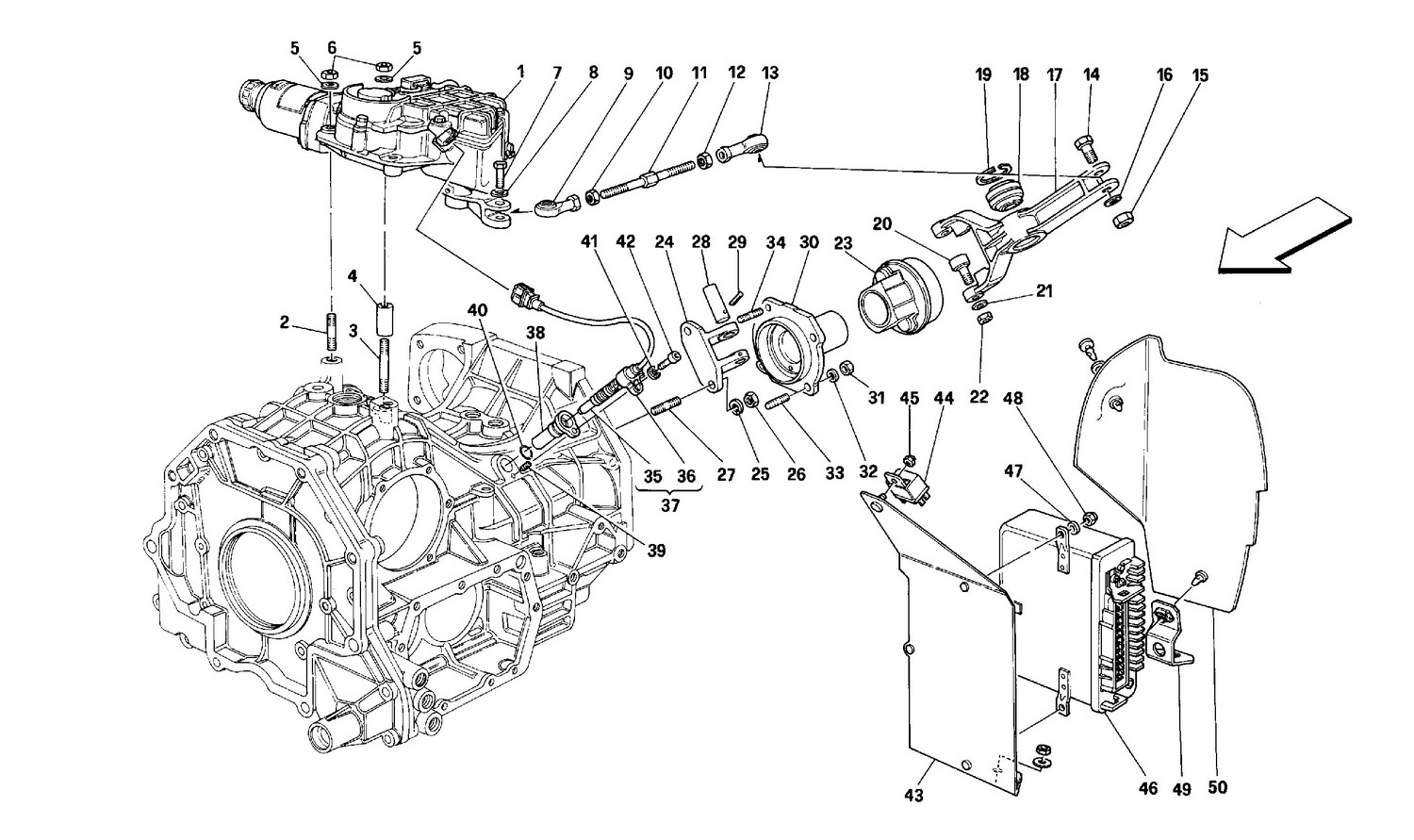

Schematic: Electronic Clutch - Controls
Loc
Part
Cond       Price
1
Clutch control actuator comple…
150449 (1) Full qty
2
Stud
13543521 (2) Full qty
3
Stud
13544121 (1) Full qty
4
Spacer
141496 (1) Full qty
5
Do Not Use - See GE07667n
12601374 (3) Full qty
5
New       £ 0.12
12601374 (3) Full qty
CH11905n
6
Nut
133989 (3) Full qty
7
Screw
130926 (1) Full qty
8
Washer
10519624 (1) Full qty
9
R.H. ball joint
145482 (1) Full qty
10
Nut
133989 (1) Full qty
11
Tie rod
140759 (1) Full qty
12
L.H. nut
16102111 (1) Full qty
13
L.H. ball joint
145483 (1) Full qty
14
Screw
137116 (1) Full qty
15
Nut
150978 (1) Full qty
16
Do Not Use - See GE07667n
12601374 (1) Full qty
16
New       £ 0.12
12601374 (1) Full qty
CH11905n
17
Clutch control lever
140751 (1) Full qty
18
Ball joint
150453 (1) Full qty
19
Stop ring
148407 (1) Full qty
20
Roller pin
144975 (2) Full qty
21
Do Not Use - See GE07667n
12601374 (2) Full qty
21
New       £ 0.12
12601374 (2) Full qty
CH11905n
22
Nut
133989 (2) Full qty
23
Bearing
141575 (1) Full qty
24
Clutch control lever support
145474 (1) Full qty
25
Do Not Use - See GE07667n
12601374 (2) Full qty
25
New       £ 0.12
12601374 (2) Full qty
CH11905n
26
Nut
133989 (2) Full qty
27
Stud
13543121 (2) Full qty
28
Pin
145475 (1) Full qty
29
Spring pin
14162270 (1) Full qty
30
Flange
140725 (1) Full qty
31
Nut
133989 (4) Full qty
32
Wavy Lock Washer 8mm
127496 (4) Full qty
33
Stud bolt
13543221 (3) Full qty
34
Stud
12354524 (1) Full qty
35
Pick up
150450 (1) Full qty
36
Pick up support
141571 (1) Full qty
37
Support and pick up assy
150451 (1) Full qty
38
Pick up bush
140749 (1) Full qty
39
Heli-coil
13525470 (1) Full qty
40
New       Price on Enquiry
134233 (1) Full qty
GE00328n
41
Washer
10615470 (1) Full qty
42
Screw
14305224 (1) Full qty
43
Control unit support plate
144415 (1) Full qty
44
Remote control switch
138954 (1) Full qty
45
Nut
12574117 (1) Full qty
46
Electronic clutch control unit…
150393 (1) Full qty
47
Washer
14496377 (3) Full qty
48
Nut
12574117 (3) Full qty
49
Bracket
62863000 (1) Full qty
50
Bulkhead for unit covering
62862100 (1) Full qty
50
Bulkhead for unit covering
62862200 (1) Full qty
