Air Conditioning System

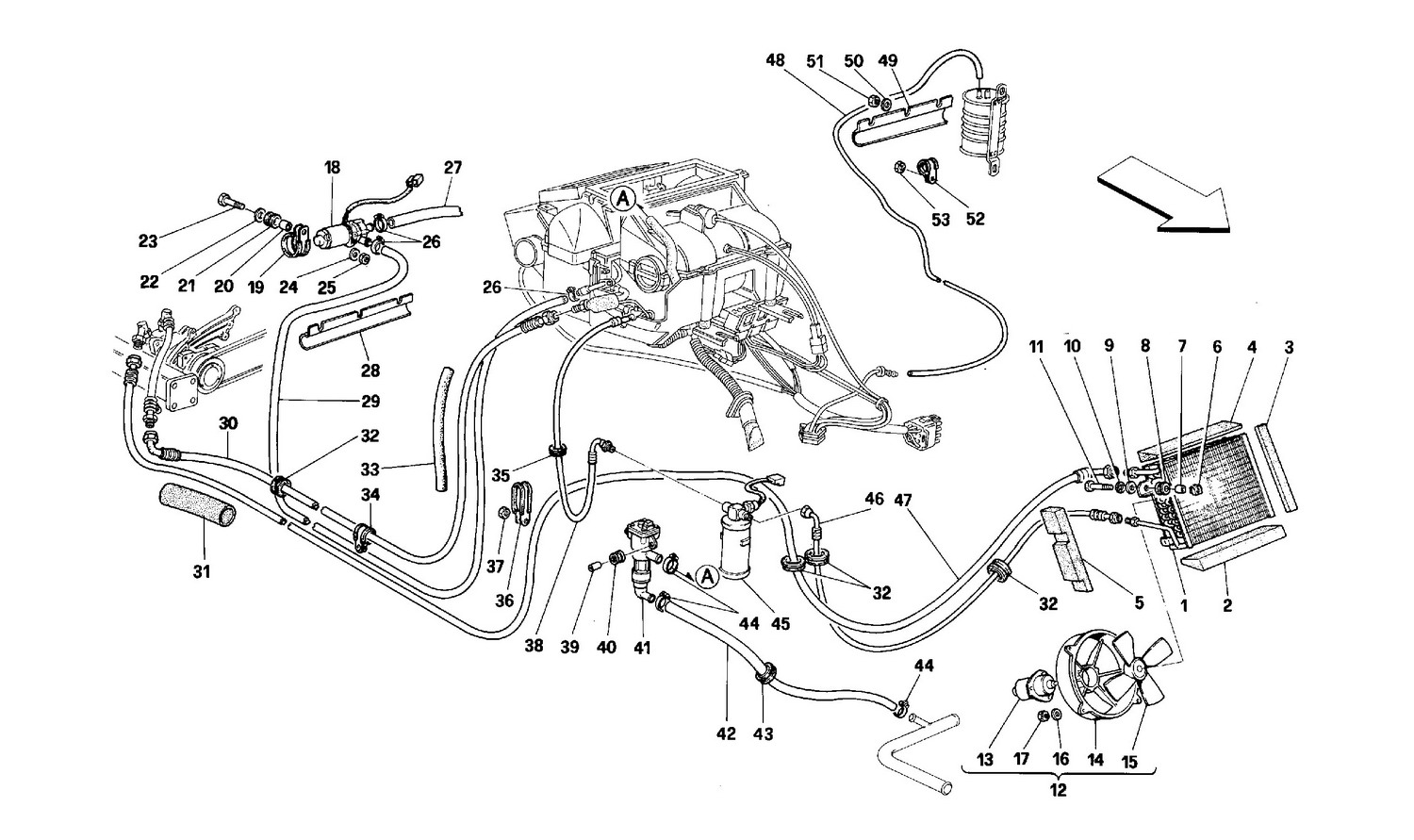

Schematic: Air Conditioning System
Schematic: Air Conditioning System
Loc
Part
Cond       Price
1
A.C. condenser
60649100 (1) Full qty
2
Lower gasket
60729100 (1) Full qty
3
L.H. gasket
60729400 (1) Full qty
4
Upper gasket
60729200 (1) Full qty
5
R.H. gasket
60729300 (1) Full qty
6
Caged nut
60659100 (4) Full qty
7
Spacer
103550 (4) Full qty
8
Cable Grommet
New       Price on Enquiry
103549 (4) Full qty
AC00210n
9
Flat Washer
12643701 (4) Full qty
10
Washer
10615471 (4) Full qty
11
Screw
10902611 (3) Full qty
11
Screw
10902511 (1) Full qty
12
Fan
61992600 (1) Full qty
13
Motor
123136 (1) Full qty
14
Air conveyor
60870300 (1) Full qty
15
Cooling Fan
New       Price on Enquiry
122953 (1) Full qty
CS11850n
16
Spring washer
12644401 (4) Full qty
17
Nut
12574211 (4) Full qty
18
Pump
61787900 (1) Full qty
19
Bracket
107002 (1) Full qty
20
Spacer
103550 (1) Full qty
21
Cable Grommet
New       Price on Enquiry
103549 (1) Full qty
AC00210n
22
Washer
14496401 (1) Full qty
23
Screw
10902821 (1) Full qty
24
Flat Washer
12643701 (1) Full qty
25
Nut
12574211 (1) Full qty
26
Clamp
12179590 (3) Full qty
27
Pipe from engine to pump
62842300 (1) Full qty
27
Pipe from engine to pump
62842400 (1) Full qty
28
R.H. protection
141179 (1) Full qty
29
Pipe from pump to heater
60839700 (1) Full qty
29
Pipe from pump to heater
62842500 (1) Full qty
29
Pipe from pump to heater
62842600 (1) Full qty
30
Evaporator-compressor pipe
62502100 (1) Full qty
30
Evaporator-compressor pipe
62839300 (1) Full qty
30
Evaporator-compressor pipe
62677400 (1) Full qty
30
Evaporator-compressor pipe
62943000 (1) Full qty
30
Evaporator-compressor pipe
62839500 (1) Full qty
31
Protection
108031 (1) Full qty
32
Cable grommet
10396880 (4) Full qty
33
Insulator for evaporator-compr…
61275000 (1) Full qty
34
Bracket
61193800 (1) Full qty
34
Bracket
61712100 (1) Full qty
35
Cable grommet
10396780 (1) Full qty
36
Hose fastening bracket
61712500 (2) Full qty
36
Bracket D. 28
61712600 (2) Full qty
37
Nut
12574211 (4) Full qty
38
Cleaner-evaporator pipe
62502200 (1) Full qty
39
Spacer
103550 (2) Full qty
40
Cable Grommet
New       Price on Enquiry
103549 (2) Full qty
AC00210n
41
Electromagnetic valve
61079000 (1) Full qty
42
Pipe from valve to engine retu…
61084800 (1) Full qty
42
Pipe from valve to engine retu…
61129700 (1) Full qty
43
Cable grommet
10396980 (2) Full qty
44
Clamp
12180290 (3) Full qty
45
Dehydrating filter with presso…
62433100 (1) Full qty
45
Pressostat for filter
62433300 (1) Full qty
45
A/C Dryer 348
New       Price on Enquiry
62655500 (1) Full qty
AC00262n
46
Condenser-cleaner pipe
62502400 (1) Full qty
46
Condenser-cleaner pipe
61369800 (1) Full qty
47
Compressor-condenser
62502300 (1) Full qty
48
Pipe from vacuum tank to union…
61739100 (1) Full qty
49
Protection
141178 (1) Full qty
50
Washer
10519401 (6) Full qty
51
Nut
12574211 (6) Full qty
52
Bracket
10418501 (1) Full qty
53
Nut
14084211 (1) Full qty
