Dashboard

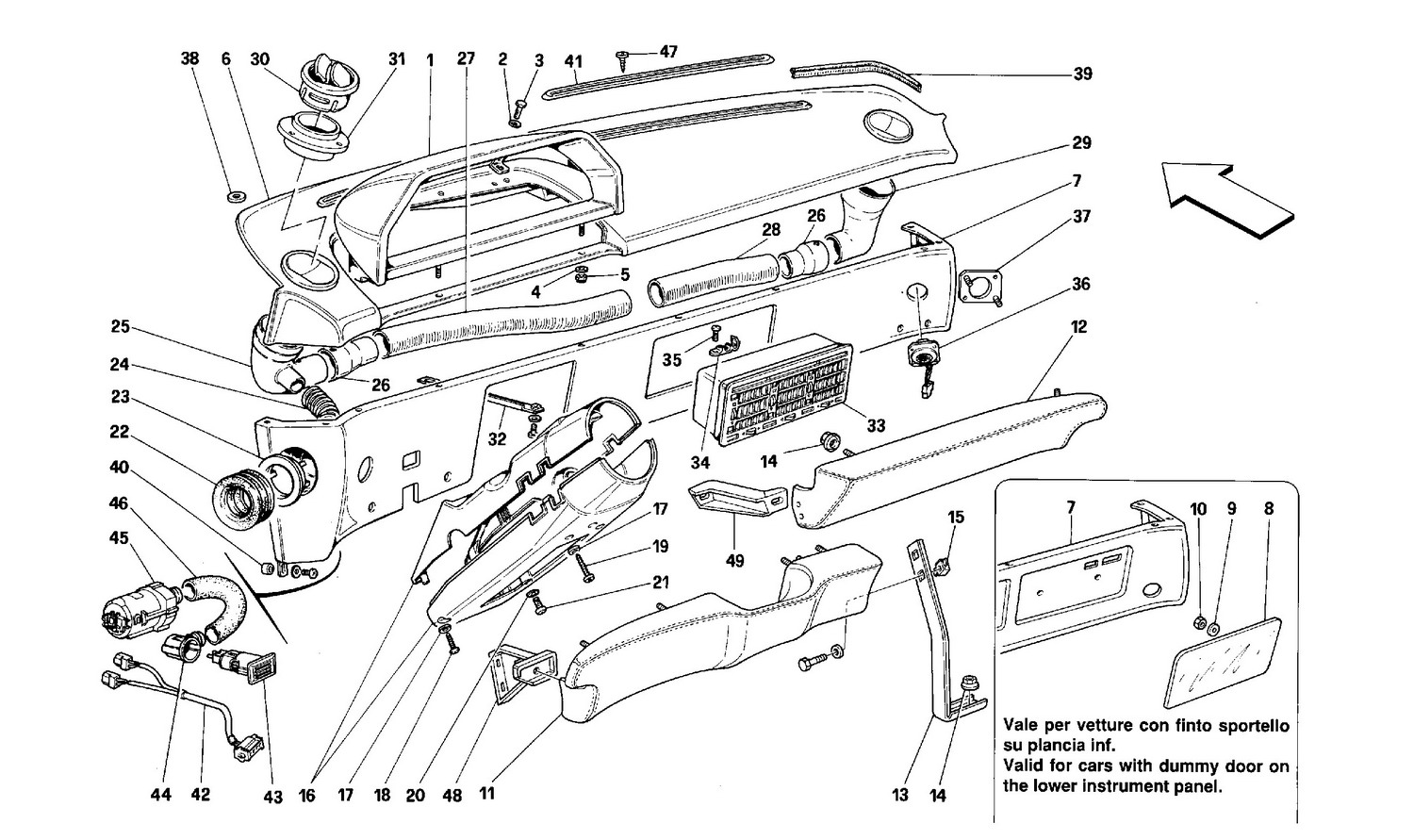

Schematic: Dashboard
Loc
Part
Cond       Price
1
Lined dashboard structure box …
62673000 (1) Full qty
1
Lined dashboard structure box …
63001400 (1) Full qty
1
Lined dashboard structure box …
62808200 (1) Full qty
1
Lined dashboard structure box …
63002200 (1) Full qty
2
Washer
12638101 (2) Full qty
3
Screw
10977711 (2) Full qty
4
Washer
12624101 (10) Full qty
5
Nut
13831801 (10) Full qty
6
Lined dashboard
62826000 (1) Full qty
6
Lining
61777700 (1) Full qty
6
Lined dashboard
62808300 (1) Full qty
6
Lining
61829900 (1) Full qty
6
Lined dashboard
62644500 (1) Full qty
6
Lining
61784900 (1) Full qty
6
Lined dashboard
62818800 (1) Full qty
6
Lining
61829900 (1) Full qty
7
Lined lower dashboard without …
629455.. (1) Full qty
7
Lined lower dashboard without …
627757.. (1) Full qty
7
Lined lower dashboard with dum…
625435.. (1) Full qty
7
Lined lower dashboard without …
629456.. (1) Full qty
7
Lined lower dashboard with dum…
628084.. (1) Full qty
7
R.H. side lining
610774.. (1) Full qty
7
R.H. side lining
613413.. (1) Full qty
7
L.H. side lining
613297.. (1) Full qty
7
L.H. side lining
611321.. (1) Full qty
8
Lined dummy door
629242.. (1) Full qty
8
Lining
625474.. (1) Full qty
9
Washer
12624101 (2) Full qty
10
Nut
13831801 (2) Full qty
11
L.H. knee protect
627785.. (1) Full qty
11
Lining
627773.. (1) Full qty
12
R.H. knee protect
627786.. (1) Full qty
12
Lining
627772.. (1) Full qty
13
L.H. bracket to fix. knee prot…
62467200 (1) Full qty
13
R.H. bracket to fix. knee prot…
62474300 (1) Full qty
14
Nut
13832101 (20) Full qty
15
Caged nut
60659100 (4) Full qty
16
Complete column cover
62451100 (1) Full qty
16
Complete column cover
63319000 (1) Full qty
17
Washer
14499301 (4) Full qty
18
Screw
15960507 (2) Full qty
19
Screw
15961107 (2) Full qty
20
Washer
12601179 (2) Full qty
21
Screw
13274111 (2) Full qty
22
Gasket
60657400 (2) Full qty
23
Plug
60657500 (2) Full qty
24
Air pipe for door
60657300 (2) Full qty
25
Union for L.H. air opening
60656800 (1) Full qty
25
Union for L.H. air opening
60754000 (1) Full qty
26
Reduction
61274400 (2) Full qty
27
Pipe to conn. conditioner at L…
62638900 (1) Full qty
27
Pipe to conn. conditioner at L…
61876600 (1) Full qty
27
Pipe to conn. conditioner at L…
61981600 (1) Full qty
28
Pipe to conn. conditioner at R…
62638800 (1) Full qty
28
Pipe to conn. conditioner at R…
61876500 (1) Full qty
29
Union for R.H. opening
62616900 (1) Full qty
29
Union for R.H. opening
60656700 (1) Full qty
29
Union for R.H. opening
60753900 (1) Full qty
30
Air opening
60656500 (2) Full qty
31
Plug
60656600 (2) Full qty
32
Bracket
62532300 (2) Full qty
33
Central opening
60657100 (1) Full qty
34
Clip
129544 (3) Full qty
35
Screw
15688101 (3) Full qty
36
New       Price on Enquiry
62462600 (2) Full qty
NT10270n
37
Plate
61990100 (2) Full qty
38
Rubber washer
60657600 (2) Full qty
39
Gasket
60951700 (1) Full qty
40
Spacer
13605711 (0) Full qty
40
Spacer
13605811 (0) Full qty
41
R.H. air diffuser
60656300 (1) Full qty
41
L.H. air diffuser
60656400 (1) Full qty
42
Sensor cable for internal temp…
119430 (1) Full qty
43
Sensor for internal temperatur…
61079100 (1) Full qty
44
Box sensor
61079200 (1) Full qty
45
New       £ 151.55
61983500 (1) Full qty
AC00535n
46
Pipe
61089300 (1) Full qty
47
Screw
61696100 (12) Full qty
48
L.H. bracket for L.H. knee pro…
62450900 (1) Full qty
48
R.H. bracket for L.H. knee pro…
62450800 (1) Full qty
49
L.H. bracket for R.H. knee pro…
62451000 (1) Full qty
49
R.H. bracket for R.H. knee pro…
62458400 (1) Full qty
