Front Seats -Valid For Passive Belts-

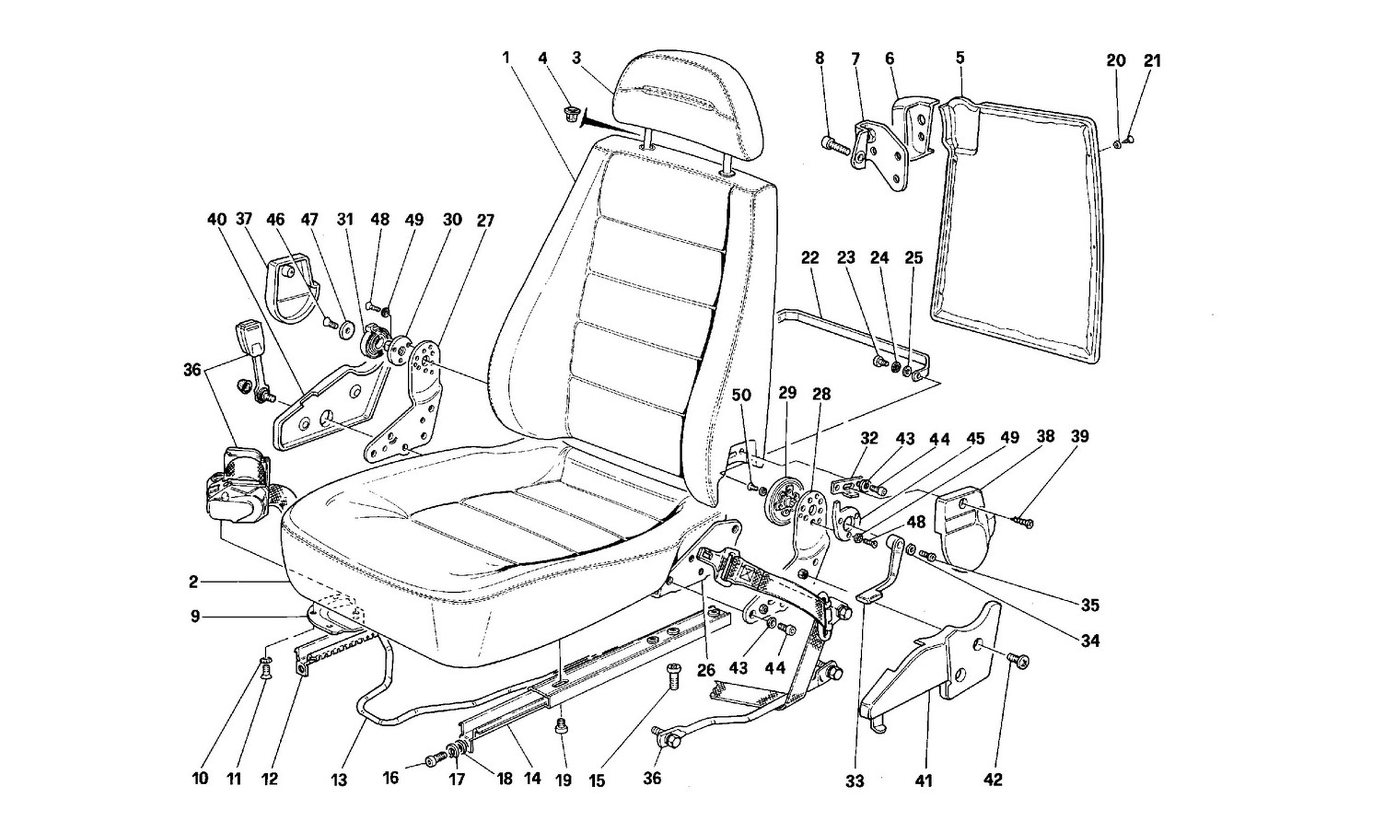

Schematic: Front Seats -Valid For Passive Belts-
Schematic: Front Seats -Valid For Passive Belts-
Loc
Part
Cond       Price
1
Front L.H. lined back seat
627781.. (1) Full qty
1
Front R.H. lined back seat
627780.. (1) Full qty
1
Seat back lining
626962.. (2) Full qty
2
Front lined pillow
629829.. (2) Full qty
2
Cushion lining
629801.. (2) Full qty
3
Lined head rest
628313.. (2) Full qty
3
Head rest lining
626972.. (2) Full qty
4
Bush for head rest
20058905 (4) Full qty
5
L.H. shield panel for back sea…
627767.. (1) Full qty
5
R.H. shield panel for back sea…
627758.. (1) Full qty
6
Lined L.H. structure
627771.. (1) Full qty
6
Lined R.H. structure
627770.. (1) Full qty
7
L.H. bracket
62775200 (1) Full qty
7
R.H. bracket
62775100 (1) Full qty
8
Screw
14306521 (2) Full qty
9
L.H. bracket to rolling device…
62778200 (1) Full qty
9
R.H. bracket to rolling device…
62592800 (1) Full qty
10
Washer
12606876 (6) Full qty
11
Screw
14441327 (6) Full qty
12
R.H. guide for seat
62597600 (2) Full qty
13
Control fork for L.H. seat gui…
62779800 (1) Full qty
13
Control fork for R.H. seat gui…
62779700 (1) Full qty
14
L.H. guide for seat
62597700 (2) Full qty
15
Seatbelt Mounting Bracket
New       £ 3.58
40294308 (4) Full qty
NT10738n
16
Front screw to fix. frame-seat…
14306326 (4) Full qty
17
Do Not Use - See GE07667n
12601374 (4) Full qty
17
Rocker Block Wavy Washer
New       £ 0.12
12601374 (4) Full qty
CH11905n
18
Washer
14496506 (4) Full qty
19
Seatbelt Mounting Bracket
New       £ 3.58
40294308 (16) Full qty
NT10738n
20
Washer
62823200 (12) Full qty
21
Screw
15908878 (12) Full qty
22
Joint connection
62651800 (2) Full qty
23
Screw
14302931 (4) Full qty
24
Washer
10615279 (4) Full qty
25
Washer
12642801 (4) Full qty
26
L.H. plate for seat
62593300 (2) Full qty
26
R.H. plate for seat
62593500 (2) Full qty
27
R.H. joint plate
62595000 (2) Full qty
28
L.H. joint plate
62594900 (2) Full qty
29
Back seat regulator for L.H. h…
62739200 (2) Full qty
29
Back seat regulator for R.H. h…
62739100 (2) Full qty
30
Bush for spring
62652000 (2) Full qty
31
Spring for rear seat
62651900 (2) Full qty
32
Plate to stop spring at the ba…
62887300 (4) Full qty
33
L.H. seat release handle
62866900 (1) Full qty
33
R.H. seat release handle
62866800 (1) Full qty
34
Washer
12606776 (2) Full qty
35
Screw
14440737 (2) Full qty
36
L.H. abdominal belt with slide…
62741800 (1) Full qty
36
R.H. abdominal belt with slide…
62894800 (1) Full qty
37
R.H. upper joint cover for L.H…
629530.. (1) Full qty
37
R.H. upper joint cover for R.H…
629524.. (1) Full qty
38
L.H. upper joint cover for L.H…
629532.. (1) Full qty
38
L.H. upper joint cover for R.H…
629527.. (1) Full qty
39
Screw
14441037 (4) Full qty
40
R.H. lower joint cover for L.H…
627759.. (1) Full qty
40
R.H. lower joint cover for R.H…
627761.. (1) Full qty
41
L.H. lower joint cover for L.H…
627765.. (1) Full qty
41
L.H. lower joint cover for R.H…
627763.. (1) Full qty
42
Screw
20297602 (8) Full qty
43
Do Not Use - See GE07667n
12601374 (28) Full qty
43
Rocker Block Wavy Washer
New       £ 0.12
12601374 (28) Full qty
CH11905n
44
Seatbelt Mounting Bracket
New       £ 3.58
40294308 (28) Full qty
NT10738n
45
Back seat fastening for L.H. s…
62955800 (1) Full qty
45
Back seat fastening for R.H. s…
62955700 (1) Full qty
46
Screw
14441227 (2) Full qty
47
Washer for spring
12624177 (2) Full qty
48
Screw
14441227 (12) Full qty
49
Washer
12606876 (12) Full qty
50
Screw
14441127 (12) Full qty
