Front Seats -Not For Passive Belts-

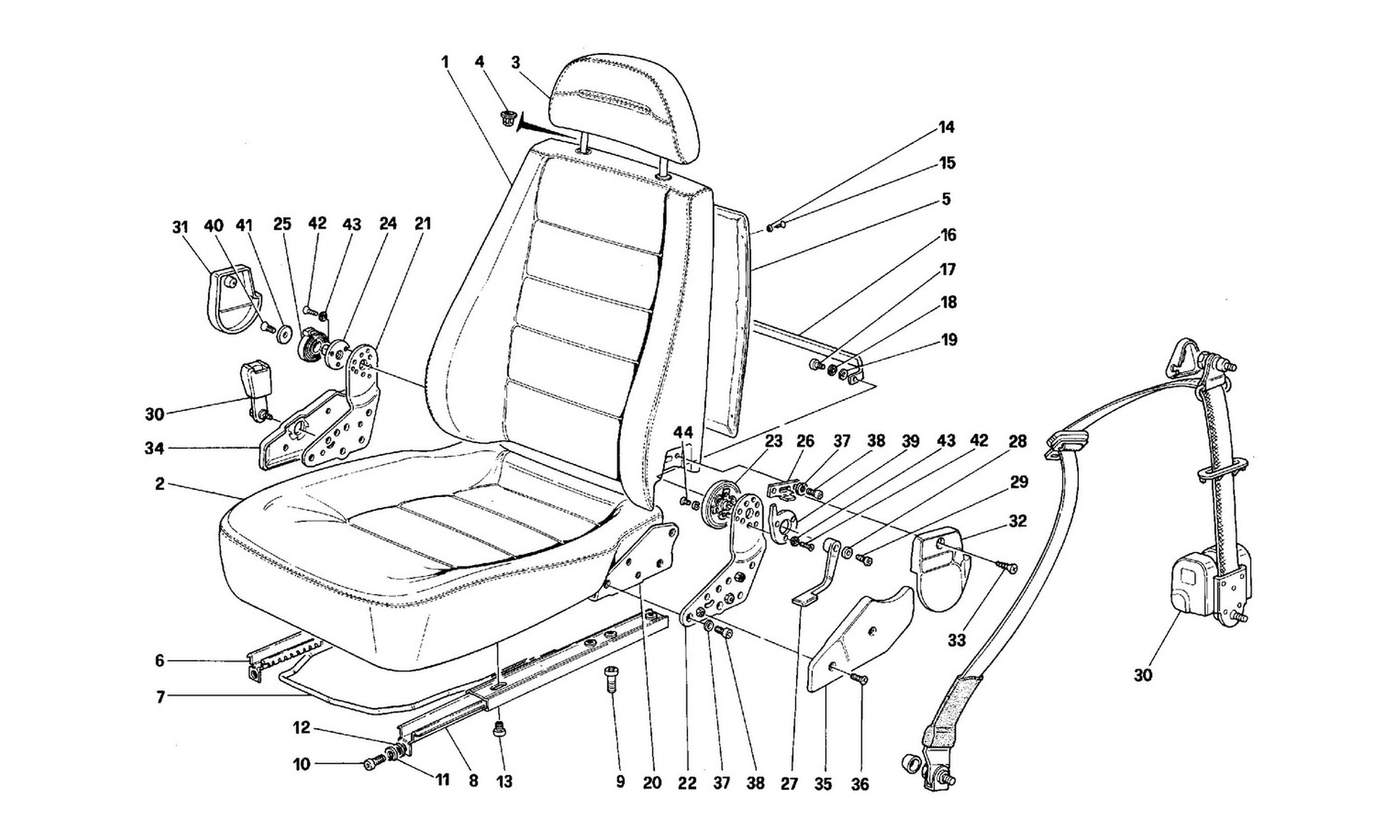

Schematic: Front Seats -Not For Passive Belts-
Schematic: Front Seats -Not For Passive Belts-
Loc
Part
Cond       Price
1
Front L.H. lined back seat
628315.. (1) Full qty
1
Front R.H. lined back seat
628314.. (1) Full qty
1
Seat back lining
626962.. (2) Full qty
2
Front lined pillow
629829.. (2) Full qty
2
Cushion lining
629801.. (2) Full qty
2
Front lined pillow
628316.. (2) Full qty
2
Cushion lining
626983.. (2) Full qty
3
Lined head rest
628313.. (2) Full qty
3
Head rest lining
626972.. (2) Full qty
4
Bush for head rest
20058905 (4) Full qty
5
Shield panel for back seat
628321.. (2) Full qty
6
R.H. guide for seat
62597600 (2) Full qty
7
Guides control fork
62886000 (2) Full qty
8
L.H. guide for seat
62597700 (2) Full qty
9
Seatbelt Mounting Bracket
New       £ 3.58
40294308 (4) Full qty
NT10738n
10
Front screw to fix. frame-seat…
14306326 (4) Full qty
11
Do Not Use - See GE07667n
12601374 (4) Full qty
11
Rocker Block Wavy Washer
New       £ 0.12
12601374 (4) Full qty
CH11905n
12
Washer
14496506 (4) Full qty
13
Seatbelt Mounting Bracket
New       £ 3.58
40294308 (16) Full qty
NT10738n
14
Washer
62823200 (12) Full qty
15
Screw
15908878 (12) Full qty
16
Joint connection
62651800 (2) Full qty
17
Screw
14302931 (4) Full qty
18
Washer
10615279 (4) Full qty
19
Washer
12642801 (4) Full qty
20
L.H. plate for seat
62593300 (2) Full qty
20
R.H. plate for seat
62593500 (2) Full qty
21
R.H. joint plate
62595000 (2) Full qty
22
L.H. joint plate
62594900 (2) Full qty
23
L.H. hand back seat regulator
62652400 (2) Full qty
23
R.H. hand back seat regulator
62652200 (2) Full qty
24
Bush for spring
62652000 (2) Full qty
25
Spring for rear seat
62651900 (2) Full qty
26
Plate to stop spring at the ba…
62887300 (4) Full qty
27
L.H. seat release handle
62866900 (1) Full qty
27
R.H. seat release handle
62866800 (1) Full qty
28
Washer
12606776 (2) Full qty
29
Screw
14440737 (2) Full qty
30
Front safety belts set
70000594 (1) Full qty
30
Front safety belts set
60834900 (1) Full qty
30
Front safety belts set
62855600 (1) Full qty
30
Front safety belts set
61444700 (1) Full qty
30
Front safety belts set
63007800 (1) Full qty
31
R.H. upper joint cover for L.H…
629530.. (1) Full qty
31
R.H. upper joint cover for R.H…
629524.. (1) Full qty
32
L.H. upper joint cover for L.H…
629532.. (1) Full qty
32
L.H. upper joint cover for R.H…
629527.. (1) Full qty
33
Screw
14441037 (4) Full qty
34
R.H. lower joint cover for L.H…
632222.. (1) Full qty
34
R.H. lower joint cover for L.H…
628851.. (1) Full qty
34
R.H. lower joint cover for R.H…
632224.. (1) Full qty
34
R.H. lower joint cover for R.H…
628320.. (1) Full qty
35
L.H. lower joint cover for L.H…
632221.. (1) Full qty
35
L.H. lower joint cover for L.H…
628317.. (1) Full qty
35
L.H. lower joint cover for R.H…
632223.. (1) Full qty
35
L.H. lower joint cover for R.H…
628697.. (1) Full qty
36
Screw
20297602 (8) Full qty
37
Do Not Use - See GE07667n
12601374 (28) Full qty
37
Rocker Block Wavy Washer
New       £ 0.12
12601374 (28) Full qty
CH11905n
38
Seatbelt Mounting Bracket
New       £ 3.58
40294308 (28) Full qty
NT10738n
39
Back seat fastening for L.H. s…
62955800 (1) Full qty
39
Back seat fastening for R.H. s…
62955700 (1) Full qty
40
Screw
14441227 (2) Full qty
41
Washer for spring
12624177 (2) Full qty
42
Screw
14441227 (12) Full qty
43
Washer
12606876 (12) Full qty
44
Screw
14441127 (12) Full qty
