Seats And Rear Safety Belts - Coupe -

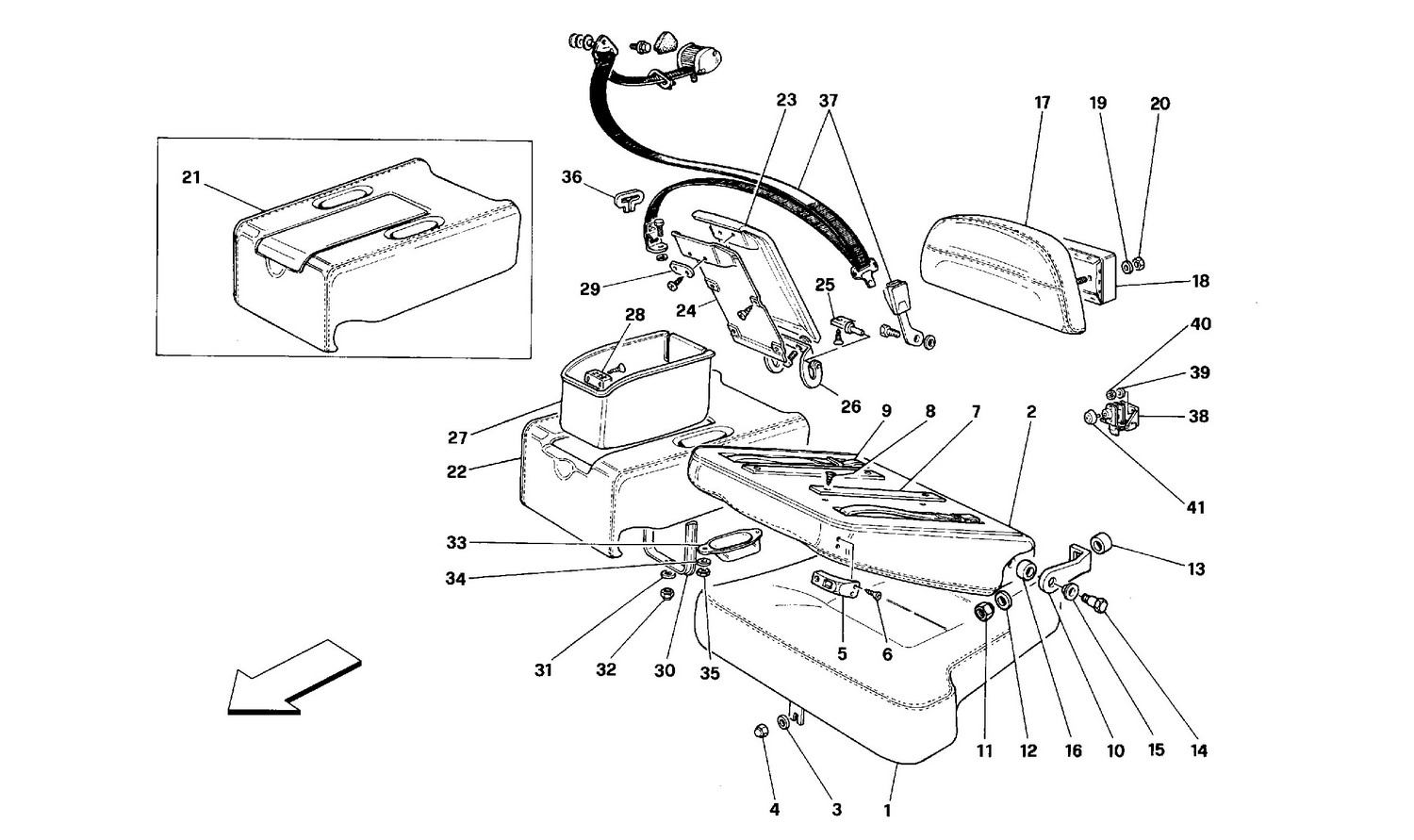

Schematic: Seats And Rear Safety Belts - Coupe -
Loc
Part
Cond       Price
1
Lined L.H. rear cushion
625566.. (1) Full qty
1
L.H. cushion lining
626984.. (1) Full qty
1
Lined R.H. rear cushion
625567.. (1) Full qty
1
R.H. cushion lining
626963.. (1) Full qty
2
L.H. rear seat back
625569.. (1) Full qty
2
R.H. rear seat back
625568.. (1) Full qty
2
Seat back lining
626964.. (2) Full qty
3
Washer
12640677 (2) Full qty
4
Fixing cushion nut
20293000 (2) Full qty
5
Bracket on L.H. seat back
62558300 (1) Full qty
5
Bracket on R.H. seat back
62575500 (1) Full qty
6
Screw
15908578 (6) Full qty
7
Strip for rear seat back
62607900 (4) Full qty
8
Screw
15671402 (8) Full qty
9
Belts
625678.. (4) Full qty
10
L.H. seat back fastening brack…
62575300 (2) Full qty
10
R.H. seat back fastening brack…
62560200 (2) Full qty
11
Nut
16104111 (4) Full qty
12
Washer
14496501 (4) Full qty
13
Spacer
62588100 (4) Full qty
14
Screw fixing seat back
62557800 (4) Full qty
15
Bushing
62557700 (4) Full qty
16
Spacer
62557900 (4) Full qty
17
Lining head rest
625603.. (2) Full qty
18
Lining head rest spacer
626636.. (2) Full qty
19
Washer
12624101 (4) Full qty
20
Nut
14084111 (4) Full qty
21
Complete rear object-holder
625898.. (1) Full qty
22
Lined object-holder structure
625705.. (1) Full qty
23
Lined object-holder cover
625694.. (1) Full qty
24
Cover inner lining
62570100 (1) Full qty
25
L.H. hinge
61192600 (1) Full qty
25
R.H. hinge
61153300 (1) Full qty
26
Cover hinge
62586300 (1) Full qty
27
Object-holder box
62613600 (1) Full qty
28
Magnetic block (with plate 29)…
60627800 (1) Full qty
29
Nut
- (1) Full qty
30
Box bracket
62671900 (1) Full qty
31
Washer
14446921 (1) Full qty
32
Nut
14059111 (1) Full qty
33
Side object-holder lining
62613500 (2) Full qty
34
Washer
10615170 (4) Full qty
35
Nut
10721911 (4) Full qty
36
Plate
60709400 (2) Full qty
37
Rear belts series
62529500 (1) Full qty
37
Rear belts series
62636300 (1) Full qty
38
Seat release
62590400 (2) Full qty
39
Washer
149951 (4) Full qty
40
Nut
12574115 (4) Full qty
41
Plug seat release
62871500 (2) Full qty
