Doors -Cabriolet- Opening Control And Hinges

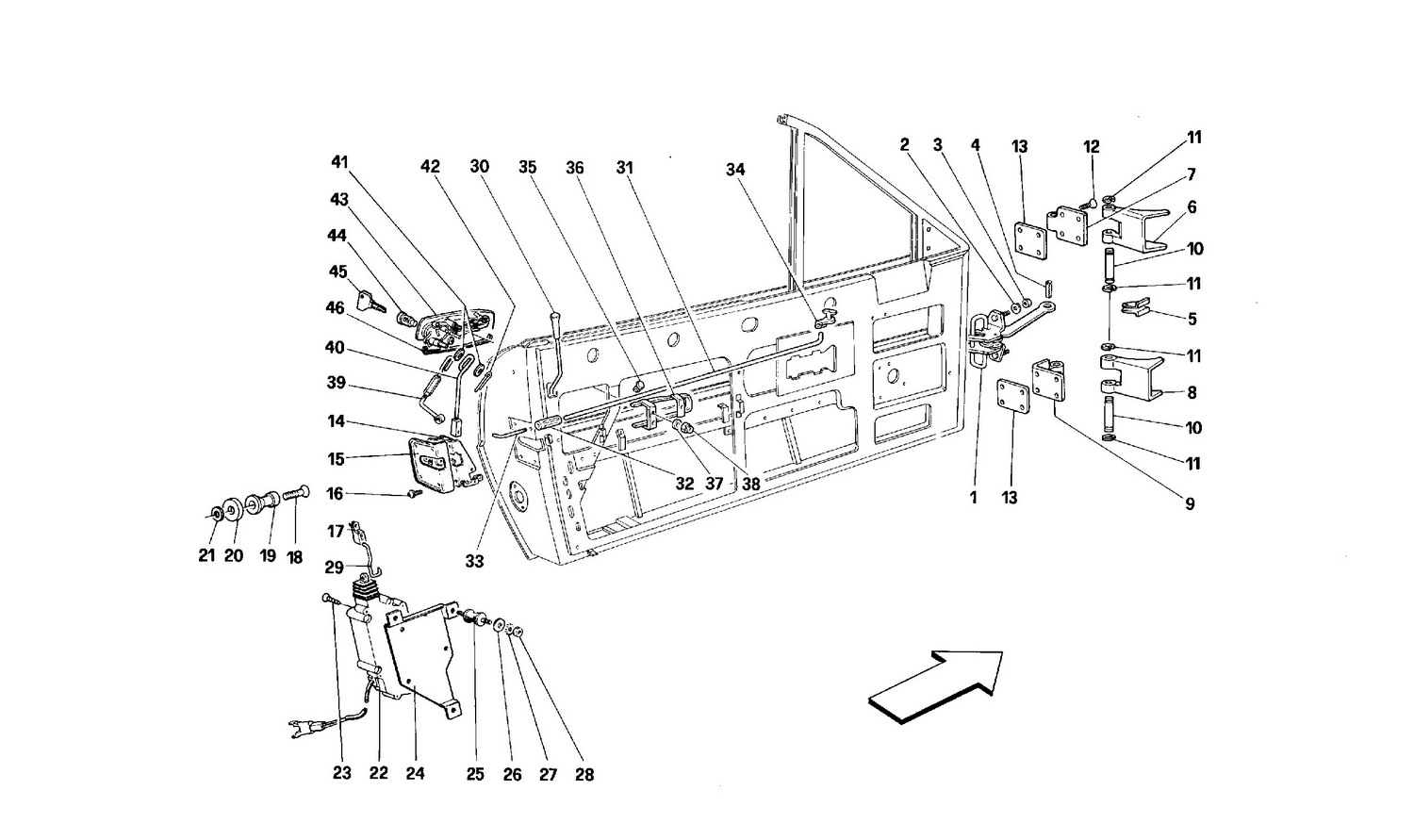

Schematic: Doors -Cabriolet- Opening Control And Hinges
Loc
Part
Cond       Price
1
Stop tie rod for door
60921100 (2) Full qty
2
Washer
60711900 (2) Full qty
3
Nut
12574115 (2) Full qty
4
Pin for tie-rod
60730200 (2) Full qty
5
Bracket to fix. stop door
60549100 (2) Full qty
6
Upper fixed hinge
60547000 (2) Full qty
7
Upper mobile hinge
60547200 (2) Full qty
8
L.H. lower fixed hinge
61212800 (1) Full qty
8
R.H. lower fixed hinge
61340800 (1) Full qty
9
Lower mobile hinge
60547500 (2) Full qty
10
Door hinges pin
60547600 (4) Full qty
11
Spring ring
16160976 (8) Full qty
12
Screw
60127206 (16) Full qty
13
Zincfoil
60732000 (4) Full qty
14
L.H. lock
61775500 (1) Full qty
14
R.H. lock
61775400 (1) Full qty
15
L.H. molding
60634800 (1) Full qty
15
R.H. molding
60634700 (1) Full qty
16
Screw 6x15
60909500 (2) Full qty
16
Screw 6x30
60909600 (6) Full qty
17
Spring
40063208 (6) Full qty
18
Screw
60673700 (2) Full qty
19
Lock support
60670100 (2) Full qty
20
Gasket
60775900 (2) Full qty
21
Washer
12642024 (4) Full qty
22
Locking device for door
62437700 (2) Full qty
23
Screw
15688007 (8) Full qty
24
L.H. support
61811500 (1) Full qty
24
R.H. support
61811400 (1) Full qty
25
New       Price on Enquiry
113021 (6) Full qty
CS11806n
26
Washer
12638177 (6) Full qty
27
Washer
149951 (6) Full qty
28
Nut to fixing front and rear s…
15896470 (6) Full qty
29
L.H. rod
61811700 (1) Full qty
29
R.H. rod
61811600 (1) Full qty
30
Security knob with rod
61813600 (2) Full qty
31
Front rod
61789500 (2) Full qty
32
Sleeve
60088606 (2) Full qty
33
Rear rod
61309800 (2) Full qty
34
Spring
61611500 (2) Full qty
35
Spring
14577880 (4) Full qty
36
Bracket
62578000 (2) Full qty
37
Washer
12638101 (6) Full qty
38
Nut
12574115 (6) Full qty
39
Rod rear handle and lock
60633800 (2) Full qty
40
Rod with terminal
60636600 (2) Full qty
41
Washer
10519377 (4) Full qty
42
Cotter pin
10734101 (2) Full qty
43
Outer handle assy for R.H. doo…
62577400 (1) Full qty
43
New       £ 313.50
62577500 (1) Full qty
BW99219n
44
New       £ 324.50
62612200 (1) Full qty
BW99217n
45
Lock key
95401147 (0) Full qty
46
Outer handle gasket
62578100 (2) Full qty
