Doors - Coupe - Glass Lifting Device And Rear Mirror

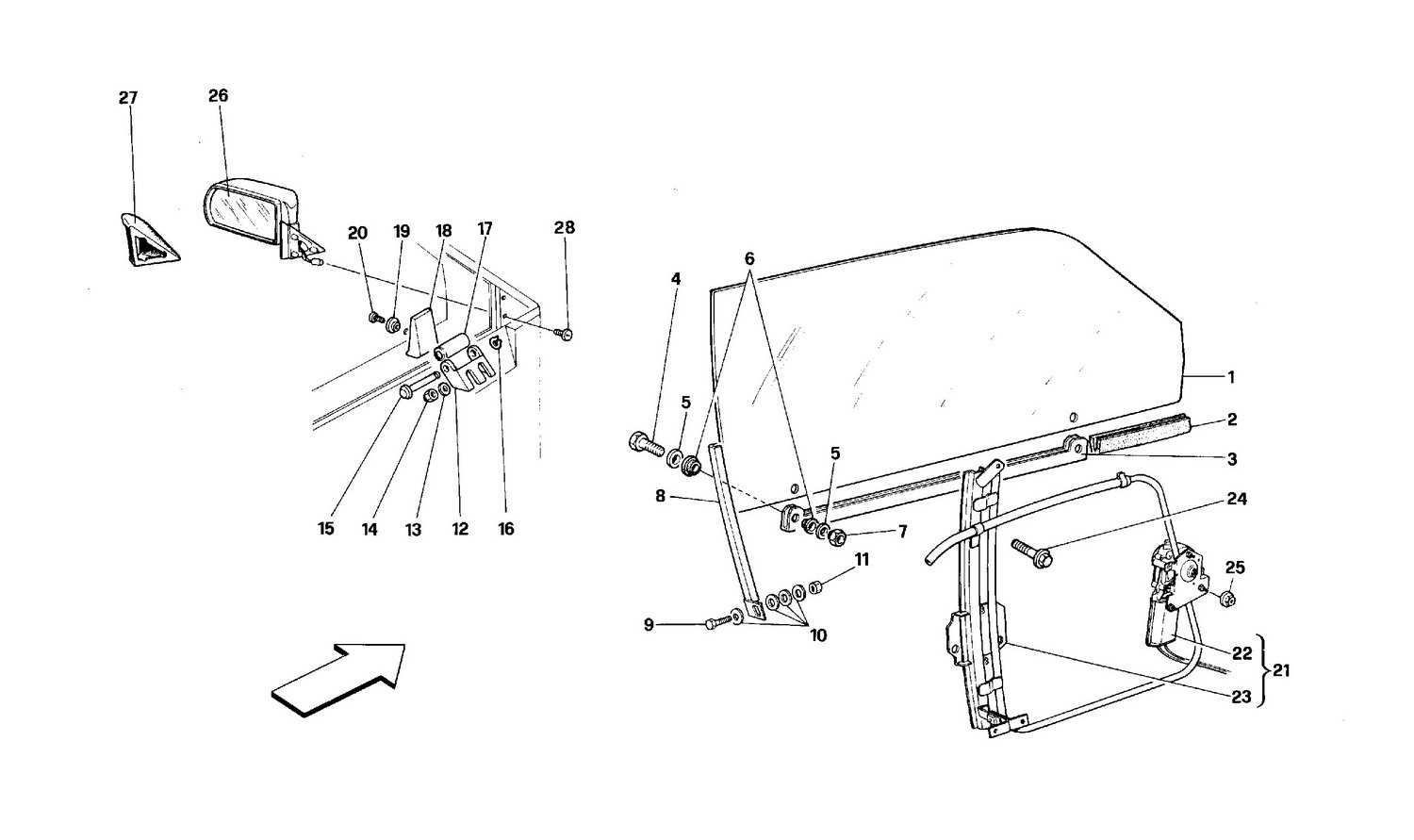

Schematic: Doors - Coupe - Glass Lifting Device And Rear Mirror
Loc
Part
Cond       Price
1
L.H. glass
61034200 (1) Full qty
1
R.H. glass
61034100 (1) Full qty
2
Gasket
62301800 (2) Full qty
3
L.H. glass support
62301400 (1) Full qty
3
R.H. glass support
62301300 (1) Full qty
4
Screw
10902421 (4) Full qty
5
Flat Washer
12643701 (8) Full qty
6
Bush
50086909 (8) Full qty
7
Nut
12575411 (4) Full qty
8
L.H. glass guide
60614500 (1) Full qty
8
R.H. glass guide
60614400 (1) Full qty
9
Screw
10902411 (2) Full qty
10
Flat Washer
12643701 (8) Full qty
11
Nut
13832101 (2) Full qty
12
Bracket
61111900 (2) Full qty
13
Washer
12638101 (4) Full qty
14
Nut
12574121 (4) Full qty
15
Pin
61112000 (2) Full qty
16
Elaster spring
11065376 (2) Full qty
17
Roller
61111700 (2) Full qty
18
Slope guiding glass roller
61038000 (2) Full qty
19
Washer
61037900 (2) Full qty
20
Screw
15687270 (2) Full qty
21
L.H. glass lifting assembly an…
62302000 (1) Full qty
21
Used       Price on Enquiry
62301900 (1) Full qty
EL99678u
22
L.H. engine
62302200 (1) Full qty
22
New       Price on Enquiry
62302100 (1) Full qty
EL11622n
22
Used       Price on Enquiry
62302100 (1) Full qty
EL11622u
23
L.H. glass lifting guide
62302400 (1) Full qty
23
R.H. glass lifting guide
62302300 (1) Full qty
24
Screw
13836371 (10) Full qty
25
Nut
13832101 (6) Full qty
26
L.H. mirror
61090000 (1) Full qty
26
L.H. mirror
61182300 (1) Full qty
26
R.H. mirror
61181100 (1) Full qty
26
R.H. mirror
61367700 (1) Full qty
26
R.H. mirror
61182500 (1) Full qty
27
L.H. mirror covering
61080500 (1) Full qty
27
L.H. mirror covering
61182400 (1) Full qty
27
R.H. mirror covering
61181200 (1) Full qty
27
R.H. mirror covering
61182600 (1) Full qty
28
Screw
61182700 (6) Full qty
