Inner Elements - Rear Part -Cabriolet-

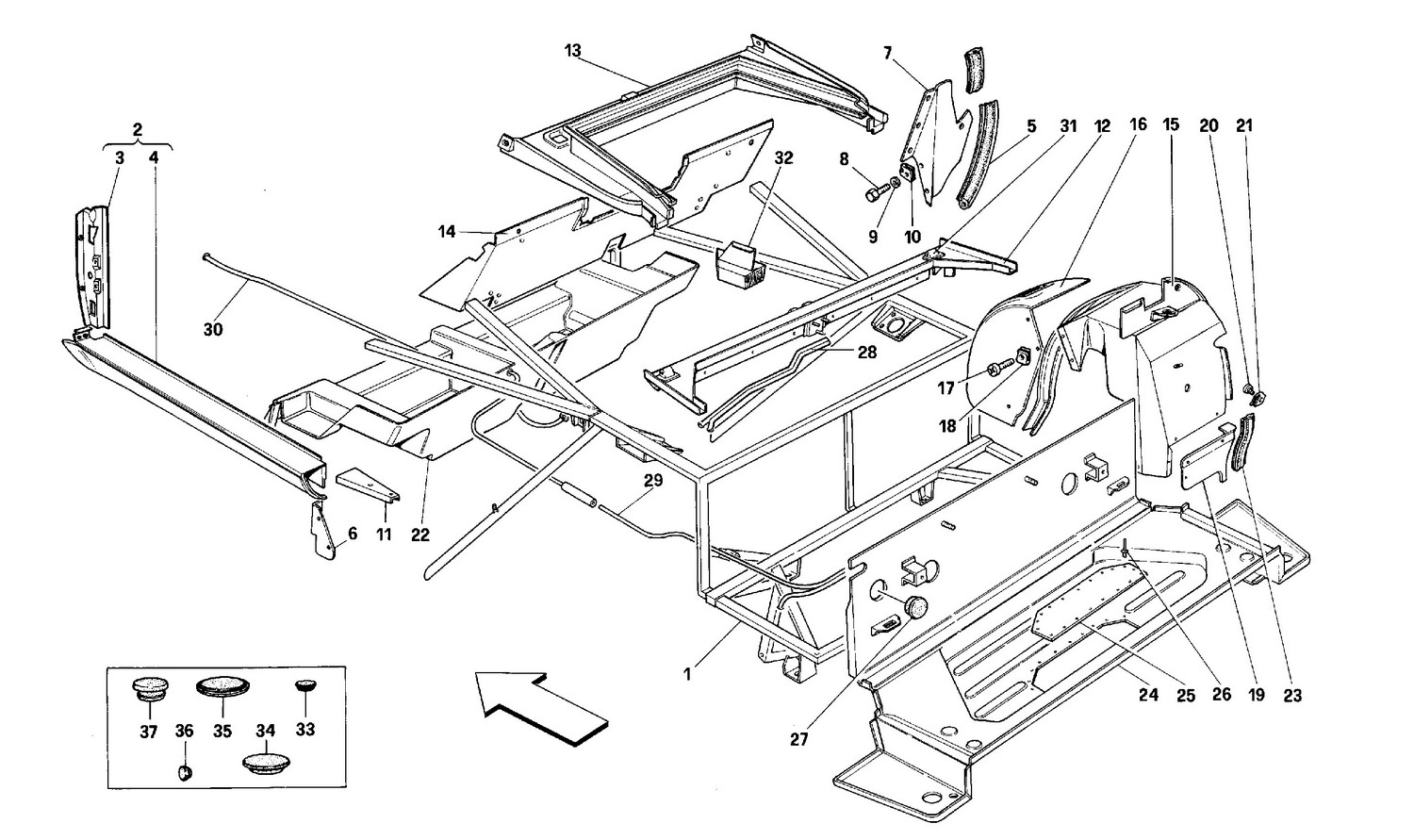

Schematic: Inner Elements - Rear Part -Cabriolet-
Schematic: Inner Elements - Rear Part -Cabriolet-
Loc
Part
Cond       Price
1
Rear frame
142184 (1) Full qty
1
Rear frame
147216 (1) Full qty
1
Rear frame
142184 (1) Full qty
1
Rear frame
147941 (1) Full qty
1
Rear frame
147189 (1) Full qty
1
Rear frame
146457 (1) Full qty
1
Rear frame
146427 (1) Full qty
2
L.H. door opening
62658500 (1) Full qty
2
R.H. door opening
62658400 (1) Full qty
3
L.H. seat for door hinge
62534200 (1) Full qty
3
R.H. seat for door hinge
62534100 (1) Full qty
4
Nut
- (0) Full qty
5
Gasket
61303400 (2) Full qty
6
L.H. lower sheet
62830200 (1) Full qty
6
R.H. lower sheet
62670000 (1) Full qty
7
R.H. shield panel
62668100 (1) Full qty
7
L.H. shield panel
62680700 (1) Full qty
7
L.H. shield panel
62851100 (1) Full qty
8
Screw
15924806 (12) Full qty
9
Flat Washer
12643701 (12) Full qty
10
Spring
14189776 (12) Full qty
11
Support for L.H. rear body sid…
136757 (1) Full qty
11
Support for L.H. rear body sid…
143946 (1) Full qty
11
Support for R.H. rear body sid…
136756 (1) Full qty
11
Support for R.H. rear body sid…
143945 (1) Full qty
12
Union between luggage room and…
61869200 (1) Full qty
13
Seat for top
62669300 (1) Full qty
13
Seat for top
63521700 (1) Full qty
13
Seat for top
63228100 (1) Full qty
14
Shield panel between passenger…
62669900 (1) Full qty
14
Shield panel between passenger…
62918900 (1) Full qty
15
R.H. rear wheelhouse
62637500 (1) Full qty
15
R.H. rear wheelhouse
62822700 (1) Full qty
15
L.H. rear wheelhouse
62637600 (1) Full qty
15
L.H. rear wheelhouse
62916200 (1) Full qty
16
Front section for R.H.
62608500 (1) Full qty
16
Front section for L.H.
62608600 (1) Full qty
17
Screw
15903802 (18) Full qty
18
Clip
60517200 (18) Full qty
19
R.H. rear gravel
61816200 (1) Full qty
19
L.H. rear gravel
61816100 (1) Full qty
20
Screw
15688078 (6) Full qty
21
Spring
40136707 (6) Full qty
22
Housing for rear seats
62667600 (1) Full qty
22
Housing for rear seats
62875400 (1) Full qty
23
Gasket
61816300 (2) Full qty
24
Vertical panel and luggage bot…
62839000 (1) Full qty
24
Vertical panel and luggage bot…
62919000 (1) Full qty
25
Luggage bottom cover
60810000 (1) Full qty
26
Rivet
60565600 (12) Full qty
27
Plug
14507387 (1) Full qty
28
Cable for engine bonnet
61307200 (1) Full qty
29
Cable duct for trunk bonnet
61221100 (1) Full qty
29
Cable duct for trunk bonnet
61436600 (1) Full qty
30
Front cable duct for trunk bon…
61344700 (1) Full qty
31
Fixed hinge for trunk bonnet
60523700 (2) Full qty
32
R.H. wood stopper
61292800 (1) Full qty
32
L.H. wood stopper
61292900 (1) Full qty
33
Plug to close EDP holes on the…
112934 (6) Full qty
34
Plug to close EDP hole underfr…
60659400 (2) Full qty
34
Plug to close EDP hole underfr…
60659400 (6) Full qty
35
Plug to close hole trunk room
14507187 (4) Full qty
36
Plug to close hole switch encl…
14506587 (2) Full qty
37
Plug to close hole under frame…
62446300 (4) Full qty
