Inner Elements - Rear Part -Coup

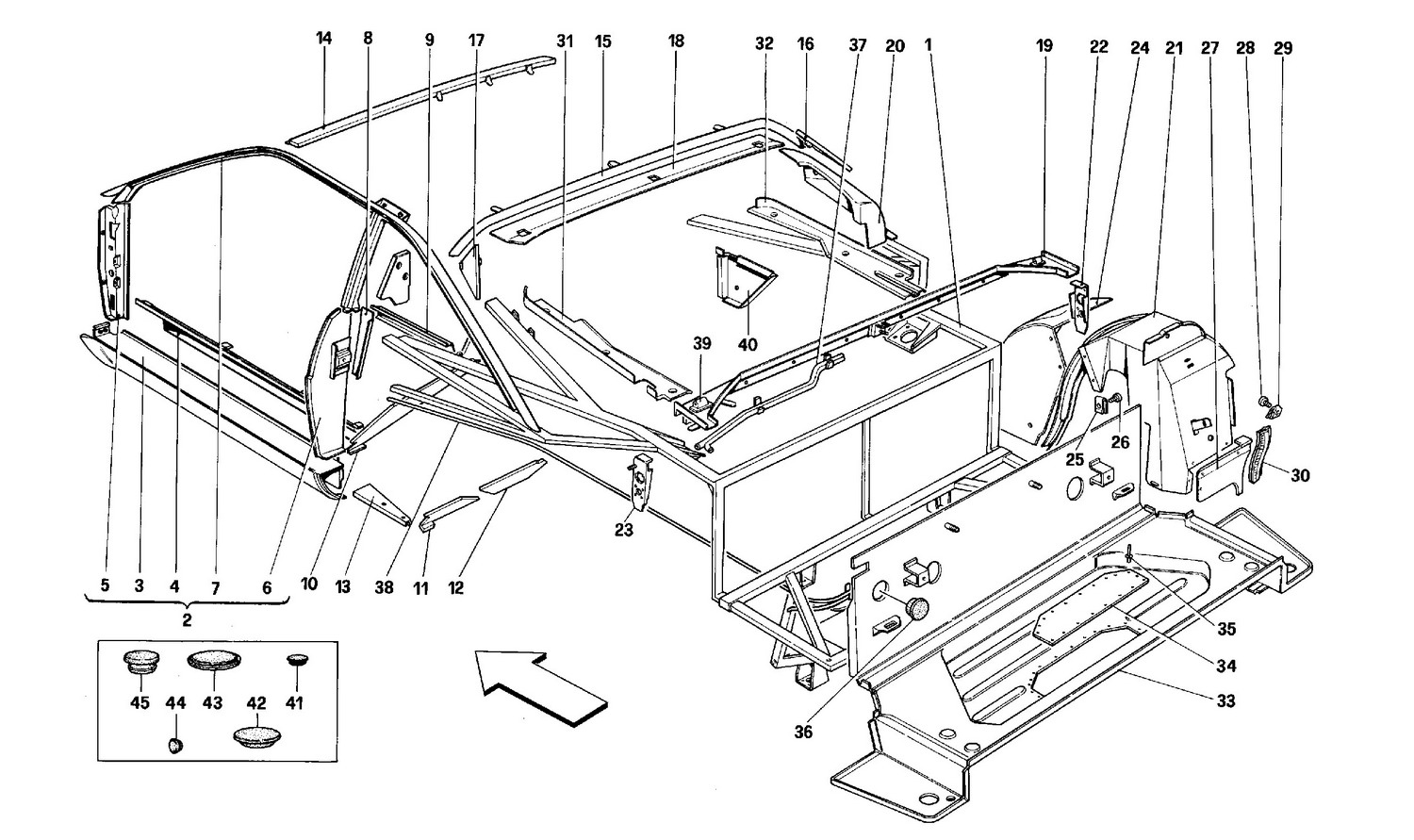

Schematic: Inner Elements - Rear Part -Coup
Loc
Part
Cond       Price
1
Rear frame
142184 (1) Full qty
1
Rear frame
147231 (1) Full qty
1
Rear frame
147392 (1) Full qty
1
Rear frame
146411 (1) Full qty
1
Rear frame
146485 (1) Full qty
1
Rear frame
147306 (1) Full qty
2
L.H. door opening
62588400 (1) Full qty
2
L.H. door opening
62621500 (1) Full qty
2
R.H. door opening
62588500 (1) Full qty
2
R.H. door opening
62621600 (1) Full qty
3
Nut
- (0) Full qty
4
Inner L.H. covering
61082600 (1) Full qty
4
Inner R.H. covering
60602800 (1) Full qty
5
L.H. seat for door hinge
62534200 (1) Full qty
5
R.H. seat for door hinge
62534100 (1) Full qty
6
L.H. post. for rear fender
62533700 (1) Full qty
6
R.H. post. for rear fender
62533500 (1) Full qty
7
L.H. rail
60932200 (1) Full qty
7
L.H. rail
60998600 (1) Full qty
7
R.H. rail
60944300 (1) Full qty
7
R.H. rail
60998500 (1) Full qty
7
R.H. rail
60932100 (1) Full qty
8
Stiffening angle piece for L.H…
60658300 (1) Full qty
8
Stiffening angle piece for R.H…
60658400 (1) Full qty
9
Lower stiffening for rear L.H.…
62605300 (1) Full qty
9
Lower stiffening for rear R.H.…
62605200 (1) Full qty
10
L.H. stiffening
62600400 (1) Full qty
10
R.H. stiffening
62600300 (1) Full qty
11
Lower reinforce L.H. rear fend…
62843000 (1) Full qty
11
Lower reinforce R.H. rear fend…
62842800 (1) Full qty
12
Upper reinforce L.H. rear fend…
62843200 (1) Full qty
12
Upper reinforce R.H. rear fend…
62843100 (1) Full qty
13
Support for L.H. rear body sid…
136757 (1) Full qty
13
Support for L.H. rear body sid…
143946 (1) Full qty
13
Support for R.H. rear body sid…
136756 (1) Full qty
13
Support for R.H. rear body sid…
143945 (1) Full qty
14
Front rib
60723200 (1) Full qty
15
Rear rib
61093400 (1) Full qty
15
Rear rib
60828700 (1) Full qty
16
Support for rear R.H. belts
60781000 (1) Full qty
16
Support for rear R.H. belts
60910300 (1) Full qty
17
Support for rear L.H. belts
60781100 (1) Full qty
17
Support for rear L.H. belts
60910400 (1) Full qty
18
Botton plate for rear rib
60616400 (1) Full qty
18
Botton plate for rear rib
61266000 (1) Full qty
19
Union between luggage room and…
62481700 (1) Full qty
20
R.H. covering over rear window…
60951500 (1) Full qty
20
R.H. covering over rear window…
61030300 (1) Full qty
20
L.H. covering over rear window…
60951600 (1) Full qty
20
L.H. covering over rear window…
61030400 (1) Full qty
21
R.H. rear wheelhouse
62566500 (1) Full qty
21
R.H. rear wheelhouse
62822300 (1) Full qty
21
L.H. rear wheelhouse
62566600 (1) Full qty
21
L.H. rear wheelhouse
62632700 (1) Full qty
21
L.H. rear wheelhouse
63945500 (1) Full qty
22
R.H. bracket
62532900 (1) Full qty
23
L.H. bracket
62533000 (1) Full qty
24
Front section for R.H.
62608500 (1) Full qty
24
Front section for L.H.
62608600 (1) Full qty
25
Clip
60517200 (18) Full qty
26
Screw
15903802 (18) Full qty
27
R.H. rear gravel
61816200 (1) Full qty
27
L.H. rear gravel
61816100 (1) Full qty
28
Screw
15688078 (6) Full qty
29
Spring
40136707 (6) Full qty
30
Gasket
61816300 (2) Full qty
31
L.H. cover
62611900 (1) Full qty
32
R.H. cover
62617600 (1) Full qty
33
Vertical section bonnet and bo…
62637400 (1) Full qty
33
Vertical section bonnet and bo…
63325500 (1) Full qty
34
Luggage bottom cover
60810000 (1) Full qty
35
Rivet
60565600 (12) Full qty
36
Plug
14507387 (1) Full qty
37
Botton plate for rear rib
60787300 (1) Full qty
38
Cable duct for trunk bonnet
62619500 (1) Full qty
39
Fixed hinge for trunk bonnet
60523700 (2) Full qty
40
R.H. bracket for front belts r…
60622100 (1) Full qty
40
L.H. bracket for front belts r…
60622200 (1) Full qty
41
Plug to close EDP holes on the…
112934 (6) Full qty
42
Plug to close EDP hole underfr…
60659400 (2) Full qty
43
Plug to close hole trunk room
14507187 (4) Full qty
44
Plug to close hole switch encl…
14506587 (2) Full qty
45
Plug to close hole under frame…
62446300 (4) Full qty
