Fuel Pump And Pipes (Quattrovalvole)

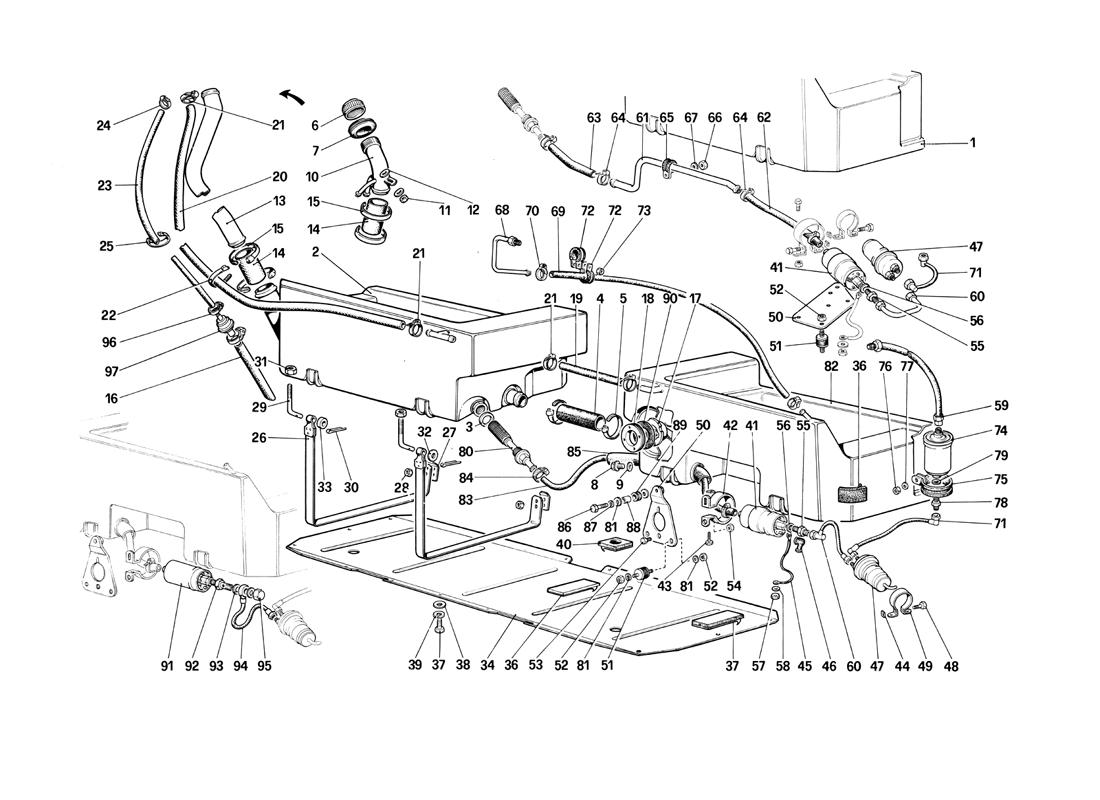

Schematic: Fuel Pump And Pipes (Quattrovalvole)
Loc
Part
Cond       Price
1
Right fuel tank
115663 (1) Full qty
2
Left fuel tank
115664 (1) Full qty
2
Left Fuel Tank
119069 (1) Full qty
3
Gasket for fuel filter
117884 (1) Full qty
4
Fuel Crossover Hose
116270 (1) Full qty
5
Clamp
12173890 (2) Full qty
6
Filler cap
113401 (1) Full qty
7
New       Price on Enquiry
101465 (1) Full qty
BW10224n
7
Fuel Filler Neck Seal
101465 (1) Full qty
8
New       Price on Enquiry
10300771 (1) Full qty
SU11702n
9
Gasket
10278650 (1) Full qty
10
Tank filler
116406 (1) Full qty
11
Dado autobloccante
12574221 (1) Full qty
12
Washer
109684 (2) Full qty
13
Pipe
116405 (1) Full qty
14
Sleeve
114278 (2) Full qty
15
New       £ 2.95
12174790 (6) Full qty
FU00141n
16
Pipe
116770 (1) Full qty
17
Control for fuel level gauge
116045 (1) Full qty
18
Ring nut fixing control of fue…
116012 (1) Full qty
19
Tank breathe pipe
114916 (1) Full qty
20
Tank breather pipe
116852 (1) Full qty
21
Clamp
12179590 (4) Full qty
22
Colson type clamp
105550 (1) Full qty
23
Pipe
119376 (1) Full qty
24
Clamp
12179090 (1) Full qty
25
Front Brake Caliper - Clamp Fo…
40135402 (5) Full qty
26
Strap securing fuel tank
115732 (4) Full qty
27
Small plate
115734 (4) Full qty
28
Nut
12575411 (8) Full qty
29
Tie rod for strap
12311271 (4) Full qty
30
Cotter pin
10796401 (4) Full qty
31
Selflocking nut
16104121 (4) Full qty
32
Washer
10519601 (2) Full qty
33
Spacer
13605911 (2) Full qty
34
Plate for tanks
116565 (1) Full qty
34
Protective plate for tanks
119182 (1) Full qty
35
Outer shim
116566 (4) Full qty
36
Rubber spacer
115330 (18) Full qty
37
Screw
10902121 (13) Full qty
38
Flat Washer
12643701 (13) Full qty
39
Washer
106850 (13) Full qty
40
Gasket
116585 (2) Full qty
41
Fuel Pump
113976 (1) Full qty
42
Pump retaining clamp
113673 (1) Full qty
43
Screw
10377311 (1) Full qty
44
Square nut
14089311 (2) Full qty
45
Earth cable
115153 (1) Full qty
46
New       Price on Enquiry
107003 (2) Full qty
EL99222n
47
Fuel Accumulator 0438170004
113978 (1) Full qty
48
Screw
10376111 (1) Full qty
49
Accumulator retaining clamp
113674 (1) Full qty
50
Support pump accumulator
115547 (1) Full qty
50
Support
119178 (1) Full qty
51
Fuel Pump Mounting
102947 (3) Full qty
51
New       Price on Enquiry
102947 (3) Full qty
GE00644n
52
Dado autobloccante
12574221 (3) Full qty
53
Screw
10902221 (4) Full qty
54
Nut
12574211 (4) Full qty
55
Union on delivery side
109797 (1) Full qty
56
Gasket
113910 (1) Full qty
57
Nut
New       Price on Enquiry
15896211 (1) Full qty
CH11996n
58
Washer
10571571 (1) Full qty
59
Pipe from filter to metering d…
115529 (1) Full qty
60
Pipe from pump to accumulator
115532 (1) Full qty
60
New       £ 49.50
119278 (1) Full qty
FU15681n
60
Fuel Pipe
119305 (1) Full qty
61
Pipe
116539 (1) Full qty
62
Sleeve
116777 (1) Full qty
63
Sleeve
116776 (1) Full qty
64
Clamp
12179590 (4) Full qty
65
Small bracket with sheathing
10441590 (2) Full qty
66
Nut
12574211 (2) Full qty
67
Washer
10519401 (2) Full qty
68
Fuel reflux pipe
115543 (1) Full qty
69
New       £ 10.75
116767 (1) Full qty
FT10099n
70
Clamp
12179490 (2) Full qty
71
Pipe from accumulator to filte…
117952 (1) Full qty
72
Clamp
10441190 (4) Full qty
73
Nut
12574211 (2) Full qty
74
Fuel Filter 71051
115738 (1) Full qty
75
Sheathed bracket for filter
115140 (1) Full qty
76
Nut
16104111 (1) Full qty
77
Washer
13550301 (1) Full qty
78
Union on delivery side
109797 (1) Full qty
79
Gasket
113910 (1) Full qty
80
Filter on tank
116404 (1) Full qty
81
Flat Washer
12643701 (6) Full qty
82
Right fuel tank
119068 (1) Full qty
83
Sleeve, pump side
119184 (1) Full qty
84
Clamp
12179590 (2) Full qty
85
Protection pipe
119183 (1) Full qty
86
Screw
10902621 (1) Full qty
87
Washer
106850 (1) Full qty
88
Spacer
103550 (1) Full qty
89
New       Price on Enquiry
103549 (1) Full qty
AC00210n
90
Gasket
116792 (1) Full qty
91
Fuel Pump
121727 (1) Full qty
92
Fuel Pump Check Valve
120098 (1) Full qty
93
New       £ 1.28
11270160 (2) Full qty
FU15801n
94
Pipe from to accumulator
123022 (1) Full qty
95
Drain plug
10183217 (1) Full qty
96
Clamp
12179490 (2) Full qty
97
Tank ventilation valve
120444 (1) Full qty
