Electric Generating System - (Engine With Single Belt)

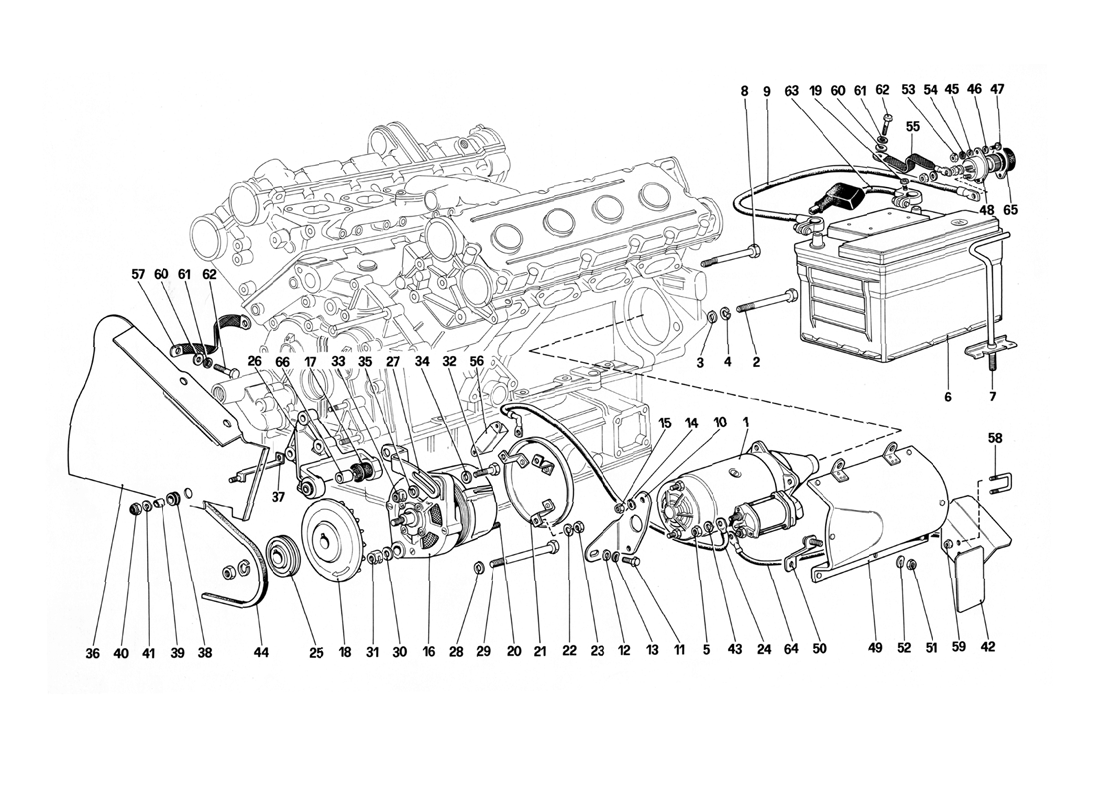

Schematic: Electric Generating System - (Engine With Single Belt)
Loc
Part
Cond       Price
1
Starter motor
103959 (1) Full qty
1
Starter motor
106966 (2) Full qty
2
Fixing bolt
16045031 (2) Full qty
3
Washer
11198071 (3) Full qty
4
Flat washer
10519621 (3) Full qty
5
Nut
16100811 (1) Full qty
6
1 2 V - 66 Ah - 300 A battery
118060 (1) Full qty
7
Bolt assembly holding battery
60641100 (1) Full qty
8
Fixing bolt
116751 (1) Full qty
9
Cable from battery to battery …
116754 (1) Full qty
10
Support bracket
107129 (1) Full qty
11
Bolt
15970721 (1) Full qty
12
Washer
105391 (1) Full qty
13
Washer
106853 (1) Full qty
14
Washer
106850 (2) Full qty
15
Nut
New       Price on Enquiry
15896211 (2) Full qty
CH11996n
16
New       £ 123.75
117967 (1) Full qty
EL11694n
17
Elastic bush
117969 (2) Full qty
18
Fan
117968 (1) Full qty
19
Nut
12575411 (1) Full qty
20
Stud
11499921 (3) Full qty
21
Protection plate
117978 (1) Full qty
22
Washer
106850 (3) Full qty
23
Nut
15896221 (3) Full qty
24
Generator connecting cables
118068 (1) Full qty
25
Pulley
117938 (1) Full qty
25
Pulley
122013 (1) Full qty
26
Support for alternator
117924 (1) Full qty
27
Plate for regulation
117937 (1) Full qty
28
Washer
13550421 (1) Full qty
29
Bolt
15972221 (1) Full qty
29
Bolt
15972921 (1) Full qty
30
Washer
12601471 (1) Full qty
31
Nut
117702 (1) Full qty
32
Screw
11343821 (1) Full qty
33
Nut
117702 (1) Full qty
34
Washer
13550421 (1) Full qty
35
Washer
105391 (1) Full qty
36
Protection plate for generator…
121464 (1) Full qty
37
Bracket
121467 (1) Full qty
38
New       Price on Enquiry
103549 (1) Full qty
AC00210n
39
Spacer
103550 (1) Full qty
40
Nut
12575411 (1) Full qty
41
Flat Washer
12643701 (1) Full qty
42
Metal shield for protection
120451 (1) Full qty
43
Washer
10516670 (1) Full qty
44
New       Price on Enquiry
107971 (1) Full qty
GE00570n
44
New       Price on Enquiry
121760 (1) Full qty
GE00574n
45
Washer
14498501 (1) Full qty
46
Washer
12639401 (2) Full qty
47
Screw
10373411 (2) Full qty
48
Battery switch
116752 (1) Full qty
49
Protection
107038 (1) Full qty
50
Support
107039 (1) Full qty
51
Nut
New       Price on Enquiry
15896211 (1) Full qty
CH11996n
52
Flat Washer
12643701 (1) Full qty
53
Nut
16101711 (2) Full qty
54
Washer
10615171 (2) Full qty
55
Battery disconnection device c…
116753 (1) Full qty
56
Voltage regulator
107396 (1) Full qty
57
Earthing plait for engine
115668 (1) Full qty
58
Pos. cable fastening U bolt
116591 (1) Full qty
59
Nut securing batt. disconn. sw…
12574011 (2) Full qty
60
Washer
10519601 (2) Full qty
61
Washer
10615679 (2) Full qty
62
Screw
16043121 (2) Full qty
63
Cable from battery to connecto…
116414 (1) Full qty
64
Cable from starter to engine c…
116415 (1) Full qty
65
Cover for switch
119441 (1) Full qty
66
Bush
124678 (1) Full qty
