Brake Hydraulic System

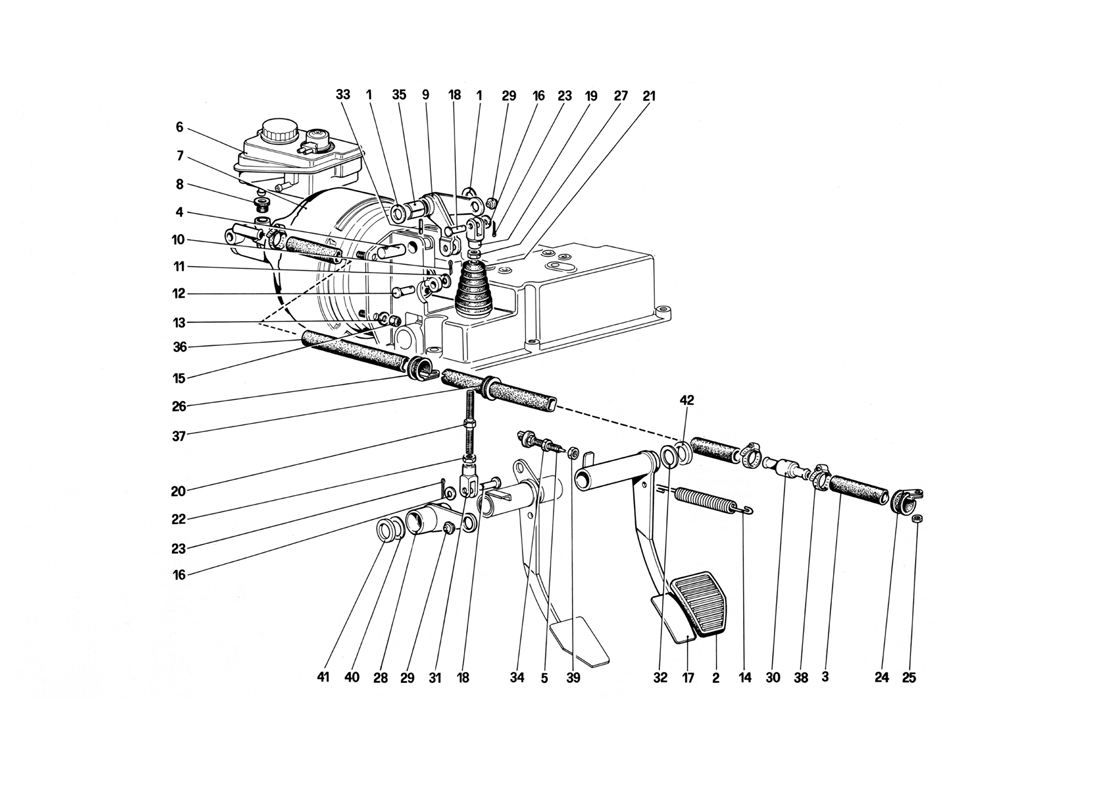

Schematic: Brake Hydraulic System
Loc
Part
Cond       Price
1
Shim
112126 (2) Full qty
2
New       £ 16.46
106950 (1) Full qty
PB14058n
3
Pipe from 3 way union to valve…
120232 (1) Full qty
4
Lever supporting pin
112165 (1) Full qty
5
New       Price on Enquiry
119439 (1) Full qty
EL99434n
6
Oil reservoir
119566 (1) Full qty
6
Brake Fluid Reservoir
108802 (1) Full qty
6
Brake Fluid Reservoir
108802 (1) Full qty
7
Brake booster
111338 (1) Full qty
8
New       Price on Enquiry
175189 (1) Full qty
BS00881n
9
Brake booster lever
112158 (1) Full qty
10
Cotter pin
10796401 (1) Full qty
11
Washer
10730521 (1) Full qty
12
Pin
10033411 (1) Full qty
13
Washer
12601371 (4) Full qty
14
New       Price on Enquiry
104895 (1) Full qty
PB14046n
15
Nut
16104411 (4) Full qty
16
Washer
103167 (2) Full qty
17
Brake pedal
120074 (1) Full qty
18
Pin
10033411 (2) Full qty
19
Fork, R.H. thread
104910 (1) Full qty
20
Tie rod
112178 (1) Full qty
21
Bellows
112157 (1) Full qty
22
Nut, R.H. thread
103157 (1) Full qty
23
Cotter pin
10796401 (2) Full qty
24
Pipe supporting clamp
106195 (1) Full qty
25
Nut
12574211 (1) Full qty
26
Clamp ? 22 mm
10450790 (1) Full qty
27
Nut, L.H. thread
103160 (1) Full qty
28
Brake lever
112156 (1) Full qty
29
New       Price on Enquiry
100424 (1) Full qty
BS00772n
30
No return valve
101538 (1) Full qty
31
Fork, L.H. thread
104911 (1) Full qty
32
Shim 0,9 mm.
112127 (2) Full qty
32
Shim 1,0 mm.
112128 (2) Full qty
32
Shim 1,1 mm.
112129 (2) Full qty
32
Shim 1,2 mm.
112130 (2) Full qty
32
Shim 1,3 mm.
112131 (2) Full qty
33
Lock pin
114623 (1) Full qty
34
Nut
10791211 (1) Full qty
35
Bush
112161 (1) Full qty
36
Hose from brake booster to val…
120233 (1) Full qty
37
Cable grommet
10396880 (1) Full qty
38
Clamp
12179590 (8) Full qty
39
Shoch absorbing nut
101662 (1) Full qty
40
Washer
112125 (1) Full qty
41
Shim
124756 (1) Full qty
42
Shim
124757 (1) Full qty
