Clutch And Controls

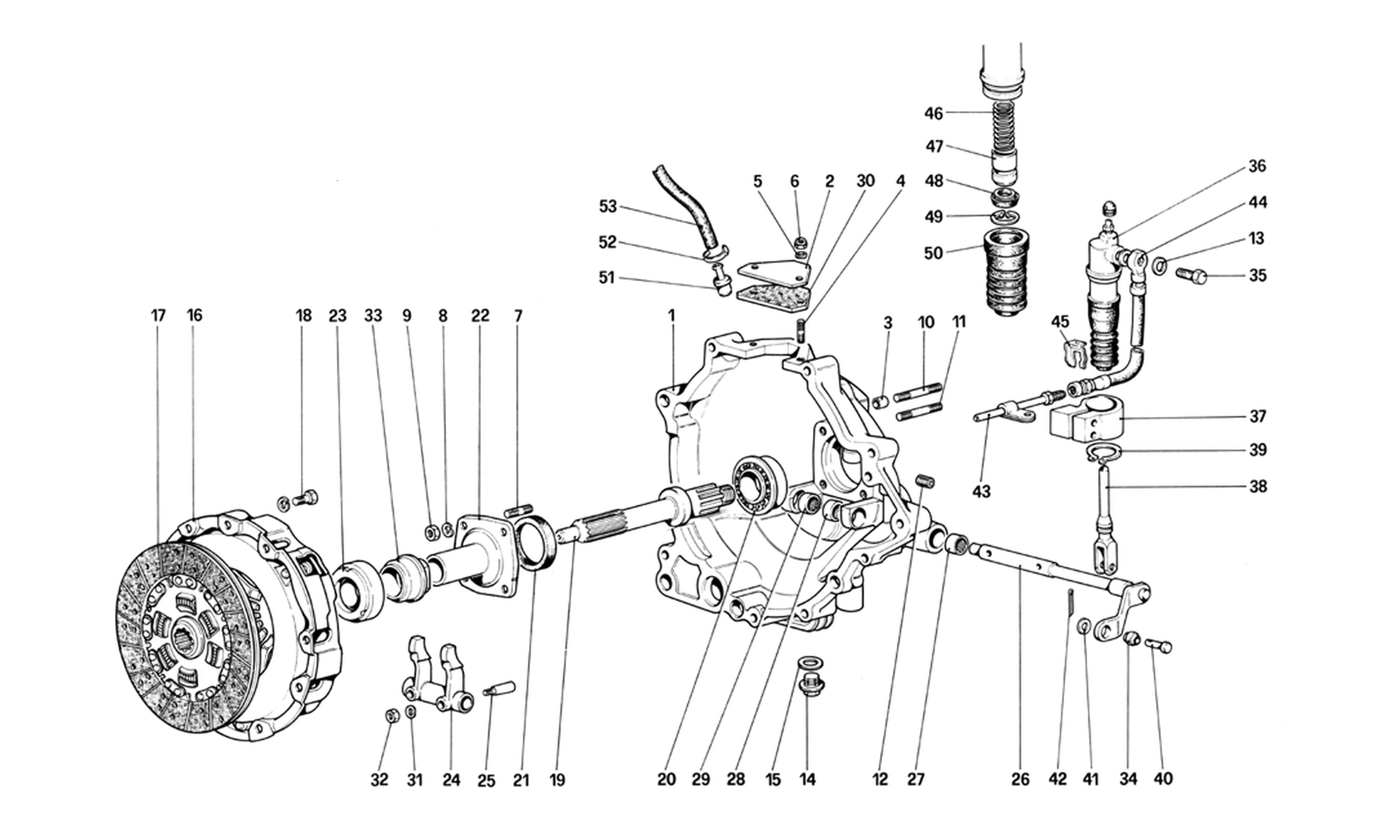

Schematic: Clutch And Controls
Loc
Part
Cond       Price
1
Clutch housing, complete
118069 (1) Full qty
1
Clutch housing
112391 (1) Full qty
2
Inspection centering dowel
109404 (1) Full qty
3
Dowel
102704 (2) Full qty
4
Probes securing stud
13539021 (2) Full qty
5
Washer
12601171 (2) Full qty
6
Nut
15896411 (2) Full qty
7
Stud
13516521 (4) Full qty
8
Washer
106852 (4) Full qty
9
New       Price on Enquiry
16102311 (4) Full qty
BS00703n
10
New       £ 12.07
13517621 (2) Full qty
GB10575n
11
Stud
13517521 (8) Full qty
12
Plug
14326150 (1) Full qty
13
New       Price on Enquiry
10298460 (2) Full qty
EX10416n
14
Oil drain plug
14326540 (1) Full qty
15
Gasket
10279560 (1) Full qty
15
Clutch 9.5in
121478 (1) Full qty
16
Clutch Pressure Plate V8
121562 (1) Full qty
17
Clutch disc
120482 (1) Full qty
18
Bolt
13825821 (6) Full qty
19
Shaft
109400 (1) Full qty
20
New       Price on Enquiry
103042 (1) Full qty
GB10260n
21
Off retainer
110314 (1) Full qty
22
Flange with sleeve
112399 (1) Full qty
23
New       Price on Enquiry
100849 (1) Full qty
CL11616n
24
Clutch control lever
108428 (1) Full qty
25
Pin
108429 (2) Full qty
26
Clutch control lever and shaft…
112398 (1) Full qty
27
Outer bush
107924 (1) Full qty
28
Intermediate bush
107925 (1) Full qty
29
Inner bush
107926 (1) Full qty
30
Gasket for inspection cover
109405 (1) Full qty
31
Washer
108430 (2) Full qty
32
Nut
12574121 (2) Full qty
33
Bush for bearing
116326 (1) Full qty
34
Bail joint
100860 (1) Full qty
35
Union
108868 (1) Full qty
36
Clutch Slave Cylinder
107867 (1) Full qty
37
Support
112393 (1) Full qty
38
Push rod
109527 (1) Full qty
39
Stop ring
11068475 (1) Full qty
40
Clevis Pin
103218 (1) Full qty
41
Washer
12639701 (1) Full qty
42
Split pin
10734201 (1) Full qty
43
Tube
112895 (1) Full qty
44
Clutch Hose
108865 (1) Full qty
45
Pipe securing plate
110810 (1) Full qty
46
Spring
111273 (1) Full qty
47
Small cylinder.
111274 (1) Full qty
48
Seal ring
111275 (1) Full qty
49
Seeger ring
111277 (1) Full qty
50
Boot
111276 (1) Full qty
51
Union for breather pipe
115463 (1) Full qty
52
Clamp
102604 (1) Full qty
53
Breather pipe
115366 (1) Full qty
