Heating System

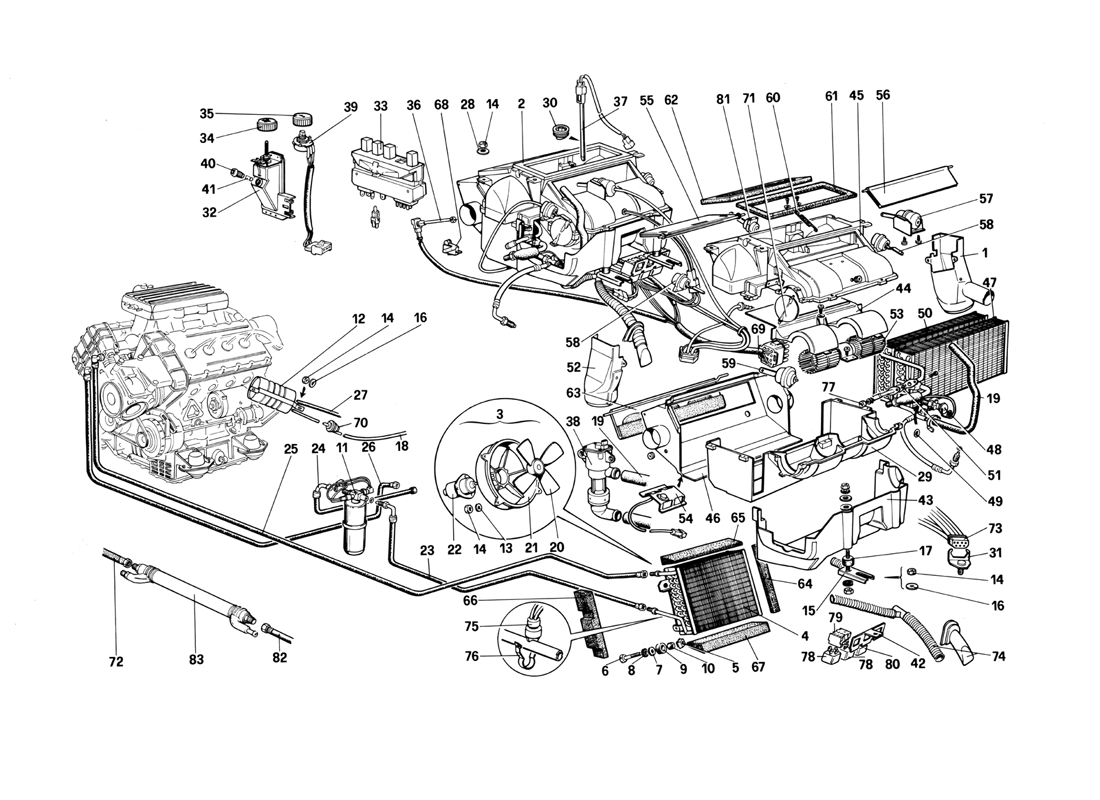

Schematic: Heating System
Loc
Part
Cond       Price
1
L.H. conveyor
61425900 (1) Full qty
1
L.H. conveyor
61426300 (1) Full qty
2
Air conditioning, complete
61039900 (1) Full qty
2
Air conditioning, complete
61129600 (1) Full qty
3
Fan assembly A.C.
61432000 (1) Full qty
4
A.C. condenser
60649100 (1) Full qty
5
Caged nut
60659100 (4) Full qty
6
Screw
10902611 (3) Full qty
7
Flat Washer
12643701 (4) Full qty
8
Washer
10615471 (4) Full qty
9
New       Price on Enquiry
103549 (4) Full qty
AC00210n
10
Spacer
103550 (4) Full qty
11
Dryer filter
114730 (1) Full qty
12
Vacuum reservoir
60662500 (1) Full qty
12
Vacuum reservoir complete with…
61642700 (1) Full qty
13
Spring washer
12644401 (4) Full qty
14
Nut
12574211 (10) Full qty
15
Air conditioner assembly lower…
60726800 (2) Full qty
16
Washer
10519401 (4) Full qty
17
Fuel Pump Mounting
102947 (2) Full qty
17
New       Price on Enquiry
102947 (2) Full qty
GE00644n
18
Pipe
61132000 (1) Full qty
19
Pipe
61084700 (1) Full qty
19
Pipe
61150000 (1) Full qty
20
New       Price on Enquiry
122953 (1) Full qty
CS11850n
21
Air conveyor
60870300 (1) Full qty
22
Motor
123136 (1) Full qty
23
Pipe condenser - dryer
61369300 (1) Full qty
23
Condenser-cleaner pipe
61369800 (1) Full qty
24
Pipe, dryer - evaporator
61369400 (1) Full qty
25
Pipe, ASPERA compressor - cond…
61369500 (1) Full qty
25
Pipe, Sankyo compressor - cond…
61607900 (1) Full qty
25
Pipe, compressor - condensor
61370100 (1) Full qty
26
Pipe, evaporator - compressor
60724800 (1) Full qty
26
Pipe, evaporator - ASPERA comp…
61369600 (1) Full qty
26
Pipe, evaporator - Sankyo comp…
61607700 (1) Full qty
26
Pipe, evaporator - compressor
61179800 (1) Full qty
26
Pipe, evaporator - ASPERA comp…
61369900 (1) Full qty
26
Pipe, evaporator - Sankyo comp…
61607800 (1) Full qty
26
Pipe, evaporator - Sankyo comp…
61608000 (1) Full qty
26
Pipe, evaporator - ASPERA comp…
61370200 (1) Full qty
26
Pipe, evaporator - Sankyo - co…
61608100 (1) Full qty
26
Pipe, evaporator - ASPERA - co…
61601100 (1) Full qty
27
Pipe, union to empty reservoir…
118502 (1) Full qty
28
Washer
12640601 (4) Full qty
29
Case lower section
60929100 (1) Full qty
29
Case lower section
60941800 (1) Full qty
30
Gasket
61086200 (1) Full qty
31
Bracket
61079900 (1) Full qty
32
Speed control unit
61112300 (1) Full qty
33
Switch panel
61078600 (1) Full qty
33
Switch panel
61131300 (1) Full qty
34
Knob for speed variator
61112400 (1) Full qty
35
Potentiometer knob
61112500 (1) Full qty
36
Air temperature sensor
61079600 (1) Full qty
37
Sensor
61079500 (1) Full qty
38
Electromagnetic valve
61079000 (1) Full qty
39
Potentiometer for A.C. tempera…
61078700 (1) Full qty
40
Fuse holder
60928800 (1) Full qty
41
Fuse
60928900 (1) Full qty
42
Bracket
61430800 (1) Full qty
43
Low box
61136700 (1) Full qty
44
Case intermediate section
60929200 (1) Full qty
44
Case intermediate section
60941900 (1) Full qty
45
Case upper section
60929300 (1) Full qty
46
Case front section
60929400 (1) Full qty
47
Evaporator unit
60929500 (1) Full qty
47
Evaporator unit
60942000 (1) Full qty
48
Expansion valve
60929600 (1) Full qty
49
Seal ring
60929700 (1) Full qty
50
Heater
60929800 (1) Full qty
50
Heater
60942100 (1) Full qty
51
Gasket
60930000 (1) Full qty
52
R.H. conveyor
61425800 (1) Full qty
53
Ventilator unit
60930100 (1) Full qty
54
Power transistor
60930200 (1) Full qty
55
Upper cover
60930300 (1) Full qty
56
Rear cover
60930400 (1) Full qty
57
Actuator
60930500 (1) Full qty
58
Side actuator
60930600 (2) Full qty
59
Actuator for defroster cover
60930700 (1) Full qty
60
Return spring for rear cover
60930800 (1) Full qty
61
Gasket
60930900 (1) Full qty
62
Gasket
60931000 (1) Full qty
63
Front cover with gasket
60931100 (1) Full qty
64
L.H. gasket
60729400 (1) Full qty
65
Upper gasket
60729200 (1) Full qty
66
R.H. gasket
60729300 (1) Full qty
67
Lower gasket
60729100 (1) Full qty
68
Microswitch
60931200 (1) Full qty
69
Cable assembly
60931300 (1) Full qty
70
Single-action valve
61653800 (1) Full qty
71
Side cover
60931500 (2) Full qty
72
Pipe, heat exchanger to compre…
61317200 (1) Full qty
73
Connection for vacuum pipes
61112200 (1) Full qty
74
Pipe for condensate vent
61136600 (1) Full qty
75
Bimetallic thermocontact
61047900 (1) Full qty
76
Clip
60815000 (1) Full qty
77
Nut
New       Price on Enquiry
15896211 (2) Full qty
CH11996n
78
New       £ 21.45
40130007 (2) Full qty
EL11618n
79
Block
61430700 (3) Full qty
80
New       Price on Enquiry
40130106 (1) Full qty
EL11620n
80
New       Price on Enquiry
40130106 (1) Full qty
EL11704n
81
Interior actuator
61268000 (1) Full qty
82
Pipe, evaporator - heat exchan…
61261500 (1) Full qty
82
Pipe, evaporator - heat exchan…
61370000 (1) Full qty
83
Heat exchange
120648 (1) Full qty
83
Heat exchange
120920 (1) Full qty
84
New       Price on Enquiry
103039 (2) Full qty
GE00264n
