Doors - Quattrovalvole

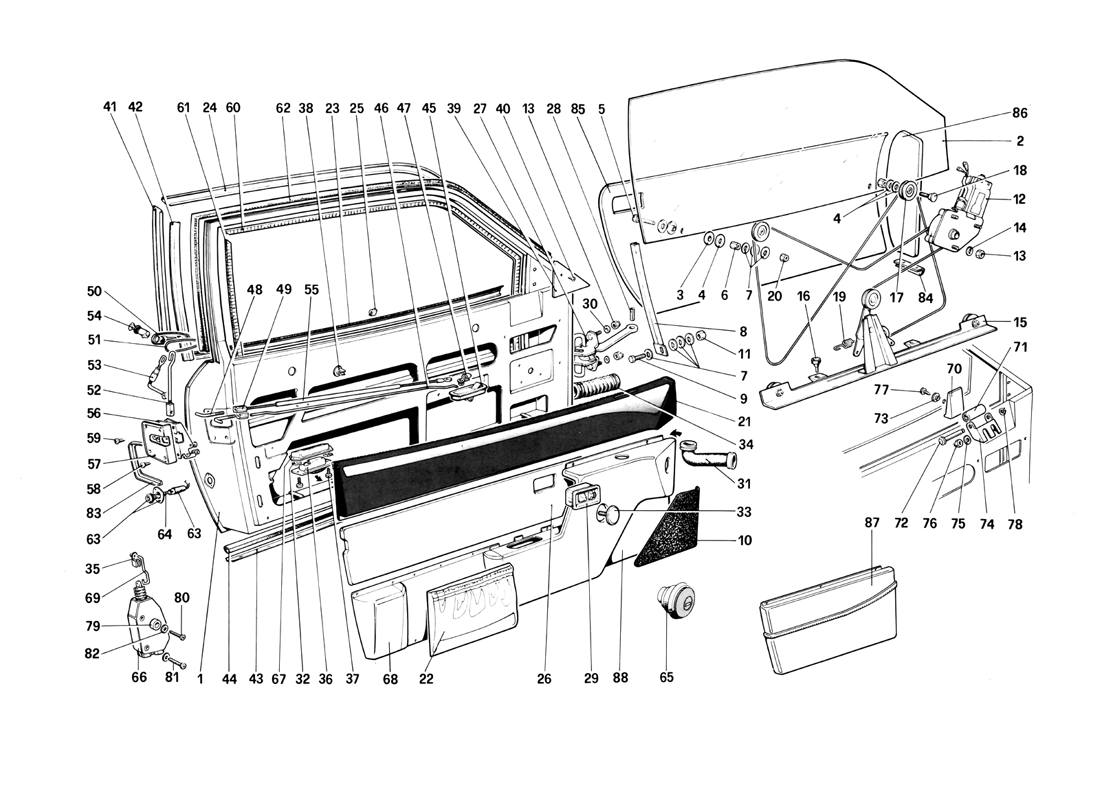

Schematic: Doors - Quattrovalvole
Loc
Part
Cond       Price
1
R.H. door
61273700 (1) Full qty
1
L.H. door
61273800 (1) Full qty
2
R.H. glass
61034100 (1) Full qty
2
R.H. glass
61162000 (1) Full qty
2
L.H. glass
61034200 (1) Full qty
2
L.H. glass
61162100 (1) Full qty
3
Bush
50086909 (8) Full qty
4
Washer
12640601 (16) Full qty
5
Screw
10902821 (4) Full qty
6
Spacer
60441508 (4) Full qty
7
Flat Washer
12643701 (36) Full qty
8
R.H. glass guide
60614400 (1) Full qty
8
L.H. glass guide
60614500 (1) Full qty
9
Screw
10902411 (2) Full qty
10
Moquette, right
60896600 (1) Full qty
10
Moquette, left
60896700 (1) Full qty
11
Nut
13832101 (2) Full qty
12
Right window regulator
60551700 (1) Full qty
12
Left window regulator
60551800 (1) Full qty
13
Nut
12574111 (10) Full qty
14
Washer
12638101 (6) Full qty
15
Lower crosspiece, right
60551900 (1) Full qty
15
Lower crosspiece, left
60552000 (1) Full qty
16
Rubber plug for stroke stop
40195703 (4) Full qty
17
Sheave
60056306 (8) Full qty
18
Pin for sheave
60078805 (8) Full qty
19
Spring
60687800 (2) Full qty
20
Nut
12575411 (18) Full qty
21
R.H. panel with covering
61117200 (1) Full qty
21
R.H. covering
60624400 (1) Full qty
21
L.H. panel with covering
61117300 (1) Full qty
21
L.H. covering
60624500 (1) Full qty
22
Pocket
60866800 (2) Full qty
23
R.H. molding
60635300 (1) Full qty
23
L.H. molding
60635400 (1) Full qty
24
R.H. upper frame
60636400 (1) Full qty
24
L.H. upper frame
60636500 (1) Full qty
25
Spring
4211210 (10) Full qty
26
R.H. panel with covering
60887800 (1) Full qty
26
R.H. panel with covering
61132300 (1) Full qty
26
L.H. panel with covering
61080200 (1) Full qty
26
L.H. panel with covering
60887900 (1) Full qty
26
Covering
60629500 (2) Full qty
27
Stop tie rod for door
60921100 (2) Full qty
28
Pin for tie-rod
60730200 (2) Full qty
29
Mirror Control Switch 308
61063200 (1) Full qty
30
Washer
60711900 (4) Full qty
31
R.H. air duct
60628300 (1) Full qty
31
L.H. air duct
60628400 (1) Full qty
32
Clip for underp'oaf lamp
60841900 (4) Full qty
33
Plug for window regulator hand…
60628500 (2) Full qty
34
Bellows for electric cables
60637900 (2) Full qty
35
Spring
40063208 (2) Full qty
36
Courtesy lamp
60842100 (2) Full qty
37
Screw for underdoor lamp
13272042 (4) Full qty
38
Spring
14577880 (8) Full qty
39
Inner right frame
60699800 (1) Full qty
39
Inner left frame
60699900 (1) Full qty
40
Screw
20292009 (2) Full qty
41
Rod with terminal
60636600 (1) Full qty
41
L.H. rear frame
60636700 (1) Full qty
42
R.H. vertical molding
60636200 (1) Full qty
42
L.H. vertical molding
60636300 (1) Full qty
43
Support for gasket
60725000 (2) Full qty
44
Underdoor gasket
60725100 (2) Full qty
45
Inside door handle (right)
60631200 (1) Full qty
45
Inside door handle (left)
60631300 (1) Full qty
46
Front semi - rod for safety lo…
60632700 (2) Full qty
47
Clip
30016109 (2) Full qty
48
Rear semi - rod for safety loc…
60632800 (2) Full qty
49
Sleeve
60088606 (2) Full qty
50
Outer handle for right door
60633300 (1) Full qty
50
Outer handle for left door
60633400 (1) Full qty
51
New       £ 16.45
61084400 (2) Full qty
BW99273n
51
New       £ 32.45
61084400 (2) Full qty
BW99277n
52
Rod with terminal
60633600 (2) Full qty
53
Rod rear handle and lock
60633800 (2) Full qty
54
Right and left lock with key
60719100 (1) Full qty
55
Cable, complete, for lock cont…
60775500 (2) Full qty
56
Lock for right door
60634300 (1) Full qty
56
Lock for left door
60634400 (1) Full qty
57
R.H. molding
60634700 (1) Full qty
57
L.H. molding
60634800 (1) Full qty
58
Screw 6x15
60909500 (2) Full qty
59
Screw 6x30
60909600 (6) Full qty
60
Front run channel
60634900 (2) Full qty
61
Front run channel
60635100 (2) Full qty
62
R.H. gasket
60903900 (1) Full qty
62
L.H. gasket
60904000 (1) Full qty
63
Open
60788100 (2) Full qty
64
Lamp
101525 (2) Full qty
65
Loudspeaker
60870900 (2) Full qty
66
Locking device far right door
61329400 (1) Full qty
66
Locking device for left door
61329500 (1) Full qty
67
Frame
60842000 (2) Full qty
68
R.H. panel with covering
61117400 (1) Full qty
68
Front covering
60626200 (1) Full qty
68
Rear covering
60626500 (1) Full qty
68
L.H. panel with covering
61117500 (1) Full qty
68
Front cover
60626300 (1) Full qty
68
Rear cover
60626600 (1) Full qty
69
Rod for locking device R.H. do…
61328600 (1) Full qty
69
Rod for locking device, L.H. d…
61328500 (1) Full qty
70
Slope guiding glass roller
61038000 (2) Full qty
71
Roller
61111700 (2) Full qty
72
Pin
61112000 (2) Full qty
73
Washer
61037900 (2) Full qty
74
Bracket
61111900 (2) Full qty
75
Washer
12638101 (4) Full qty
76
Nut
12574121 (4) Full qty
77
Screw
15687201 (2) Full qty
78
Circlip
11065375 (2) Full qty
79
Spacer
61328400 (2) Full qty
80
Screw
15903400 (2) Full qty
81
Screw
15688101 (2) Full qty
82
Washer
10519301 (4) Full qty
83
Gasket R.H.
61097900 (1) Full qty
83
Gasket L.H.
61098000 (1) Full qty
84
Gasket
61098100 (2) Full qty
85
R.H. insulation
61095300 (1) Full qty
85
L.H. insulation
61095400 (1) Full qty
86
R.H. insulation
61094700 (1) Full qty
86
R.H. insulation
61094800 (1) Full qty
87
Pocket R.H.
61185400 (1) Full qty
87
Pocket LH.
61185000 (1) Full qty
88
R.H. panel with covering
61149300 (1) Full qty
88
Covering
61475400 (1) Full qty
88
L.H. panel with covering
61149400 (1) Full qty
88
Covering
61475500 (1) Full qty
