Heating System

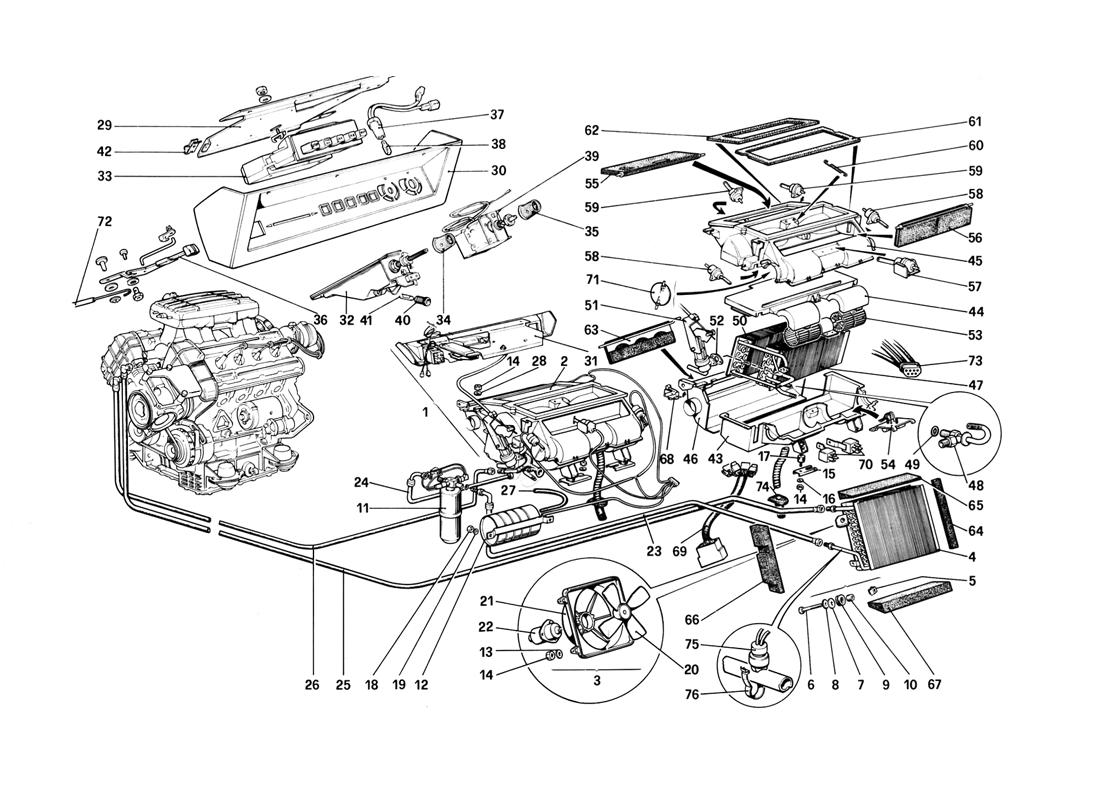

Schematic: Heating System
Loc
Part
Cond       Price
1
Gruppo A.C.
60662300 (1) Full qty
1
Gruppo A.C.
60778300 (1) Full qty
2
Condizionatore completo
60556900 (1) Full qty
2
Condizionatore completo
60778400 (1) Full qty
3
Ventialtore per A.C.
60646700 (1) Full qty
4
A.C. condenser
60649100 (1) Full qty
5
Caged nut
60659100 (4) Full qty
6
Screw
10902621 (3) Full qty
6
Screw
10902511 (1) Full qty
7
Flat Washer
12643701 (4) Full qty
8
Washer
10615471 (4) Full qty
9
New       Price on Enquiry
103549 (4) Full qty
AC00210n
10
Spacer
103550 (4) Full qty
11
Dryer filter
114730 (1) Full qty
12
Vacuum reservoir
60662500 (1) Full qty
13
Spring washer
12644401 (4) Full qty
14
Nut
12574211 (10) Full qty
15
Air conditioner assembly lower…
60726800 (2) Full qty
16
Washer
10519401 (2) Full qty
17
Fuel Pump Mounting
102947 (2) Full qty
17
New       Price on Enquiry
102947 (2) Full qty
GE00644n
18
Nut
12574111 (2) Full qty
19
Washer
10519301 (2) Full qty
20
Fan
117547 (1) Full qty
21
Air conveyor
60870300 (1) Full qty
22
New       Price on Enquiry
117546 (1) Full qty
CS11830n
23
Tubo da condensatore a depurat…
60724500 (1) Full qty
23
Tubo da depuratore ad evaporat…
60839500 (1) Full qty
24
Tubo da condensatore a depurat…
60724600 (1) Full qty
25
Tubo da compressore a condensa…
60724700 (1) Full qty
26
Pipe, evaporator - compressor
60724800 (1) Full qty
26
Tubo da evaporatore a compress…
60839600 (1) Full qty
27
Tubo da raccordo al serbatoio …
60817600 (1) Full qty
27
Tubo da raccordo al serbatoio …
60887200 (1) Full qty
27
Tubo dal raccordo al serbatoio…
111463 (1) Full qty
28
Washer
12640601 (4) Full qty
29
Piastra supporto comandi
60750300 (1) Full qty
30
Maschera orientamento comandi
60750200 (1) Full qty
31
Gruppo comando Condizionatore
60658100 (1) Full qty
32
Regolatore di velocita
60928000 (1) Full qty
33
Gruppo pulsantiera
60928100 (1) Full qty
34
Pomello regolatore velocita
60928200 (1) Full qty
35
Pomello termostato
60928300 (1) Full qty
36
Pomello leva
60928400 (1) Full qty
37
Portalampada
60928500 (1) Full qty
38
Lampada
60928600 (1) Full qty
39
Termostato
60928700 (1) Full qty
40
Fuse holder
60928800 (1) Full qty
41
Fuse
60928900 (1) Full qty
42
Molletta fermo Bauden
60929000 (1) Full qty
43
Case lower section
60929100 (1) Full qty
43
Case lower section
60941800 (1) Full qty
44
Case intermediate section
60929200 (1) Full qty
44
Case intermediate section
60941900 (1) Full qty
45
Case upper section
60929300 (1) Full qty
46
Case front section
60929400 (1) Full qty
47
Evaporator unit
60929500 (1) Full qty
47
Evaporator unit
60942000 (1) Full qty
48
Expansion valve
60929600 (1) Full qty
49
Seal ring
60929700 (1) Full qty
50
Heater
60929800 (1) Full qty
50
Heater
60942100 (1) Full qty
51
Rubinetto acqua
60929900 (1) Full qty
52
Gasket
60930000 (1) Full qty
53
Ventilator unit
60930100 (1) Full qty
54
Power transistor
60930200 (1) Full qty
55
Upper cover
60930300 (1) Full qty
56
Rear cover
60930400 (1) Full qty
57
Actuator
60930500 (1) Full qty
58
Side actuator
60930600 (2) Full qty
59
Actuator for defroster cover
60930700 (2) Full qty
60
Return spring for rear cover
60930800 (1) Full qty
61
Gasket
60930900 (1) Full qty
62
Gasket
60931000 (1) Full qty
63
Front cover with gasket
60931100 (1) Full qty
64
L.H. gasket
60729400 (1) Full qty
65
Upper gasket
60729200 (1) Full qty
66
R.H. gasket
60729300 (1) Full qty
67
Lower gasket
60729100 (1) Full qty
68
Microswitch
60931200 (1) Full qty
69
Cable assembly
60931300 (1) Full qty
70
Microteleruttore
60931400 (2) Full qty
71
Side cover
60931500 (2) Full qty
72
Bowden
60931600 (1) Full qty
72
Bowden
60942200 (1) Full qty
73
Gruppo connettore tubi vuoto
60931700 (1) Full qty
74
Tubo scarico condensa
60931800 (1) Full qty
75
Termocontatto bimetallico
60814900 (1) Full qty
76
Clip
60815000 (1) Full qty
