Throttle Control And Brake Hydraulic System (For Rhd)

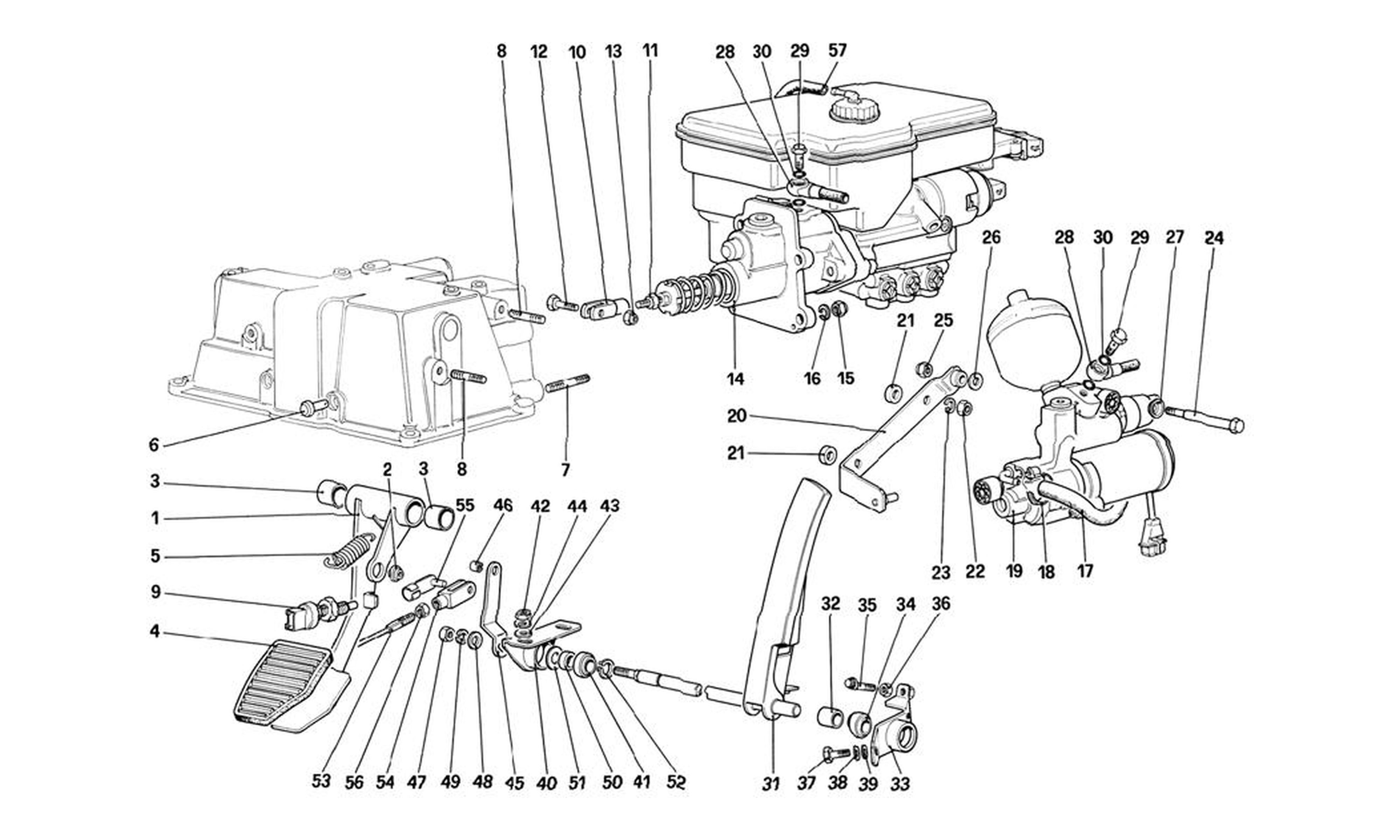

Schematic: Throttle Control And Brake Hydraulic System (For Rhd)
Loc
Part
Cond       Price
1
Brake pedal
131316 (1) Full qty
2
Ball joint
109407 (1) Full qty
3
Bush
103163 (2) Full qty
4
New       £ 16.46
106950 (1) Full qty
PB14058n
5
Clutch spring short Daytona
101305 (1) Full qty
6
Spring anchor pin
129612 (1) Full qty
7
Stud for air pump
13543421 (4) Full qty
8
Stud
13516821 (2) Full qty
9
Brake Light Switch
133555 (1) Full qty
9
New       Price on Enquiry
133555 (1) Full qty
ET02508n
10
Fork
10007871 (1) Full qty
11
New       Price on Enquiry
16102311 (1) Full qty
BS00703n
12
Screw
130926 (1) Full qty
13
Nut
16104411 (1) Full qty
14
Idraulic control unit
129699 (1) Full qty
15
Nut
16104111 (4) Full qty
16
Washer
12601371 (4) Full qty
17
Pipe
136376 (1) Full qty
18
Clamp
12179190 (2) Full qty
19
Master cylinder
131324 (1) Full qty
20
Bracket
131320 (1) Full qty
21
Spacer
124801 (2) Full qty
22
Nut
16100811 (2) Full qty
23
Washer
127469 (2) Full qty
24
Screw
129636 (1) Full qty
25
Nut
12574211 (1) Full qty
26
New       £ 1.51
121558 (1) Full qty
TC14246n
27
Washer
130861 (1) Full qty
28
Pipe from pump to antiskid swi…
131872 (1) Full qty
29
Union
131873 (2) Full qty
30
Gasket
131874 (4) Full qty
31
Accelerator pedal
116522 (1) Full qty
32
Spacer
117991 (1) Full qty
33
Pedal support
116526 (1) Full qty
34
Ball joint
122430 (1) Full qty
35
Screw
116527 (1) Full qty
36
New       Price on Enquiry
16102311 (1) Full qty
BS00703n
37
Screw
16043221 (2) Full qty
38
Wavy Lock Washer 8mm
127496 (2) Full qty
39
Washer
10519601 (2) Full qty
40
Support for relay lever
116528 (1) Full qty
41
Ball joint
122430 (1) Full qty
42
Nut
New       Price on Enquiry
15896211 (2) Full qty
CH11996n
43
Flat Washer
12643701 (2) Full qty
44
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
45
Lever
132206 (1) Full qty
46
Bush
132212 (1) Full qty
47
Nut
16100811 (1) Full qty
48
Washer
10519601 (1) Full qty
49
Wavy Lock Washer 8mm
127496 (1) Full qty
50
Spacer
116529 (1) Full qty
51
Shim 0,3 mm. thick
105929 (1) Full qty
51
Shim 0,5 mm. thick
105930 (1) Full qty
51
Shim 0,7 mm. Thick
105931 (1) Full qty
52
Circlip
11066076 (1) Full qty
53
Control cable for accelerator
133750 (1) Full qty
54
Fork
132290 (1) Full qty
55
Pin with spring
132291 (1) Full qty
56
Nut
10725011 (1) Full qty
57
Breathing Pipe
136192 (1) Full qty
