Throttle Control And Brake Hydraulic System (For Rhd)

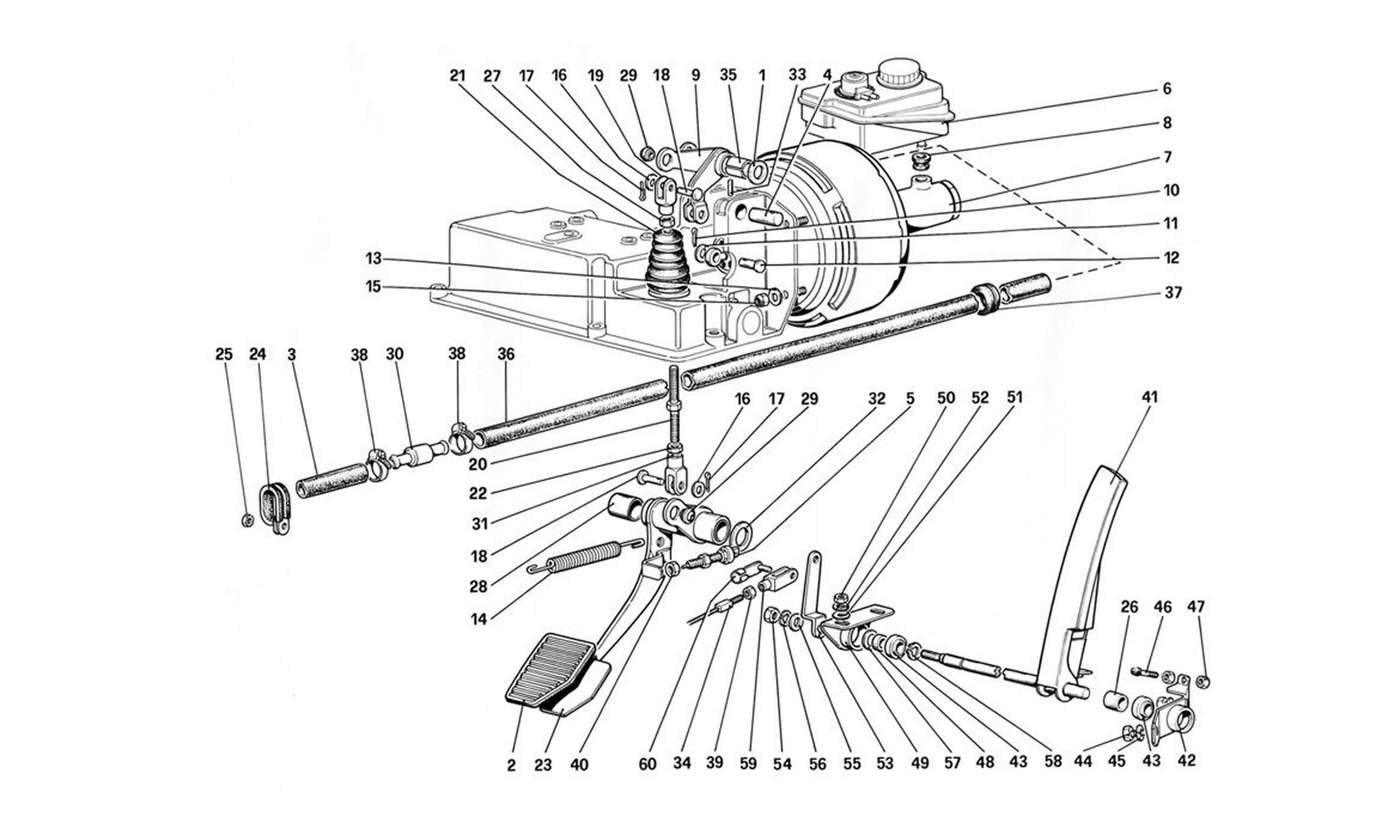

Schematic: Throttle Control And Brake Hydraulic System (For Rhd)
Loc
Part
Cond       Price
1
Shim
112126 (2) Full qty
2
New       £ 16.46
106950 (1) Full qty
PB14058n
3
Pipe from 3 way union to valve…
120232 (1) Full qty
4
Lever supporting pin
112165 (1) Full qty
5
New       Price on Enquiry
119439 (1) Full qty
EL99434n
6
Oil reservoir
119566 (1) Full qty
6
Brake and clutch fluid reservo…
133579 (1) Full qty
7
Brake booster
133570 (1) Full qty
7
Brake booster
124515 (1) Full qty
8
New       Price on Enquiry
175189 (2) Full qty
BS00881n
9
Brake booster control lever
121248 (1) Full qty
10
Cotter pin
10796401 (1) Full qty
11
Washer
10630521 (1) Full qty
12
Pin
10033411 (1) Full qty
13
Washer
12601371 (4) Full qty
14
New       Price on Enquiry
104895 (1) Full qty
PB14046n
15
Nut
16104411 (4) Full qty
16
Washer
103167 (2) Full qty
17
Cotter pin
10796401 (2) Full qty
18
Pin
10033411 (2) Full qty
19
Fork, R.H. thread
104910 (1) Full qty
20
Tie rod
119164 (1) Full qty
21
Bellows
112157 (1) Full qty
22
Lock nut
11690911 (1) Full qty
23
Brake pedal
121247 (1) Full qty
24
Bracket D. 28
61712600 (1) Full qty
25
Nut
12574211 (1) Full qty
26
Spacer
117991 (1) Full qty
27
Lock nut
10788711 (1) Full qty
28
Bush
103163 (2) Full qty
29
New       Price on Enquiry
100424 (2) Full qty
BS00772n
30
New       £ 93.85
128435 (1) Full qty
BS00349n
30
Brake Booster Check Valve (Inl…
128435 (1) Full qty
31
Fork, L.H. thread
104911 (1) Full qty
32
Shim
106083 (1) Full qty
33
Lock pin
114623 (1) Full qty
34
Control cable for accelerator
118817 (1) Full qty
35
Bush
112161 (1) Full qty
36
Hose from brake booster to 3 w…
119361 (1) Full qty
37
Cable grommet
10396880 (1) Full qty
38
Clamp
12179590 (4) Full qty
39
Nut
10725911 (1) Full qty
40
Shoch absorbing nut
101662 (1) Full qty
41
Accelerator pedal
116522 (1) Full qty
42
Pedal support
116526 (1) Full qty
43
Ball joint
122430 (1) Full qty
44
Screw
16043221 (2) Full qty
45
Washer
106852 (2) Full qty
46
Screw
116527 (1) Full qty
47
New       Price on Enquiry
16102311 (2) Full qty
BS00703n
48
Spacer
116529 (1) Full qty
49
Support for relay lever
116528 (1) Full qty
50
Nut
New       Price on Enquiry
15896211 (2) Full qty
CH11996n
51
Flat Washer
12643701 (2) Full qty
52
Washer
106850 (2) Full qty
53
Lever
115399 (1) Full qty
54
Nut
16100811 (1) Full qty
55
Washer
10519601 (1) Full qty
56
Washer
106852 (1) Full qty
57
Shim 0,3 mm. thick
105929 (1) Full qty
57
Shim 0,5 mm. thick
105930 (1) Full qty
57
Shim 0,7 mm. Thick
105931 (1) Full qty
58
Circlip
11066076 (1) Full qty
59
New       Price on Enquiry
100655 (1) Full qty
FU15520n
60
New       £ 1.99
100656 (1) Full qty
FU15923n
