Electric Generation System

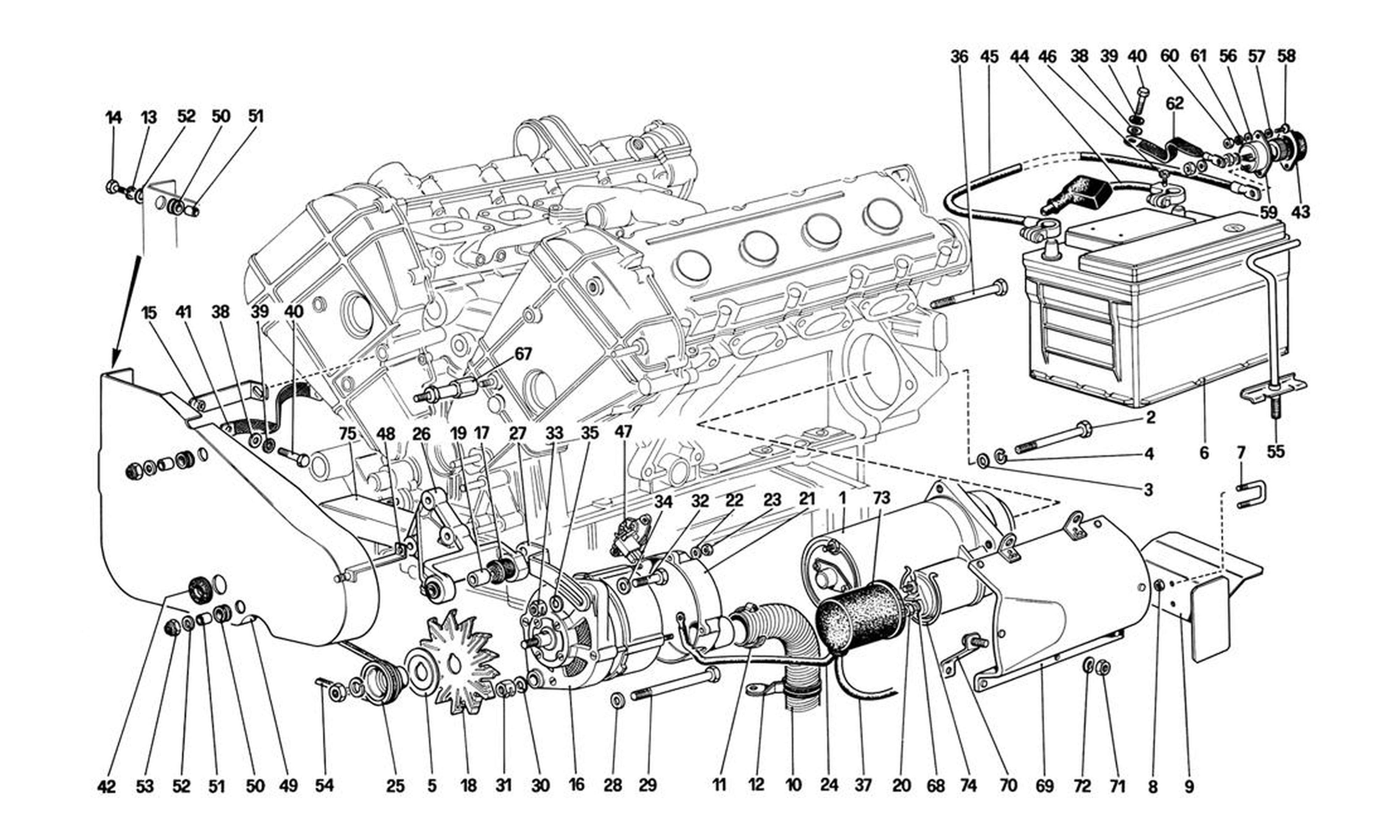

Schematic: Electric Generation System
Loc
Part
Cond       Price
1
New       Price on Enquiry
120967 (1) Full qty
EL99240n
2
Fixing bolt
16045121 (2) Full qty
3
Washer
11198071 (3) Full qty
4
Flat washer
10519621 (3) Full qty
5
Washer
114305 (1) Full qty
6
12V-70AH-420A battery
61933900 (1) Full qty
6
1 2 V - 66 Ah - 300 A battery
118060 (1) Full qty
7
Pos. cable fastening U bolt
116591 (1) Full qty
8
Nut securing batt. disconn. sw…
12574011 (2) Full qty
9
Metal shield for protection
120451 (1) Full qty
10
Pipe
121190 (1) Full qty
11
Clamp
12180090 (1) Full qty
12
Clamp
121839 (1) Full qty
13
Washer
106850 (1) Full qty
14
Screw
10902421 (1) Full qty
15
Bracket
121621 (1) Full qty
16
Alternator BOSCH 85A
121761 (1) Full qty
17
Elastic bush
117969 (2) Full qty
18
Fan
118802 (1) Full qty
19
Bush
124678 (1) Full qty
20
Nut
16100811 (1) Full qty
21
Air conveyor
121837 (1) Full qty
22
Washer
12601171 (4) Full qty
23
Nut
15896421 (4) Full qty
24
Generator connecting cables
121188 (1) Full qty
25
Pulley
123708 (1) Full qty
26
Support for alternator
124655 (1) Full qty
27
Plate for regulation
117937 (1) Full qty
28
Washer
13550421 (1) Full qty
29
Bolt
15972921 (1) Full qty
30
Washer
12601471 (1) Full qty
31
Nut
117702 (1) Full qty
32
Screw
11343821 (1) Full qty
33
Nut
117702 (1) Full qty
34
Washer
13550421 (1) Full qty
35
Washer
105391 (1) Full qty
36
Fixing bolt
116751 (1) Full qty
37
Cable from starter to engine c…
116415 (1) Full qty
38
Washer
10519601 (2) Full qty
39
Washer
10615679 (2) Full qty
40
Screw
16043121 (2) Full qty
41
Earthing plait for engine
115668 (1) Full qty
42
Cap
40134108 (1) Full qty
43
Cover for switch
119441 (1) Full qty
44
Cable from battery to connecto…
116414 (1) Full qty
44
Battery positive cable
123674 (1) Full qty
45
Cable from battery to battery …
116754 (1) Full qty
46
Nut
12575411 (1) Full qty
46
Nut
16104411 (1) Full qty
47
Voltage regulator
121840 (1) Full qty
48
Bracket
123331 (1) Full qty
49
Protection plate for generator…
124262 (1) Full qty
50
New       Price on Enquiry
103549 (3) Full qty
AC00210n
51
Spacer
103550 (3) Full qty
52
Flat Washer
12643701 (3) Full qty
53
Nut
12575411 (2) Full qty
54
Alternatr belt
123709 (1) Full qty
55
Bolt assembly holding battery
60641100 (1) Full qty
56
Washer
14498501 (1) Full qty
57
Washer
12639401 (2) Full qty
58
Screw
10373411 (2) Full qty
59
Battery disconnecting switch
123677 (1) Full qty
60
Nut
16101711 (2) Full qty
61
Washer
10615171 (2) Full qty
62
Battery disconnection device c…
116753 (1) Full qty
67
Wheel stud
124263 (1) Full qty
68
Washer
10516670 (1) Full qty
69
Protection
107038 (1) Full qty
70
Support
107039 (1) Full qty
71
Nut
New       Price on Enquiry
15896211 (1) Full qty
CH11996n
72
Flat Washer
12643701 (1) Full qty
73
New       £ 84.55
113990 (1) Full qty
EL99046n
74
Colson type clamp
105550 (1) Full qty
75
Shield panel
108304 (1) Full qty
