Fuel Pump And Pipes (For Us Version)

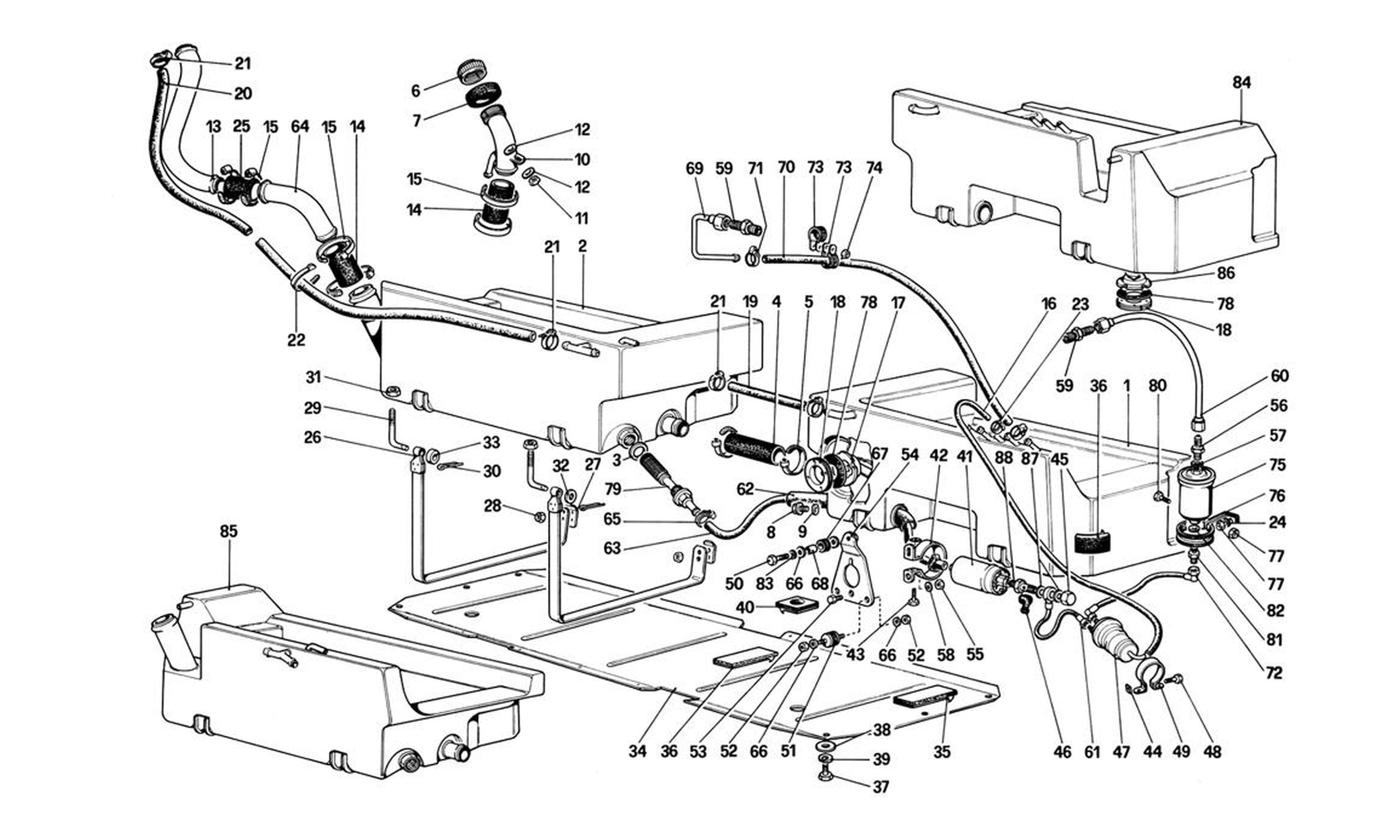

Schematic: Fuel Pump And Pipes (For Us Version)
Loc
Part
Cond       Price
1
Right fuel tank
119086 (1) Full qty
2
Leftfuel tank
119087 (1) Full qty
3
Gasket for fuel filter
117884 (1) Full qty
4
Fuel Crossover Hose
116270 (1) Full qty
5
Clamp
12173890 (2) Full qty
6
Filler cap
113401 (1) Full qty
7
New       Price on Enquiry
101465 (1) Full qty
BW10224n
7
Fuel Filler Neck Seal
101465 (1) Full qty
8
New       Price on Enquiry
10300771 (1) Full qty
SU11702n
9
Gasket
10278650 (1) Full qty
10
Tank filler
116986 (1) Full qty
11
Dado autobloccante
12574221 (1) Full qty
12
Washer
109684 (2) Full qty
13
Pipe
117816 (1) Full qty
14
Sleeve
114278 (2) Full qty
15
New       £ 2.95
12174790 (6) Full qty
FU00141n
16
Fuel recovery pipe
117163 (1) Full qty
17
Control for fuel level gauge
116045 (1) Full qty
18
Roll Over Valve/ Vent Pipe Com…
169937 (1) Full qty
19
Tank breathe pipe
114916 (1) Full qty
20
Tank breather pipe
116852 (1) Full qty
21
Clamp
12179590 (4) Full qty
22
Colson type clamp
105550 (1) Full qty
23
Clamp
12179490 (2) Full qty
24
Washer
13550301 (1) Full qty
25
Sleeve
117618 (1) Full qty
26
Strap securing fuel tank
115732 (4) Full qty
27
Small plate
115734 (4) Full qty
28
Nut
12575411 (8) Full qty
29
Tie rod for strap
12311271 (4) Full qty
30
Cotter pin
10796401 (4) Full qty
31
Selflocking nut
16104121 (4) Full qty
32
Washer
10519601 (2) Full qty
33
Spacer
13605911 (2) Full qty
34
Protective plate for tanks
119182 (1) Full qty
35
Outer shim
116566 (4) Full qty
36
Rubber spacer
115330 (18) Full qty
37
Screw
10902121 (13) Full qty
38
Flat Washer
12643701 (13) Full qty
39
Washer
106850 (13) Full qty
40
Gasket
116585 (2) Full qty
41
Fuel Pump
121727 (1) Full qty
42
Pump retaining clamp
113673 (1) Full qty
43
Screw
10377311 (1) Full qty
44
Square nut
14089311 (2) Full qty
45
Drain plug
10183217 (1) Full qty
46
New       Price on Enquiry
107003 (2) Full qty
EL99222n
47
Fuel Accumulator 0438170004
113978 (1) Full qty
48
Screw
10376111 (1) Full qty
49
Accumulator retaining clamp
113674 (1) Full qty
50
Screw
10902621 (1) Full qty
51
Fuel Pump Mounting
102947 (2) Full qty
51
New       Price on Enquiry
102947 (2) Full qty
GE00644n
52
Nut
12574211 (4) Full qty
53
Screw
10902221 (4) Full qty
54
Support
119178 (1) Full qty
55
Nut
12574211 (4) Full qty
56
Union piece
127756 (1) Full qty
57
New       Price on Enquiry
10298460 (1) Full qty
EX10416n
58
Washer
10519421 (2) Full qty
59
Union
125215 (2) Full qty
60
Pipe from filter to metering d…
128469 (1) Full qty
60
Pipe from filter to metering d…
128474 (1) Full qty
61
Pipe from to accumulator
123022 (1) Full qty
61
Return pipe
118393 (1) Full qty
62
Protection pipe
119183 (1) Full qty
63
Sleeve, pump side
119184 (1) Full qty
64
Pipe
117817 (1) Full qty
65
Clamp
12179590 (2) Full qty
66
Flat Washer
12643701 (6) Full qty
67
New       Price on Enquiry
103549 (1) Full qty
AC00210n
68
Spacer
103550 (1) Full qty
69
Fuel reflux pipe
128471 (1) Full qty
70
Fuel reflux pipe
114881 (1) Full qty
71
Clamp
12179490 (2) Full qty
72
Pipe from accumulator to filte…
117952 (1) Full qty
72
Pipe from accumulator to filte…
136306 (1) Full qty
73
Clamp
10441190 (4) Full qty
74
Nut
12574211 (2) Full qty
75
New       £ 32.95
117792 (1) Full qty
FU14008n
76
(2) Sheathed bracker to filter…
117791 (1) Full qty
76
(1) Sheathed bracker to filter…
117954 (1) Full qty
77
Selflocking nut
16104121 (2) Full qty
78
Gasket
116792 (1) Full qty
78
New       Price on Enquiry
132132 (1) Full qty
FU15628n
79
Filter on tank
116404 (1) Full qty
80
Screw
16043221 (1) Full qty
81
Union on feeding side
109889 (1) Full qty
82
New       £ 1.25
10280060 (1) Full qty
FU00140n
83
Washer
106850 (1) Full qty
84
(2) Right fuel tank
127177 (1) Full qty
85
(2) Leftfuel tank
127178 (1) Full qty
86
(2) Control for fuel level gau…
132133 (1) Full qty
86
Control for fuel level guage
121934 (1) Full qty
87
New       £ 1.28
11270160 (2) Full qty
FU15801n
88
Fuel Pump Check Valve
120098 (1) Full qty
