Heating System

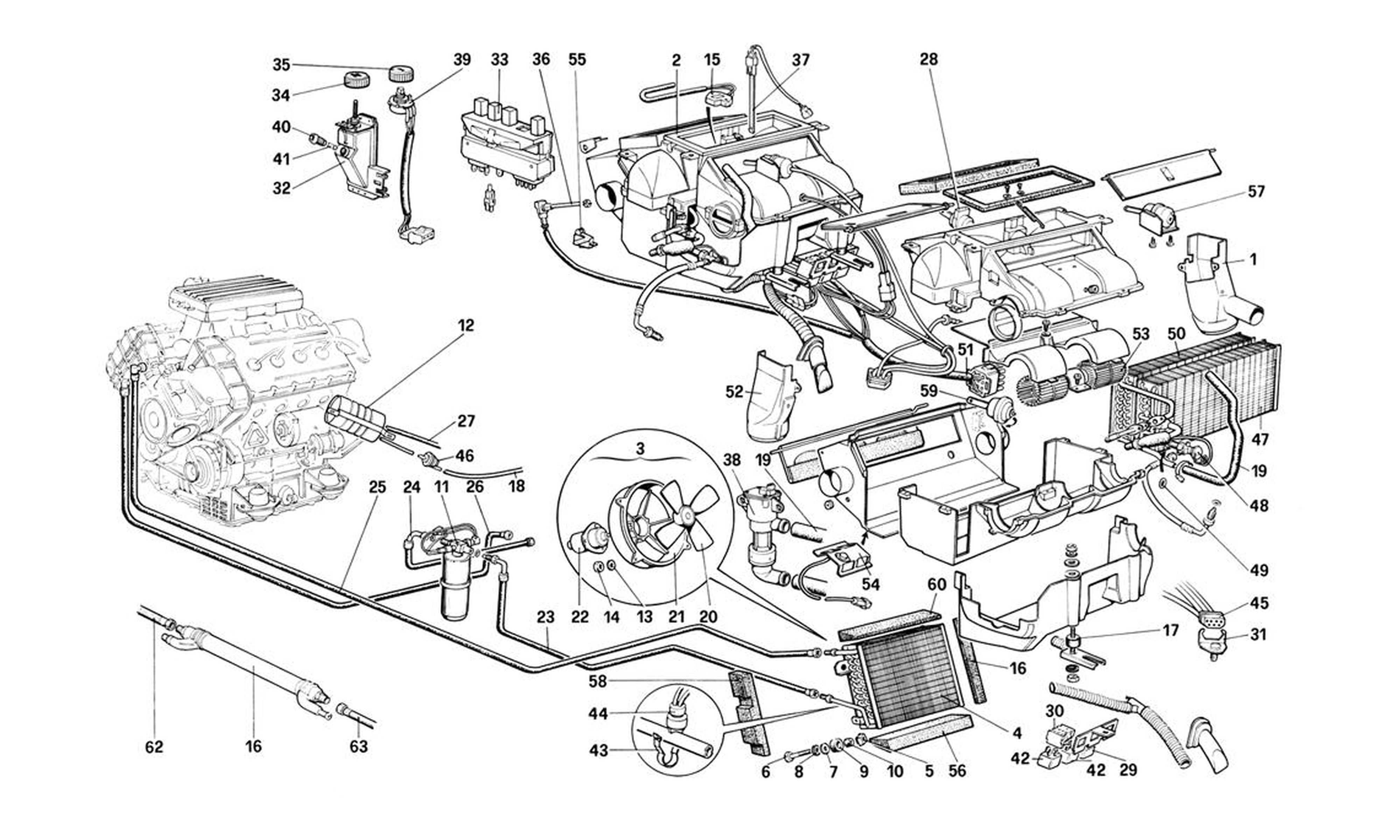

Schematic: Heating System
Loc
Part
Cond       Price
1
L.H. conveyor
61425900 (1) Full qty
1
L.H. conveyor
61426300 (1) Full qty
2
Air condition complete
61879000 (1) Full qty
2
Air condition complete
61722600 (1) Full qty
3
Fan assembly A.C.
61432000 (1) Full qty
3
Fan
61992600 (1) Full qty
4
A.C. condenser
60649100 (1) Full qty
5
Caged nut
60659100 (1) Full qty
6
Screw
10902511 (1) Full qty
6
Screw
10902611 (3) Full qty
7
Flat Washer
12643701 (4) Full qty
8
Washer
10615471 (4) Full qty
9
New       Price on Enquiry
103549 (4) Full qty
AC00210n
10
Spacer
103550 (4) Full qty
11
(A) Dryer
61989500 (1) Full qty
11
Dryer filter
114730 (1) Full qty
11
New       Price on Enquiry
129102 (1) Full qty
AC00301n
11
New       Price on Enquiry
129101 (1) Full qty
CS11754n
12
Vacuum reservoir complete with…
61642700 (1) Full qty
13
Spring washer
12644401 (4) Full qty
14
Nut
12574211 (4) Full qty
15
Temperature sensor
61797200 (1) Full qty
16
L.H. gasket
60729400 (1) Full qty
17
Fuel Pump Mounting
102947 (2) Full qty
17
New       Price on Enquiry
102947 (2) Full qty
GE00644n
18
Pipe from vacuum tank to union…
61739100 (1) Full qty
19
Pipe
61084700 (1) Full qty
19
Pipe
61150000 (1) Full qty
20
New       Price on Enquiry
122953 (1) Full qty
CS11850n
21
Air conveyor
60870300 (1) Full qty
22
Motor
123136 (1) Full qty
23
Condenser-cleaner pipe
61369800 (1) Full qty
23
Pipe condenser - dryer
61369300 (1) Full qty
24
Pipe, dryer - evaporator
61369400 (1) Full qty
25
(A) Pipe compressor / condense…
62383500 (1) Full qty
25
Pipe, Sankyo compressor - cond…
61607900 (1) Full qty
25
Pipe, Sankyo compressor - cond…
61607900 (1) Full qty
26
Pipe, evaporator - Sankyo - co…
61608100 (1) Full qty
26
Pipe, evaporator - Sankyo comp…
61607700 (1) Full qty
26
Pipe, evaporator - Sankyo comp…
61607800 (1) Full qty
26
Pipe, evaporator - Sankyo comp…
61608000 (1) Full qty
27
Pipe, union to empty reservoir…
118502 (1) Full qty
27
(2) Pipe union / empty reservo…
124791 (1) Full qty
28
Interior actuator
61268000 (1) Full qty
29
New       Price on Enquiry
40130106 (1) Full qty
EL11620n
29
New       Price on Enquiry
40130106 (1) Full qty
EL11704n
30
Block
61430700 (3) Full qty
31
Bracket
61079900 (1) Full qty
32
Speed control unit
61112300 (1) Full qty
33
Switch panel
61078600 (1) Full qty
33
Switch panel
61131300 (1) Full qty
34
Knob for speed variator
61112400 (1) Full qty
35
Potentiometer knob
61112500 (1) Full qty
36
Air temperature sensor
61079600 (1) Full qty
37
New       £ 495.00
62341000 (1) Full qty
EL99830n
38
Electromagnetic valve
61079000 (1) Full qty
39
Potentiometer for A.C. tempera…
61078700 (1) Full qty
40
Fuse holder
60928800 (1) Full qty
41
Fuse
60928900 (1) Full qty
42
New       £ 21.45
40130007 (2) Full qty
EL11618n
43
Clip for thermal contact
61942400 (1) Full qty
44
Bimetallic thermocontact
61047900 (1) Full qty
45
Connection set for vacuum pipe…
61976400 (1) Full qty
46
Single-action valve
61653800 (1) Full qty
47
Evaporator unit
60942000 (1) Full qty
47
Evaporator unit
60929500 (1) Full qty
48
Expansion valve
60929600 (1) Full qty
49
Seal ring
60929700 (1) Full qty
50
Heater
60942100 (1) Full qty
50
Heater
60929800 (1) Full qty
51
Electric cable set
61976500 (1) Full qty
52
R.H. conveyor
62339300 (1) Full qty
52
R.H. conveyor
61425800 (1) Full qty
53
Ventilator unit
60930100 (1) Full qty
54
Power transistor
127014 (1) Full qty
55
Microswitch
60931200 (1) Full qty
56
Lower gasket
60729100 (1) Full qty
57
Actuator
60930500 (1) Full qty
58
R.H. gasket
60729300 (1) Full qty
59
Actuator for defroster cover
60930700 (1) Full qty
60
Upper gasket
60729200 (1) Full qty
61
Heat exchange
120920 (1) Full qty
62
TUBO DA SCAMB.A COMPRESS.
61726200 (1) Full qty
63
Pipe, evaporator - heat exchan…
61370000 (1) Full qty
