Fuel Pump And Pipes (Not For Us Version)

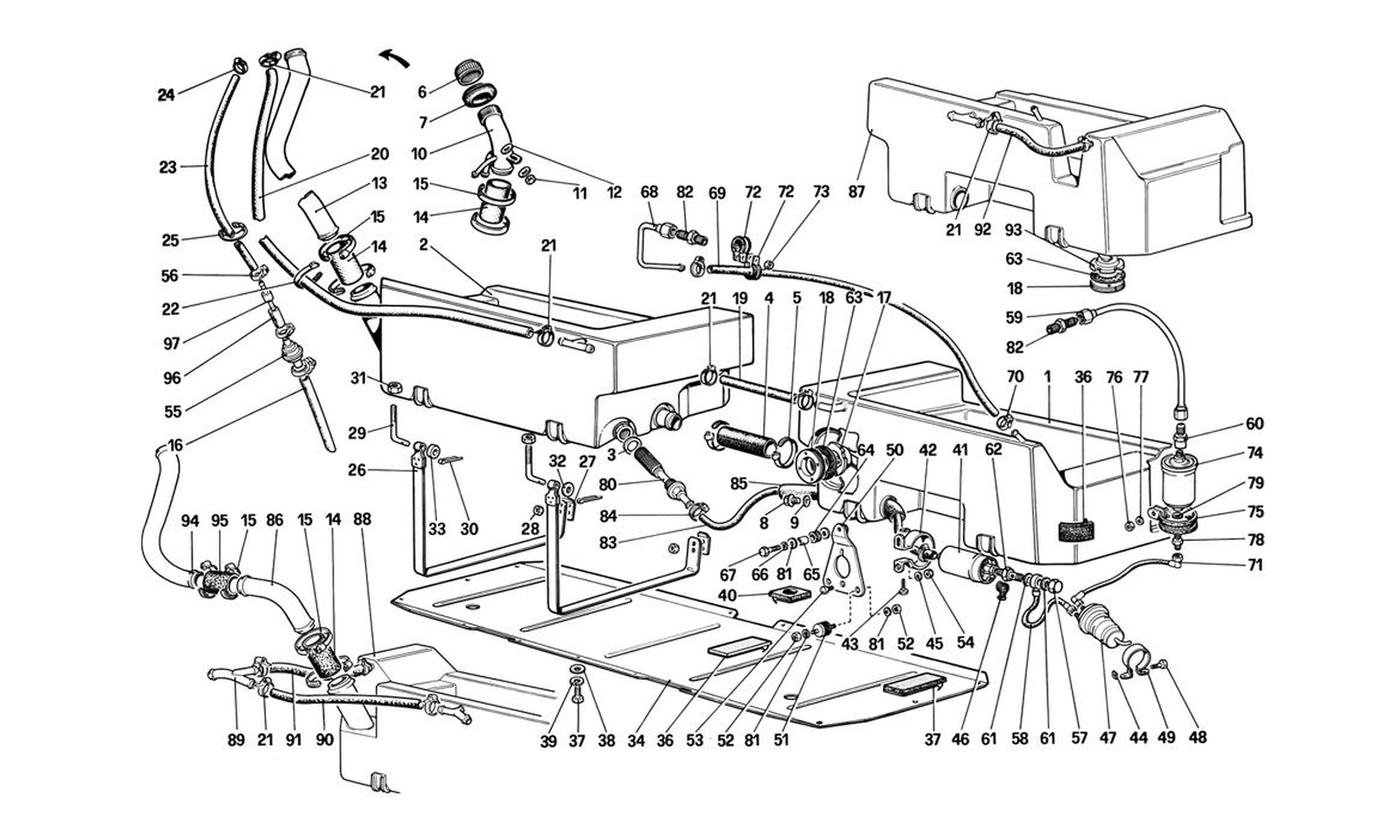

Schematic: Fuel Pump And Pipes (Not For Us Version)
Loc
Part
Cond       Price
1
Right fuel tank
119068 (1) Full qty
2
Left Fuel Tank
119069 (1) Full qty
3
Gasket for fuel filter
117884 (1) Full qty
4
Fuel Crossover Hose
116270 (1) Full qty
5
Clamp
12173890 (2) Full qty
6
Filler cap
113401 (1) Full qty
7
New       Price on Enquiry
101465 (1) Full qty
BW10224n
7
Fuel Filler Neck Seal
101465 (1) Full qty
8
New       Price on Enquiry
10300771 (1) Full qty
SU11702n
9
Gasket
10278650 (1) Full qty
10
Tank filler
116406 (1) Full qty
10
Tankfiller
132341 (1) Full qty
10
Tankfiller
132431 (1) Full qty
11
Dado autobloccante
12574221 (1) Full qty
12
Washer
109684 (2) Full qty
13
Pipe
116405 (1) Full qty
14
Sleeve
114278 (2) Full qty
15
New       £ 2.95
12174790 (4) Full qty
FU00141n
16
Pipe
116770 (1) Full qty
17
Control for fuel level gauge
116045 (1) Full qty
18
Roll Over Valve/ Vent Pipe Com…
169937 (1) Full qty
19
Tank breathe pipe
114916 (1) Full qty
20
Tank breather pipe
116852 (1) Full qty
21
Clamp
12179590 (4) Full qty
22
Colson type clamp
105550 (1) Full qty
23
Pipe
119376 (1) Full qty
24
Clamp
12179090 (1) Full qty
25
Front Brake Caliper - Clamp Fo…
40135402 (5) Full qty
26
Strap securing fuel tank
115732 (4) Full qty
27
Small plate
115734 (4) Full qty
28
Nut
12575411 (8) Full qty
29
Tie rod for strap
12311271 (4) Full qty
30
Cotter pin
10796401 (4) Full qty
31
Selflocking nut
16104121 (4) Full qty
32
Washer
10519601 (2) Full qty
33
Spacer
13605911 (2) Full qty
34
Protective plate for tanks
119182 (1) Full qty
35
Outer shim
116566 (4) Full qty
36
Rubber spacer
115330 (18) Full qty
37
Screw
10902121 (13) Full qty
38
Flat Washer
12643701 (13) Full qty
39
Washer
106850 (13) Full qty
40
Gasket
116585 (2) Full qty
41
Fuel Pump
121727 (1) Full qty
42
Pump retaining clamp
113673 (1) Full qty
43
Screw
10377311 (1) Full qty
44
Square nut
14089311 (2) Full qty
45
Washer
10519421 (2) Full qty
46
New       Price on Enquiry
107003 (2) Full qty
EL99222n
47
Fuel Accumulator 0438170004
113978 (1) Full qty
48
Screw
10376111 (1) Full qty
49
Accumulator retaining clamp
113674 (1) Full qty
50
Support
119178 (1) Full qty
51
Fuel Pump Mounting
102947 (2) Full qty
51
New       Price on Enquiry
102947 (2) Full qty
GE00644n
52
Nut
12574211 (4) Full qty
53
Screw
10902221 (4) Full qty
54
Nut
12574211 (4) Full qty
55
Tank ventilation valve
120444 (1) Full qty
56
Clamp
12179490 (2) Full qty
57
Drain plug
10183217 (1) Full qty
58
Pipe from to accumulator
123022 (1) Full qty
59
Pipe from filter to metering d…
128469 (1) Full qty
60
Accumulator union
125216 (1) Full qty
61
New       £ 1.28
11270160 (2) Full qty
FU15801n
62
Fuel Pump Check Valve
120098 (1) Full qty
63
Gasket
116792 (1) Full qty
63
New       Price on Enquiry
132132 (1) Full qty
FU15628n
64
New       Price on Enquiry
103549 (1) Full qty
AC00210n
65
Spacer
103550 (1) Full qty
66
Washer
106850 (1) Full qty
67
Screw
10902621 (1) Full qty
68
Fuel reflux pipe
128471 (1) Full qty
69
New       £ 10.75
116767 (1) Full qty
FT10099n
70
Clamp
12179490 (2) Full qty
71
Pipe from accumulator to filte…
117952 (1) Full qty
72
Clamp
10441190 (4) Full qty
73
Nut
12574211 (2) Full qty
74
Fuel Filter 71051
115738 (1) Full qty
74
Fuel Filter 71051
115738 (2) Full qty
75
Sheathed bracket for filter
115140 (1) Full qty
76
Nut
16104111 (1) Full qty
77
Washer
13550301 (1) Full qty
78
Union on delivery side
109797 (1) Full qty
79
Gasket
113910 (1) Full qty
80
Filter on tank
116404 (1) Full qty
81
Flat Washer
12643701 (6) Full qty
82
Union
125215 (2) Full qty
83
Sleeve, pump side
119184 (1) Full qty
84
Clamp
12179550 (2) Full qty
85
Protection pipe
119183 (1) Full qty
86
Pipe
121486 (1) Full qty
87
(2) Right fuel tank
129281 (1) Full qty
88
(2) Left fuel tank
129282 (1) Full qty
89
2 way union
123373 (1) Full qty
90
Fuel Line 14x22 (per foot)
115137 (1) Full qty
91
New       Price on Enquiry
117873 (1) Full qty
FT10026n
92
New       Price on Enquiry
119281 (1) Full qty
FT10114n
93
(2) Control for fuel level gau…
132133 (1) Full qty
93
Control for fuel level guage
121934 (1) Full qty
94
Pipe
121485 (1) Full qty
95
Sleeve
117618 (1) Full qty
96
Sleeve
133337 (1) Full qty
97
Union
133338 (1) Full qty
