Ac System

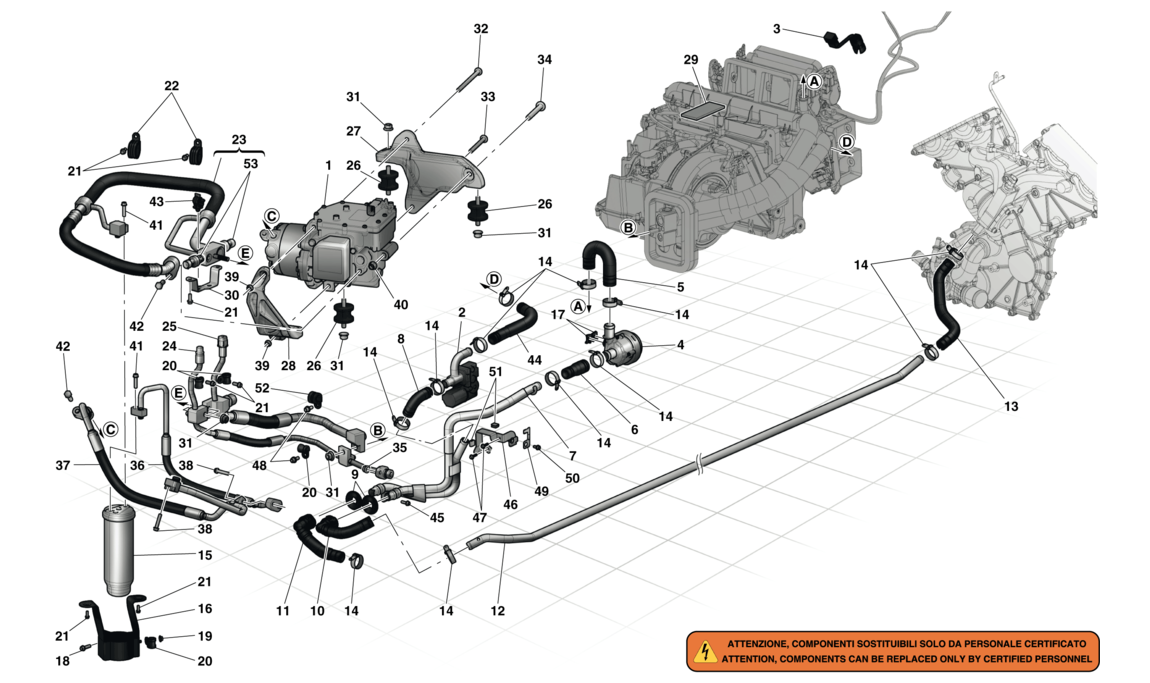

Schematic: Ac System
Schematic: Ac System
Loc
Part
Cond       Price
1
AIR CONDITIONING COMPRESSOR
304675 (1) Full qty
2
RH CYLINDER BANK TGK VALVE
67635900 (1) Full qty
3
TEMPERATURE SENSOR
236847 (1) Full qty
4
IDLE WATER RECIRCULATION PUMP
291349 (1) Full qty
5
U-PIPE FROM PUMP TO AC UNIT
302805 (1) Full qty
6
IDLE PUMP INLET CONNECTOR PIPE…
291332 (1) Full qty
7
WATER PIPE FROM TGK TO IDLE PU…
302813 (1) Full qty
8
CONNECTOR PIPE
240729 (1) Full qty
9
GASKET
81895900 (2) Full qty
10
AC HEATING PIPE CONNECTOR ELBO…
284800 (1) Full qty
10
AC HEATING PIPE CONNECTOR ELBO…
308291 (1) Full qty
11
CONNECTOR ELBOW FROM HEATER TO…
284811 (1) Full qty
12
UNDERBODY WATER PIPE FOR AC HE…
284781 (1) Full qty
13
FLEXIBLE HOSE FROM THERMOSTAT …
291671 (1) Full qty
14
COLLAR CLAMP -Applicable until…
262110 (12) Full qty
14
COLLAR CLAMP -Applicable after…
262109 (12) Full qty
15
A/C Receiver Drier
New       Price on Enquiry
67085100 (1) Full qty
AC00188n
16
DEHYDRATOR FILTER BRACKET
294924 (1) Full qty
17
CLIP
82268600 (2) Full qty
18
ERGAL SCREW -M6 X 20-
302655 (1) Full qty
19
NUT
13046014 (1) Full qty
20
BRACKET WITH SHEATH
302394 (4) Full qty
21
ERGAL SCREW -M6 X 15-
302574 (8) Full qty
22
BRACKET WITH SHEATH -No longer…
302979 (2) Full qty
22
BRACKET WITH SHEATH
307048 (2) Full qty
23
COMPL. GAS PIPE
301137 (1) Full qty
24
GAS DELIVERY PIPE
304904 (1) Full qty
25
GAS RETURN PIPE
303479 (1) Full qty
26
PLUG
303692 (3) Full qty
27
MOUNTING SHELL WITH 3 HOLES
298659 (1) Full qty
28
MOUNTING SHELL WITH 2 HOLES
298660 (1) Full qty
29
PLUG
295279 (1) Full qty
30
BRACKET FASTENING PIPES TO FRO…
296642 (1) Full qty
31
NUT
14040711 (5) Full qty
32
TITANIUM SCREW -M8 X 120-
298624 (1) Full qty
33
TITANIUM SCREW -M8 X 80-
298626 (1) Full qty
34
TITANIUM SCREW -M10 X 75-
298627 (1) Full qty
35
NUT
194031 (1) Full qty
36
GAS DELIVERY PIPE FROM CONDENS…
304040 (1) Full qty
37
GAS RETURN PIPE FROM CONDENSER…
304039 (1) Full qty
38
ERGAL SCREW -M6 X 30-
302657 (2) Full qty
39
NUT
177778 (2) Full qty
40
NUT
133216 (1) Full qty
41
ERGAL SCREW -M6 X 25-
302656 (2) Full qty
42
Screw 8x25
16043624 (2) Full qty
43
CLIP
250318 (1) Full qty
44
CONNECTOR PIPE
302812 (1) Full qty
45
SCREW -M5 X 15-
302723 (1) Full qty
46
TGK VALVE FASTENER BRACKET
294818 (1) Full qty
47
SCREW
68391900 (2) Full qty
48
Screw 6x16 ( For Tensioner Mount) F12
New       £ 0.76
248334 (2) Full qty
TC00257n
49
CLIP
162606 (1) Full qty
50
ERGAL SCREW -M5 X 10-
302659 (1) Full qty
51
ANTI-VIBRATION RUBBER BLOCK
82329200 (2) Full qty
52
BRACKET WITH SHEATH
303122 (1) Full qty
53
HIGH PRESSURE TRANSDUCER
80552400 (1) Full qty
53
LOW PRESSURE TRANSDUCER
86249300 (1) Full qty
