Rear Suspension - Arms

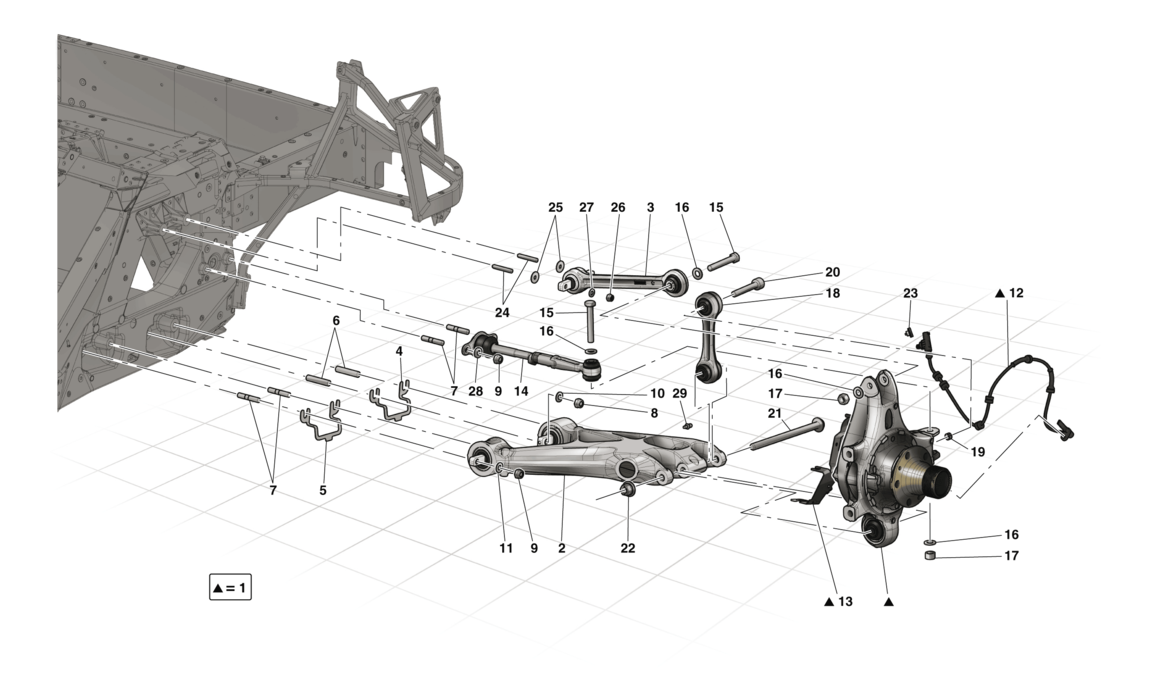

Schematic: Rear Suspension - Arms
Loc
Part
Cond       Price
1
LH REAR HUB CARRIER
293857 (1) Full qty
1
RH REAR HUB CARRIER
293858 (1) Full qty
2
LOWER LH REAR ARM -Request SAT…
298406 (1) Full qty
2
LOWER RH REAR ARM -Request SAT…
298407 (1) Full qty
3
UPPER REAR ARM -Request SAT au…
298486 (2) Full qty
4
ADJUSTMENT PLATE -0.5 mm-
283959 (2) Full qty
4
ADJUSTMENT PLATE -1 mm-
283960 (2) Full qty
4
ADJUSTMENT PLATE -1,5 mm-
283961 (2) Full qty
4
ADJUSTMENT PLATE -2 mm-
283954 (2) Full qty
4
ADJUSTMENT PLATE -2.5 mm-
283955 (1) Full qty
4
ADJUSTMENT PLATE -3 mm-
283956 (2) Full qty
4
ADJUSTMENT PLATE -3.5 mm-
283957 (1) Full qty
4
ADJUSTMENT PLATE -4 mm-
283958 (2) Full qty
5
ADJUSTMENT PLATE -0.5 mm-
287740 (2) Full qty
5
ADJUSTMENT PLATE -1 mm-
287741 (2) Full qty
5
ADJUSTMENT PLATE -1,5 mm-
287742 (2) Full qty
5
ADJUSTMENT PLATE -2 mm-
287735 (2) Full qty
5
ADJUSTMENT PLATE -2.5 mm-
287736 (2) Full qty
5
ADJUSTMENT PLATE -3 mm-
287737 (2) Full qty
5
ADJUSTMENT PLATE -3.5 mm-
287738 (2) Full qty
5
ADJUSTMENT PLATE -4 mm-
287739 (2) Full qty
6
STUD BOLT
13552634 (4) Full qty
7
STUD BOLT
13546634 (8) Full qty
8
Nut
102825 (4) Full qty
9
NUT
104114 (8) Full qty
10
WASHER
10520024 (4) Full qty
11
WASHER
14496624 (4) Full qty
12
ABS SENSOR
252510 (2) Full qty
13
LH REAR JOINT BRACKET
299534 (1) Full qty
13
RH REAR JOINT BRACKET
299535 (1) Full qty
14
COMPL. TIE/ROD FOR ADJUSTING R…
293384 (2) Full qty
15
SCREW
15541434 (4) Full qty
16
WASHER
14496721 (8) Full qty
17
NUT
203666 (4) Full qty
18
ANTI-ROTATION LINKAGE
259688 (2) Full qty
19
COMPENSATOR RING
222956 (2) Full qty
20
SCREW
238258 (2) Full qty
21
SCREW
238656 (2) Full qty
22
NUT
238063 (2) Full qty
23
FASTENER CLIP
204781 (2) Full qty
24
STUD BOLT
13543734 (4) Full qty
25
WASHER
14496524 (4) Full qty
26
NUT
104030 (4) Full qty
27
WASHER
13578321 (4) Full qty
28
SPACER
302111 (4) Full qty
29
BALL JOINT
216973 (2) Full qty
