Rear Suspension - Shock Absorber And Brake Disc

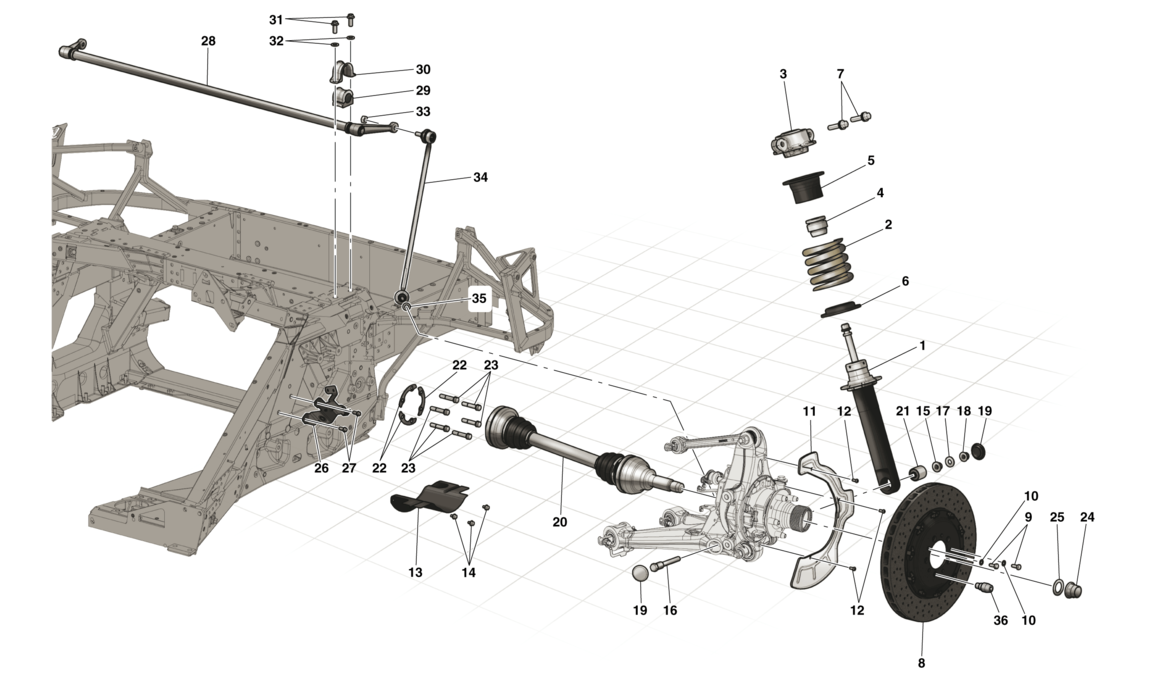

Schematic: Rear Suspension - Shock Absorber And Brake Disc
Loc
Part
Cond       Price
1
REAR SHOCK ABSORBER
306950 (2) Full qty
2
REAR SUSPENSION SPRING
283925 (2) Full qty
3
STOP CAP
250394 (2) Full qty
4
ENDSTOP BUSH
281221 (2) Full qty
5
UPPER SPRING SPACER
293649 (2) Full qty
6
LOWER SPRING SPACER
293648 (2) Full qty
7
SCREW
248790 (4) Full qty
8
REAR BRAKE DISC
298378 (2) Full qty
9
SCREW
228131 (4) Full qty
10
WASHER
228132 (4) Full qty
11
LH DISC SHIELD
257423 (1) Full qty
11
RH DISC SHIELD
257424 (1) Full qty
12
SCREW
250657 (6) Full qty
13
LH AXLE SHAFT HEAT SHIELD
283026 (1) Full qty
13
RH AXLE SHAFT HEAT SHIELD
283024 (1) Full qty
14
SCREW -M6 X 10-
16297624 (6) Full qty
15
BUSHING
237821 (2) Full qty
16
SCREW
246962 (2) Full qty
17
Washer
12646921 (2) Full qty
18
NUT
255271 (2) Full qty
19
CAP
14507987 (4) Full qty
20
AXLE SHAFT
302242 (2) Full qty
21
New       Price on Enquiry
157630 (2) Full qty
RS00314n
22
SHIM PLATE
220325 (6) Full qty
23
SCREW
237590 (12) Full qty
24
NUT
266664 (2) Full qty
25
WASHER
266686 (2) Full qty
26
LH REAR JOINT BRACKET
283934 (1) Full qty
26
RH REAR JOINT BRACKET
283935 (1) Full qty
27
SCREW
16286024 (4) Full qty
28
COMPL. TITANIUM REAR STABILISE…
302653 (1) Full qty
29
PLUG
302871 (2) Full qty
30
PLATE
305873 (2) Full qty
31
TITANIUM SCREW
299889 (4) Full qty
32
WASHER
11190574 (4) Full qty
33
NUT
12164714 (2) Full qty
34
LH BALL-JOINT TIE-ROD
301697 (1) Full qty
34
RH BALL-JOINT TIE-ROD
301698 (1) Full qty
35
New       £ 0.12
12601474 (2) Full qty
CC11464n
35
New       Price on Enquiry
12601474 (2) Full qty
CC11574n
36
STUD BOLT
304440 (10) Full qty
