Intake Manifold

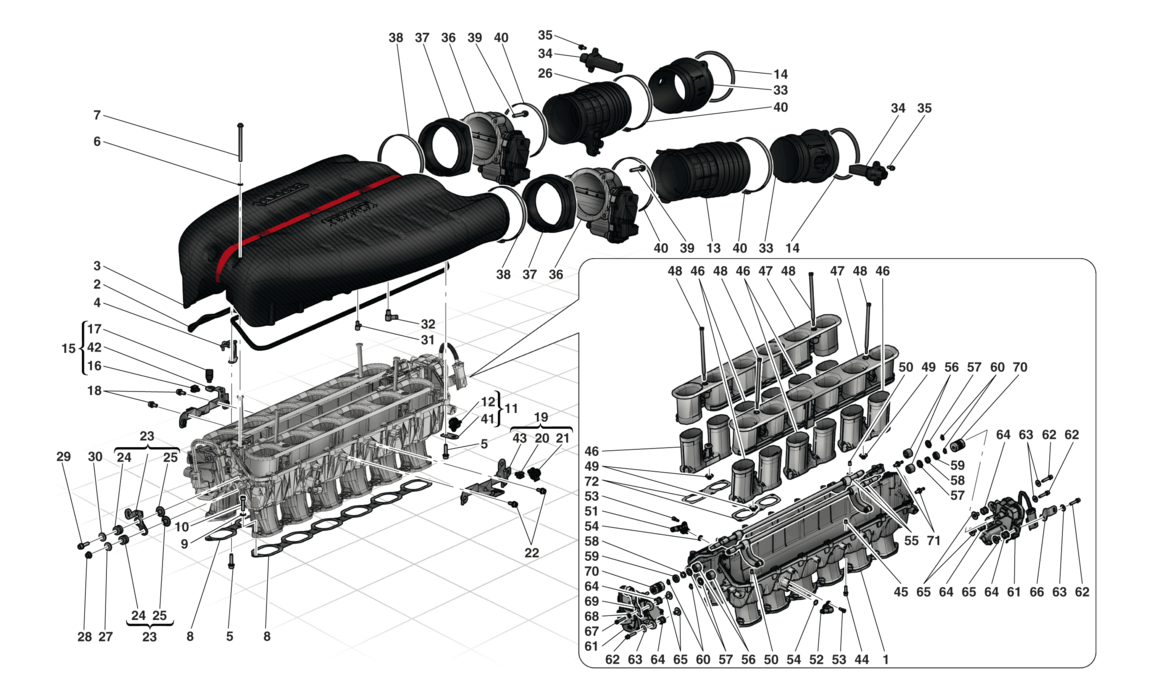

Schematic: Intake Manifold
Schematic: Intake Manifold
Loc
Part
Cond       Price
1
INTAKE MANIFOLD
307033 (1) Full qty
2
GASKET
275578 (1) Full qty
3
COMPL. INTAKE PLENUM IN CARBON…
300585 (1) Full qty
4
3-WAY CONNECTOR -Not for CINA,…
303147 (1) Full qty
5
SCREW -M6 X 25-
231620 (14) Full qty
6
GASKET
216292 (7) Full qty
7
SCREW
305712 (7) Full qty
8
GASKET
289568 (2) Full qty
9
Conic Washer 6.4x12x1.2
New       Price on Enquiry
11197774 (24) Full qty
GE35524n
10
SCREW
14305474 (24) Full qty
11
COMPL. BRACKET
285191 (1) Full qty
12
CLIP
191904 (1) Full qty
13
LH SLEEVE
300414 (1) Full qty
14
ADHESIVE FOAM -No longer suppl…
299984 (2) Full qty
14
ADHESIVE FOAM -No longer suppl…
307742 (2) Full qty
14
ADHESIVE FOAM
312172 (2) Full qty
15
COMPL. BRACKET
299274 (1) Full qty
16
CLIP
248674 (1) Full qty
17
CLIP
206536 (1) Full qty
18
Screw 6x16 ( For Tensioner Mount) F12
New       £ 0.76
248334 (2) Full qty
TC00257n
19
COMPL. BRACKET
299276 (1) Full qty
20
CLIP
248674 (1) Full qty
21
CLIP
191904 (1) Full qty
22
Screw 6x16 ( For Tensioner Mount) F12
New       £ 0.76
248334 (2) Full qty
TC00257n
23
COMPL. BRACKET
305730 (1) Full qty
24
GROMMET
259653 (2) Full qty
25
SHIM
259654 (2) Full qty
26
RH SLEEVE
300413 (1) Full qty
27
Flat Washer
12643701 (1) Full qty
28
NUT
14058421 (1) Full qty
29
SCREW -M6 X 25-
231620 (1) Full qty
30
Flat Washer
12643701 (1) Full qty
31
Union
128016 (2) Full qty
31
CAP -Applicable for CINA, USA,…
219786 (2) Full qty
32
CONNECTOR
174818 (2) Full qty
33
FLOW METER
303381 (2) Full qty
34
AIR FLOW SENSOR
297280 (2) Full qty
35
Screw
New       £ 1.34
169814 (4) Full qty
BW99327n
36
MOTORISED THROTTLE BODY -No lo…
303050 (2) Full qty
36
MOTORISED THROTTLE BODY
306470 (2) Full qty
37
SPACER
297627 (2) Full qty
38
RING CLAMP
297908 (2) Full qty
39
SCREW -M6 X 40-
231623 (8) Full qty
40
COLLAR
260582 (4) Full qty
41
BRACKET -After depletion, orde…
285190 (1) Full qty
42
BRACKET -After depletion, orde…
299275 (1) Full qty
43
BRACKET -After depletion, orde…
299277 (1) Full qty
44
SCREW -M6 X 25-
231620 (24) Full qty
45
Dowel 6x8x8
New       £ 0.89
102725 (12) Full qty
EL99607n
46
INTAKE DUCT BRANCH
272580 (6) Full qty
47
INTAKE TRUMPET BODY
305937 (2) Full qty
48
INTAKE TRUMPET GUIDE ROD
272584 (4) Full qty
49
ENDSTOP BUSH
273084 (4) Full qty
50
ALIGNMENT DOWEL
277190 (2) Full qty
51
RH UNION
243207 (1) Full qty
52
LH UNION
243208 (1) Full qty
53
SCREW -M6 X 14-
231616 (2) Full qty
54
O Ring
New       Price on Enquiry
123475 (2) Full qty
CC11704n
55
INTAKE TRUMPET ACTUATOR ROD
307270 (2) Full qty
56
BEARING
274418 (4) Full qty
57
WASHER
273129 (4) Full qty
58
SPRING
274419 (2) Full qty
59
SPRING COVER CUP
273089 (2) Full qty
60
SEEGER RING
11065874 (4) Full qty
61
INTAKE TRUMPET LIFT ACTUATOR -…
303974 (2) Full qty
61
INTAKE TRUMPET LIFT ACTUATOR
309282 (2) Full qty
62
SCREW -M6 X 30-
231621 (5) Full qty
63
WASHER
12643724 (5) Full qty
64
GROMMET
298430 (6) Full qty
65
SPACER
298429 (6) Full qty
66
REAR CONNECTOR BRACKET
303988 (1) Full qty
67
SCREW
286172 (1) Full qty
68
WASHER
13550221 (1) Full qty
69
BRAKE SERVO PIPE MOUNTING BRAC…
306312 (1) Full qty
70
FLEXIBLE JOINT
298678 (2) Full qty
71
THREADED CONNECTOR
299302 (2) Full qty
72
GASKET
284824 (6) Full qty
