Crankcase

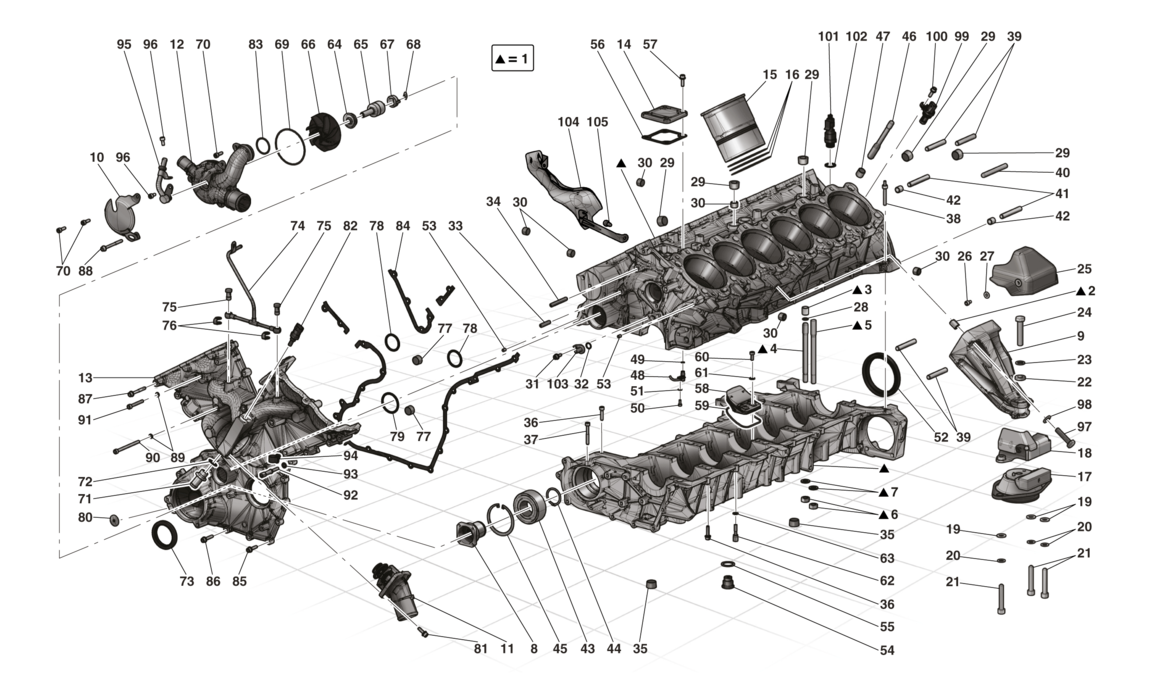

Schematic: Crankcase
Schematic: Crankcase
Loc
Part
Cond       Price
1
CRANKCASE-LOWER CRANKCASE SHEL…
306547 (1) Full qty
2
THREADED INSERT
218440 (8) Full qty
3
ALIGNMENT DOWEL
176421 (14) Full qty
4
STUD BOLT
217796 (14) Full qty
5
STUD BOLT
190426 (14) Full qty
6
Nut
133988 (28) Full qty
7
WASHER
178348 (28) Full qty
8
PUMP DRIVE JOINT
295132 (1) Full qty
9
LH ENGINE STRUT
267424 (1) Full qty
9
RH ENGINE STRUT
298098 (1) Full qty
10
PUMP GUARD
305332 (1) Full qty
11
THERMOSTAT/PRESSURE SWITCH
262913 (1) Full qty
12
PUMP COVER
305356 (1) Full qty
13
FRONT CRANKCASE COVER
301653 (1) Full qty
14
INSPECTION HATCH COVER
208451 (1) Full qty
15
CYLINDER SLEEVE
266366 (12) Full qty
16
O-RING
186251 (36) Full qty
17
COMPL. LH BUSHING
271887 (1) Full qty
17
COMPL. RH BUSHING
271886 (1) Full qty
18
LH BRACKET
291127 (1) Full qty
18
RH BRACKET
291126 (1) Full qty
19
WASHER
14496624 (6) Full qty
20
Washer
127497 (6) Full qty
21
SCREW
14308134 (6) Full qty
22
WASHER
10738021 (2) Full qty
23
Washer
127498 (2) Full qty
24
SCREW
15215834 (2) Full qty
25
HEAT SHIELD
292705 (2) Full qty
26
SCREW
14305024 (4) Full qty
27
WASHER
12644404 (4) Full qty
28
O-RING
134704 (28) Full qty
29
CAP
14325340 (5) Full qty
30
THREADED PLUG
164400 (6) Full qty
31
SCREW
282393 (1) Full qty
32
O Ring
New       Price on Enquiry
137192 (1) Full qty
CC11696n
33
STUD BOLT
13543124 (1) Full qty
34
STUD BOLT
13543824 (1) Full qty
35
CAP
14325340 (2) Full qty
36
SCREW -M6 X 25-
231620 (14) Full qty
37
SCREW -M6 X 45-
231624 (1) Full qty
38
STUD BOLT
219283 (1) Full qty
39
STUD BOLT
13546834 (4) Full qty
40
STUD BOLT
13547234 (1) Full qty
41
STUD BOLT
13546934 (2) Full qty
42
Dowel
100052 (2) Full qty
43
BEARING
128799 (1) Full qty
44
Circlip
11068376 (1) Full qty
45
Circlip
11061576 (1) Full qty
46
STUD BOLT
217968 (28) Full qty
47
ALIGNMENT DOWEL
185360 (4) Full qty
48
COMPL. PISTON COOLING NOZZLE
264087 (12) Full qty
49
O-RING
164877 (12) Full qty
50
SCREW
14302921 (12) Full qty
51
WASHER
11181474 (12) Full qty
52
GASKET
240214 (1) Full qty
53
ALIGNMENT DOWEL
175611 (2) Full qty
54
Transaxle Drain Plug
New       Price on Enquiry
104280 (1) Full qty
GB10488n
55
Copper Washer
New       Price on Enquiry
10261860 (1) Full qty
CC11528n
56
GASKET
248026 (1) Full qty
57
SCREW -M6 X 20-
231618 (4) Full qty
58
COMPLETE VALVE HOLDER
255136 (6) Full qty
59
GASKET
154691 (6) Full qty
60
SCREW
13026924 (12) Full qty
61
Conic Washer 6.4x12x1.2
New       Price on Enquiry
11197774 (12) Full qty
GE35524n
62
STUD BOLT
214412 (3) Full qty
63
Conic Washer 6.4x12x1.2
New       Price on Enquiry
11197774 (3) Full qty
GE35524n
64
WATER PUMP GASKET
252192 (1) Full qty
65
WATER PUMP BEARING
295219 (1) Full qty
66
WATER PUMP ROTOR
253795 (1) Full qty
67
JOINT
295218 (1) Full qty
68
CLIP
255939 (1) Full qty
69
GASKET
253797 (1) Full qty
70
SCREW -M6 X 18-
231617 (3) Full qty
71
CONNECTOR
253823 (1) Full qty
72
O-RING
11270550 (1) Full qty
73
GASKET
210359 (1) Full qty
74
VAPOUR VENT PIPE -No longer su…
299382 (1) Full qty
74
VAPOUR VENT PIPE
306599 (1) Full qty
75
PIPE UNION
211847 (2) Full qty
76
DUAL GASKET -No longer supplie…
292186 (2) Full qty
76
Copper washer
10260160 (4) Full qty
77
Threaded Insert M18
New       Price on Enquiry
127635 (2) Full qty
CH20046n
78
Front Cover O Ring
New       Price on Enquiry
183010 (2) Full qty
TC14204n
79
O-RING
289278 (1) Full qty
80
CAP
10159001 (1) Full qty
81
SCREW -M6 X 20-
231618 (4) Full qty
82
WATER/OIL TEMPERATURE SENSOR
180137 (1) Full qty
83
O-RING
271463 (1) Full qty
84
GASKET BETWEEN CRANKCASE AND F…
290006 (1) Full qty
85
SCREW -M6 X 25-
231620 (5) Full qty
86
SCREW -M6 X 30-
231621 (8) Full qty
87
SCREW -M6 X 50-
231625 (9) Full qty
88
SCREW
255495 (1) Full qty
89
GASKET
216292 (5) Full qty
90
SCREW
10589624 (3) Full qty
91
SCREW
14305924 (2) Full qty
92
STUD BOLT -M6 X 23-
260965 (1) Full qty
93
Conic Washer 6.4x12x1.2
New       Price on Enquiry
11197774 (1) Full qty
GE35524n
94
CLIP
198264 (1) Full qty
95
PUMP INLET PIPE
302329 (1) Full qty
96
SCREW -M6 X 12-
233600 (2) Full qty
97
SCREW
11234734 (8) Full qty
98
WASHER
11190574 (8) Full qty
99
RPM SENSOR
276125 (1) Full qty
100
SCREW -M6 X 20-
2316181 (1) Full qty
101
PRESSURE TRANSMITTER -No longe…
2012071 (1) Full qty
101
PRESSURE TRANSMITTER
3040741 (1) Full qty
102
GASKET -No longer supplied-
102599601 (1) Full qty
103
COMPL. CHAIN COOLING NOZZLE
2949441 (1) Full qty
104
HEAT SHIELD
2902951 (1) Full qty
105
SCREW -M6 X 12-
2336002 (2) Full qty
