Secondary Air System

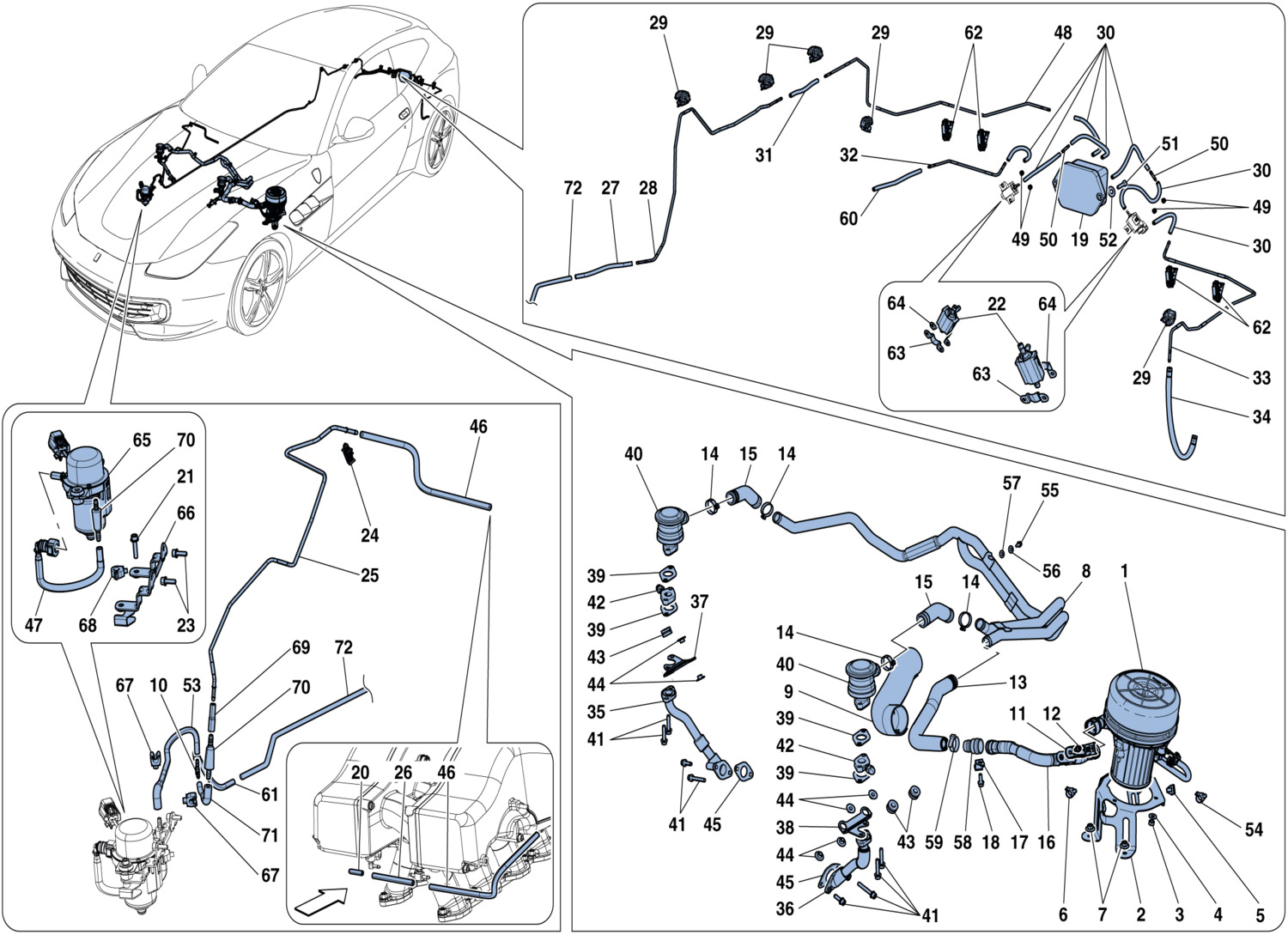

Schematic: Secondary Air System
Schematic: Secondary Air System
Loc
Part
Cond       Price
1
SECONDARY AIR SYSTEM PUMP
247795 (1) Full qty
2
PUMP MOUNTING BRACKET
269285 (1) Full qty
3
NUT
15896214 (3) Full qty
4
WASHER
11194674 (3) Full qty
5
CLIP
253769 (1) Full qty
6
CLIP
198253 (1) Full qty
7
NUT
14039614 (3) Full qty
8
ALUMINIUM PIPE
274980 (1) Full qty
9
SELF-ADHESIVE ALUMINIUM STRIP
276435 (1) Full qty
9
HEAT REFLECTIVE SLEEVE
276428 (1) Full qty
10
THREE WAY
257691 (1) Full qty
11
PRESSURE SENSOR
282849 (1) Full qty
12
SCREW -M6 X 12-
233600 (1) Full qty
13
CONNECTOR PIPE
267082 (1) Full qty
14
COLLAR
13432970 (5) Full qty
15
CONNECTOR PIPE
261051 (2) Full qty
16
PUMP SIDE SECONDARY AIR SYSTEM…
323279 (1) Full qty
17
BRACKET
267133 (1) Full qty
18
SCREW -M6 X 18-
231617 (1) Full qty
19
VACUUM ACCUMULATOR TANK
198339 (1) Full qty
20
CAP FOR UNION
225098 (1) Full qty
21
SCREW -M6 X 30-
231621 (2) Full qty
22
SOLENOID VALVE
178309 (2) Full qty
23
SCREW -M6 X 18-
231617 (2) Full qty
24
CLIP
291408 (1) Full qty
25
RIGID BYPASS PIPE ON FIREWALL
324519 (1) Full qty
26
RUBBER PIPE -D. 3.5-8 X 95-
261684 (1) Full qty
27
RUBBER PIPE -D. 3.5-8 X 115-
316035 (1) Full qty
28
RIGID PIPE
315760 (1) Full qty
29
CLIP -1 compartment-
234284 (2) Full qty
29
CLIP
234285 (3) Full qty
30
RUBBER PIPE -D. 3.5 X 100-
294268 (3) Full qty
30
RUBBER PIPE -D. 3.5 X 70-
313274 (1) Full qty
30
RUBBER PIPE -D. 3.5 X 140-
255096 (2) Full qty
30
Pipe
121828 (1) Full qty
31
RUBBER PIPE -D. 3.5 X 120-
199691 (1) Full qty
32
RH RIGID PIPE
328388 (1) Full qty
33
LH RIGID PIPE
269073 (1) Full qty
34
RUBBER PIPE -No longer supplie…
148204 (1) Full qty
34
RUBBER PIPE
340098 (1) Full qty
35
RH SECONDARY AIR INLET PIPE
257255 (1) Full qty
36
LH SECONDARY AIR INLET PIPE
257256 (1) Full qty
37
RH BRACKET
257257 (1) Full qty
38
LH BRACKET
257258 (1) Full qty
39
Secondary Air Pipe Gasket
New       Price on Enquiry
186781 (4) Full qty
EX10818n
40
SECONDARY AIR SYSTEM VALVE
284235 (2) Full qty
41
SCREW -M6 X 20-
231618 (2) Full qty
41
SCREW -M6 X 40-
231623 (2) Full qty
41
SCREW -M6 X 30-
231621 (4) Full qty
42
SPACER ASSEMBLY
264020 (2) Full qty
43
GROMMET
177576 (4) Full qty
44
FLANGED BUSHING
183898 (8) Full qty
45
GASKET
202980 (2) Full qty
46
Pipe
115002 (1) Full qty
47
RUBBER PIPE
329928 (1) Full qty
48
RIGID PIPE
269072 (1) Full qty
49
Nut
14059111 (4) Full qty
50
METAL TWO-WAY FITTING
302972 (2) Full qty
51
SCREW
14304424 (2) Full qty
51
SCREW
14304424 (2) Full qty
52
WASHER
11181574 (2) Full qty
53
RUBBER PIPE
168248 (1) Full qty
54
CLIP
262559 (2) Full qty
55
SCREW -No longer supplied- -Re…
14305124 (1) Full qty
55
SCREW -M6 X 12-
233600 (1) Full qty
56
Conic Washer 6.4x12x1.2
New       Price on Enquiry
11197774 (1) Full qty
GE35524n
57
WASHER
12643724 (1) Full qty
58
COUPLING
249483 (1) Full qty
59
COLLAR
13432970 (1) Full qty
60
RUBBER PIPE -D. 3.5-8 X 320-
340099 (1) Full qty
60
RUBBER PIPE -D. 3.5-8 X 320-
340099 (1) Full qty
61
RUBBER PIPE
159539 (1) Full qty
62
CLIP
234286 (4) Full qty
63
SOLENOID VALVE MOUNTING BRACKE…
294259 (2) Full qty
64
SOLENOID VALVE MOUNTING BRACKE…
294260 (2) Full qty
65
VACUUM PUMP
223532 (1) Full qty
66
PUMP MOUNTING BRACKET
320069 (1) Full qty
67
CLIP
199589 (2) Full qty
68
CLIP
67063200 (1) Full qty
69
RUBBER PIPE
295441 (1) Full qty
70
VACUUM RETAINER VALVE
295349 (2) Full qty
71
RUBBER PIPE
295677 (1) Full qty
72
EMISSION CONTROL SYSTEM PIPE, …
268394 (1) Full qty
