Ac System - Water And Freon

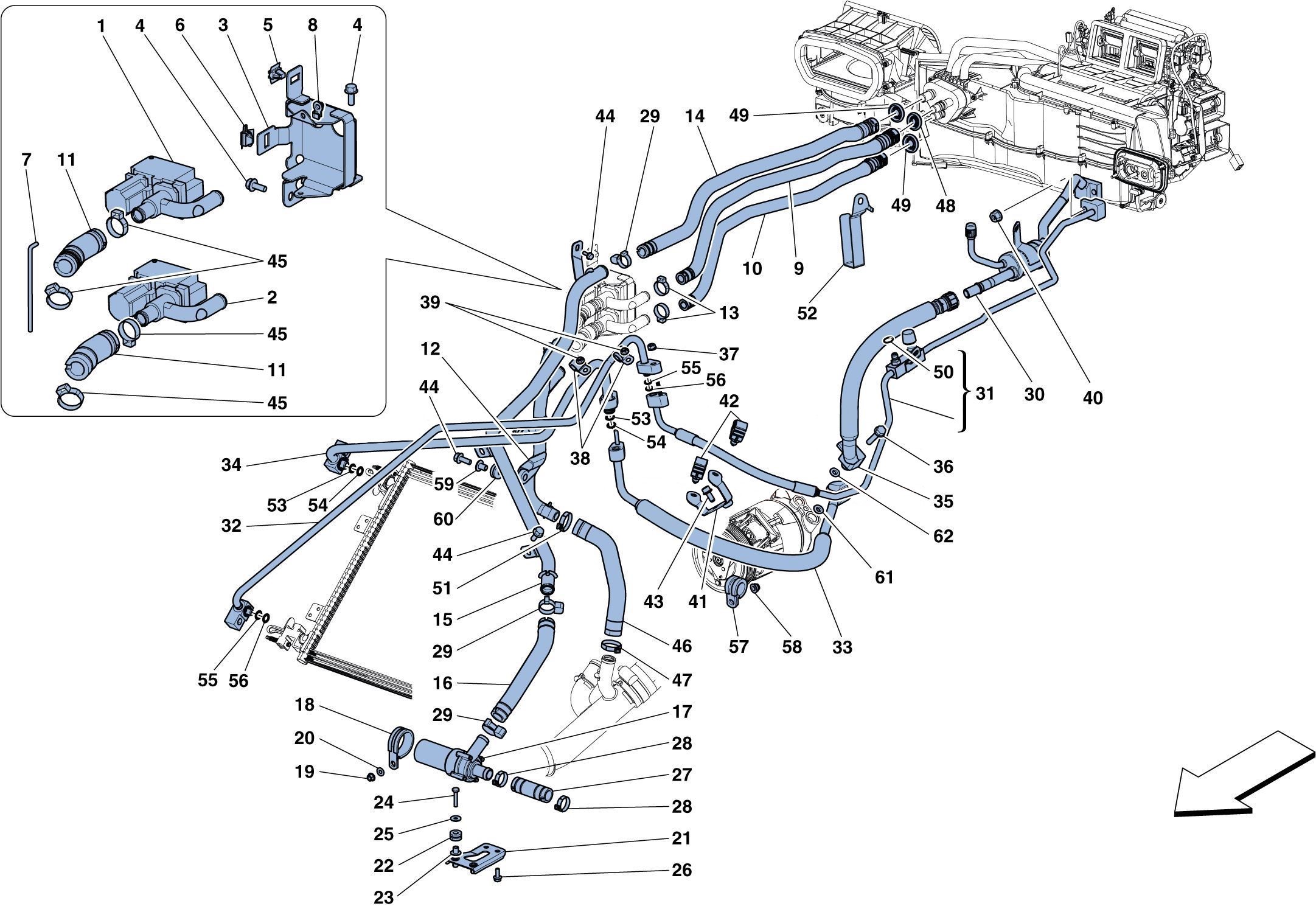

Schematic: Ac System - Water And Freon
Loc
Part
Cond       Price
1
RH CYLINDER BANK TGK VALVE
67635900 (1) Full qty
2
LH CYLINDER BANK TGK VALVE
67444900 (1) Full qty
3
NUT
14058419 (2) Full qty
4
TGK VALVE MOUNTING BRACKET
84066200 (1) Full qty
5
TGK VALVE FASTENER ROD
67933600 (1) Full qty
6
TIE-ROD RETAINER CLIP
64215300 (1) Full qty
7
PIPE FROM HEATER TO UPPER TGK …
266390 (1) Full qty
8
COLLAR CLAMP -Applicable after…
262109 (6) Full qty
9
PIPE FROM HEATER TO LOWER TGK …
266391 (1) Full qty
10
CONNECTOR PIPE
292150 (2) Full qty
11
PIPE FROM TGK TO ENGINE
292151 (1) Full qty
12
New       Price on Enquiry
149707 (2) Full qty
CS11902n
13
New       Price on Enquiry
103549 (2) Full qty
AC00210n
14
CONNECTOR PIPE
273206 (1) Full qty
15
BRACKET
272548 (1) Full qty
16
CLIP
252473 (1) Full qty
17
CLIP
253769 (1) Full qty
18
GASKET
81970900 (1) Full qty
19
GASKET
81895900 (2) Full qty
20
COLLAR
296778 (1) Full qty
21
RING CLAMP
13433370 (1) Full qty
22
SCREW
16286024 (4) Full qty
23
SCREW
16286224 (2) Full qty
24
WASHER
12643724 (2) Full qty
25
COMPL. IHX GAS PIPE
320011 (1) Full qty
26
SCREW -M6 X 30-
231621 (1) Full qty
27
WASHER
12643724 (1) Full qty
28
New       Price on Enquiry
103549 (1) Full qty
AC00210n
29
New       Price on Enquiry
149707 (1) Full qty
CS11902n
30
CLIP
298580 (2) Full qty
31
GAS PIPE FROM DISCONNECTOR UNI…
320013 (1) Full qty
32
SCREW
16286024 (6) Full qty
33
SCREW -M8 X 40-
16044024 (1) Full qty
34
NUT
14066021 (2) Full qty
35
NUT
14040614 (2) Full qty
36
NUT
14040611 (1) Full qty
37
SCREW -M5 X 16-
16285127 (2) Full qty
38
COLLAR
13097190 (1) Full qty
39
Hose fastening bracket
10441490 (1) Full qty
40
BRACKET WITH SHEATH -D. 12-
10441390 (1) Full qty
41
Clamp
10441290 (1) Full qty
42
GAS PIPE FROM IHX TO COMPRESSO…
320012 (1) Full qty
43
METAL PIPE TO PUMP
271752 (1) Full qty
44
PIPE FROM PUMP TO AC UNIT
276915 (1) Full qty
45
PIPE FROM CONDENSER TO DISCONN…
325555 (1) Full qty
46
PIPE FROM DISCONNECTOR UNION T…
325554 (1) Full qty
47
CONNECTOR PIPE
267538 (1) Full qty
48
CONNECTOR PIPE
260083 (1) Full qty
49
SCREW -M6 X 14-
231616 (2) Full qty
50
RING CLAMP
178054 (4) Full qty
51
IDLE SPEED PUMP MOUNTING BRACK…
326221 (1) Full qty
52
IDLE WATER RECIRCULATION PUMP
291349 (1) Full qty
53
CLIP
82268600 (2) Full qty
54
BRACKET -Fastening AC pipes to…
268487 (1) Full qty
55
CLIP
259508 (1) Full qty
56
CLIP
267177 (1) Full qty
57
NUT
14066021 (3) Full qty
