Rear Suspension - Shock Absorber And Brake Disc

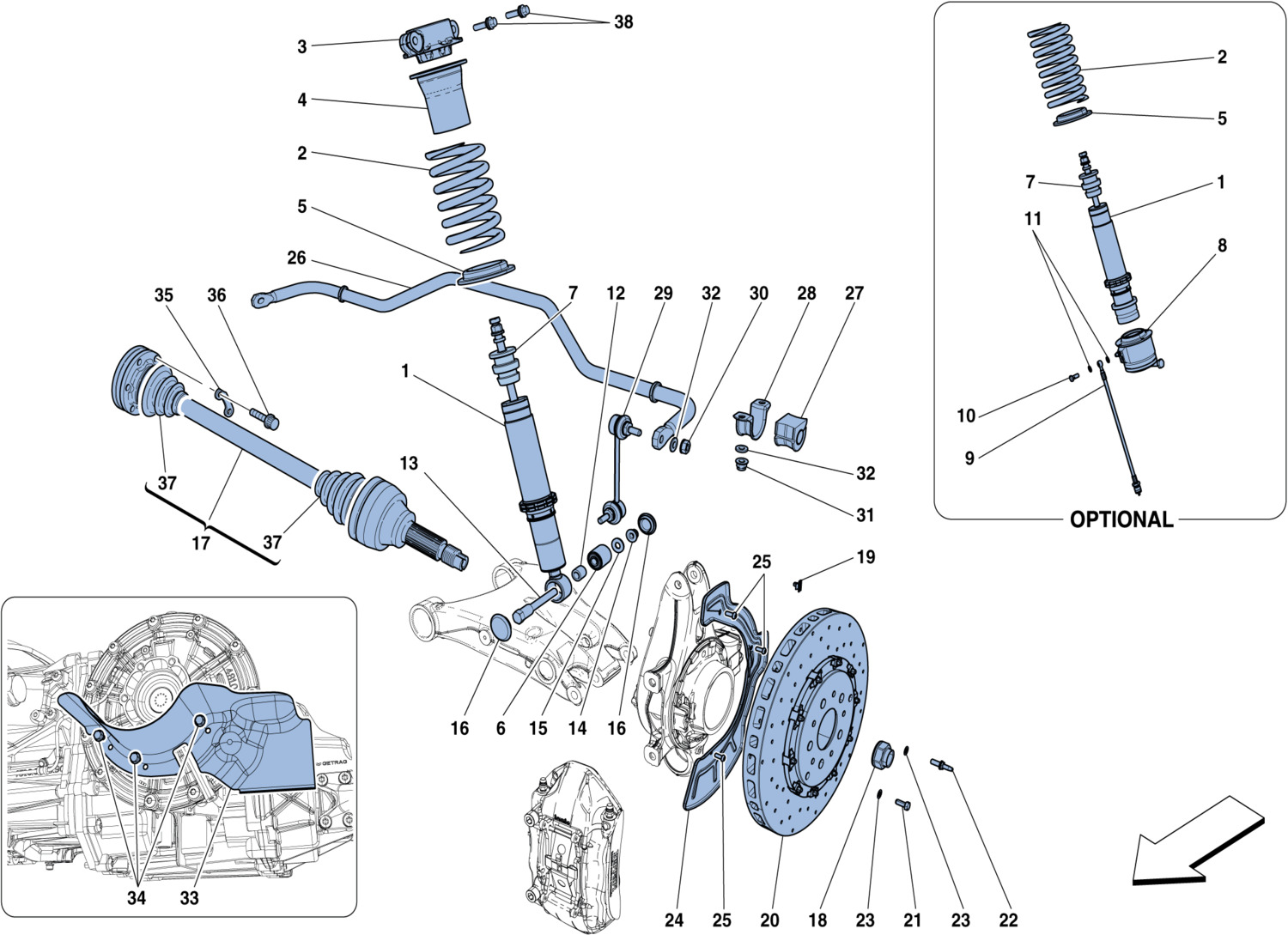

Schematic: Rear Suspension - Shock Absorber And Brake Disc
Loc
Part
Cond       Price
1
REAR SHOCK ABSORBER
309805 (2) Full qty
1
REAR SHOCK ABSORBER -Version w…
309807 (2) Full qty
2
SPRING
309151 (2) Full qty
2
SPRING -Version with lifter-
269637 (2) Full qty
3
STOP CAP
274308 (2) Full qty
4
UPPER SPACER
212517 (2) Full qty
5
LOWER SPACER
211236 (2) Full qty
6
New       Price on Enquiry
157630 (2) Full qty
RS00314n
7
ENDSTOP BUSH
267936 (2) Full qty
8
COMPL. ACTUATOR -Version with …
300214 (2) Full qty
9
RUBBER PIPE -Version with lift…
260408 (2) Full qty
10
PIPE UNION
261587 (2) Full qty
11
GASKET
259638 (4) Full qty
12
BUSHING
237821 (2) Full qty
13
SCREW
246962 (2) Full qty
14
NUT
255271 (2) Full qty
15
Washer
12646921 (2) Full qty
16
CAP
14507987 (6) Full qty
17
AXLE SHAFT
274635 (2) Full qty
18
NUT
203780 (2) Full qty
19
FASTENER CLIP
204781 (2) Full qty
20
BRAKE DISC
296894 (2) Full qty
21
SCREW
228131 (2) Full qty
22
New       £ 4.68
104370 (2) Full qty
BS00951n
23
WASHER
228132 (4) Full qty
24
RH DISC SHIELD
257424 (1) Full qty
24
LH DISC SHIELD
257423 (1) Full qty
25
SCREW
250657 (6) Full qty
26
STABILISER BAR
262790 (1) Full qty
27
PLUG
236242 (2) Full qty
28
RETAINER BRACKET
244778 (2) Full qty
29
SPHERICAL TIE-ROD -On lower LH…
242392 (1) Full qty
29
SPHERICAL TIE-ROD -On lower RH…
242391 (1) Full qty
30
NUT
12164714 (2) Full qty
31
NUT
12578321 (2) Full qty
32
New       £ 0.12
12601474 (4) Full qty
CC11464n
32
New       Price on Enquiry
12601474 (4) Full qty
CC11574n
33
RH AXLE SHAFT HEAT SHIELD
259461 (1) Full qty
33
LH AXLE SHAFT HEAT SHIELD
248707 (1) Full qty
34
SCREW -M6 X 14-
16296924 (6) Full qty
35
SHIM PLATE
220325 (6) Full qty
36
SCREW
237590 (12) Full qty
37
GAITER REPLACEMENT KIT -Wheel/…
70006023 (1) Full qty
38
SCREW
248790 (4) Full qty
