Complete Pedal Board Assembly

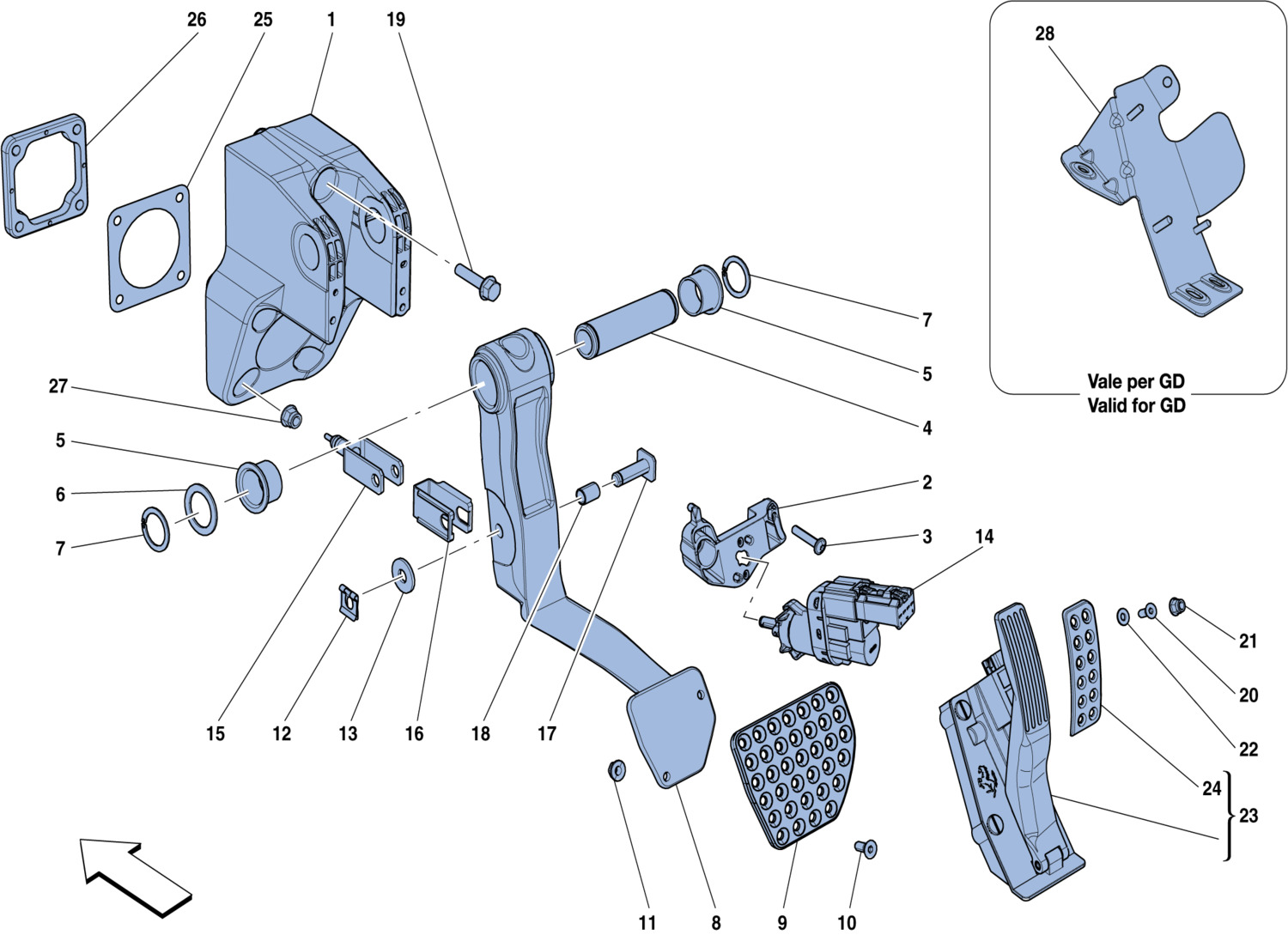

Schematic: Complete Pedal Board Assembly
Loc
Part
Cond       Price
1
PEDAL BOARD MOUNTING
261612 (1) Full qty
2
F1 SWITCH BRACKET
317720 (1) Full qty
3
SCREW
240931 (2) Full qty
4
PIN
240930 (1) Full qty
5
PIVOT BUSHING
240771 (2) Full qty
6
RUBBER WASHER
240929 (1) Full qty
7
SEEGER RING FOR SHAFT
12700076 (2) Full qty
8
BRAKE PEDAL -Not for GD-
261832 (1) Full qty
8
BRAKE PEDAL -Applicable for GD…
261846 (1) Full qty
9
DRILLED PLATE
240987 (1) Full qty
10
New       £ 0.31
14441324 (2) Full qty
PB14047n
11
NUT
12578111 (2) Full qty
12
SAFETY CLIP
11064176 (1) Full qty
13
RUBBER WASHER
245181 (1) Full qty
14
PUSHBUTTON SWITCH
318205 (1) Full qty
14
Push Button Switch - Pedal Boa…
201957 (1) Full qty
15
BRAKE SERVO LINKAGE YOKE
245178 (1) Full qty
16
CAGE
245179 (1) Full qty
17
PIN
245180 (1) Full qty
18
BUSHING
260639 (1) Full qty
19
SCREW -M8 X 35-
16287421 (1) Full qty
20
PRESS-FIT BUTTON
69855300 (3) Full qty
21
Selflocking nut
12575421 (3) Full qty
22
WASHER
12646624 (3) Full qty
23
New       £ 126.05
243117 (1) Full qty
EL99581n
24
ACCELERATOR PEDAL PLATE
243120 (1) Full qty
25
GASKET
190378 (1) Full qty
26
SHIM
196080 (1) Full qty
27
NUT
12578211 (4) Full qty
28
ACCELERATOR PEDAL BRACKET -App…
82467100 (1) Full qty
