Flat Undertray And Wheelhouses

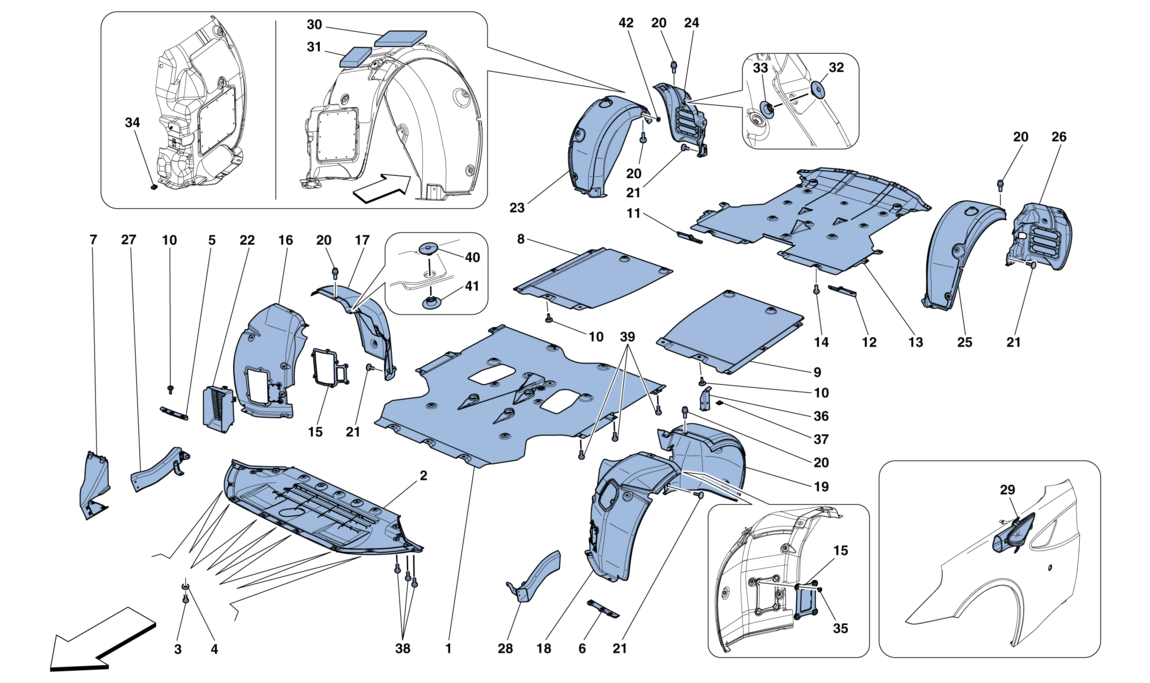

Schematic: Flat Undertray And Wheelhouses
Loc
Part
Cond       Price
1
COMPL. FRONT FLAT UNDERTRAY SE…
84056800 (1) Full qty
2
COMPL. FRONT FLAT UNDERTRAY SE…
84056900 (1) Full qty
3
SCREW -No longer supplied- -Re…
81290900 (12) Full qty
3
SCREW
80874700 (6) Full qty
4
SHIM
83314300 (11) Full qty
5
RH FRONT DAM
83719100 (1) Full qty
6
LH FRONT DAM
83719200 (1) Full qty
7
RH AIR DUCT, FIXED PART
83565500 (1) Full qty
7
RH AIR DUCT, FIXED PART
84092900 (1) Full qty
8
RH CENTRE FLAT UNDERTRAY SECTI…
82602000 (1) Full qty
9
LH CENTRE FLAT UNDERTRAY SECTI…
82602100 (1) Full qty
10
SCREW
80874700 (4) Full qty
10
SCREW -No longer supplied- -Re…
81290900 (6) Full qty
11
RH REAR DAM
83719800 (1) Full qty
12
LH REAR DAM
83719900 (1) Full qty
13
REAR FLAT UNDERTRAY SECTION
84057000 (1) Full qty
14
SCREW
80874700 (2) Full qty
14
SCREW -No longer supplied- -Re…
81290900 (9) Full qty
15
RH SWITCH SURROUND
83849900 (1) Full qty
15
RH SWITCH SURROUND
83584900 (1) Full qty
15
LH SWITCH SURROUND
83585000 (1) Full qty
16
COMPL. SHIELD FOR FRONT PART O…
83638700 (1) Full qty
16
COMPL. SHIELD FOR FRONT PART O…
83296700 (1) Full qty
17
SHIELD FOR REAR PART OF FRONT …
83296900 (1) Full qty
18
COMPL. SHIELD FOR FRONT PART O…
83638800 (1) Full qty
18
COMPL. SHIELD FOR FRONT PART O…
83296800 (1) Full qty
19
SHIELD FOR REAR PART OF FRONT …
83297000 (1) Full qty
20
SCREW -M6 X 22-
80874900 (30) Full qty
21
FASTENER BUTTON
83222200 (12) Full qty
22
AIR OUTLET DUCT
83584800 (1) Full qty
22
AIR OUTLET DUCT
84093000 (1) Full qty
23
SHIELD FOR FRONT PART OF REAR …
84055400 (1) Full qty
24
SHIELD FOR REAR PART OF REAR R…
84055200 (1) Full qty
25
SHIELD FOR FRONT PART OF REAR …
84055700 (1) Full qty
26
SHIELD FOR REAR PART OF REAR L…
84055600 (1) Full qty
27
RH BRAKE AIR DUCT
83565300 (1) Full qty
28
LH BRAKE AIR DUCT
83565400 (1) Full qty
29
FRONT RH FENDER AIR OUTLET DUC…
84243600 (1) Full qty
29
FRONT LH FENDER AIR OUTLET DUC…
84243700 (1) Full qty
30
INSULATION FOR WHEELHOUSE
84058800 (1) Full qty
31
INSULATION FOR FUEL FILLER NEC…
84059100 (1) Full qty
32
MALE CLIP
84247300 (2) Full qty
33
FEMALE CLIP
84247400 (2) Full qty
34
CLIP
80874300 (7) Full qty
35
New       £ 2.19
256490 (4) Full qty
BW99303n
36
LH MOUNT BRACKET
84486400 (1) Full qty
36
LH MOUNT BRACKET
84920600 (1) Full qty
36
RH MOUNT BRACKET
84151800 (1) Full qty
36
RH MOUNT BRACKET
84920500 (1) Full qty
37
BRACKET WITH COLLAR -Version w…
66927700 (2) Full qty
