Exhaust System -Not For Usa, Cdn, Aus, Ch

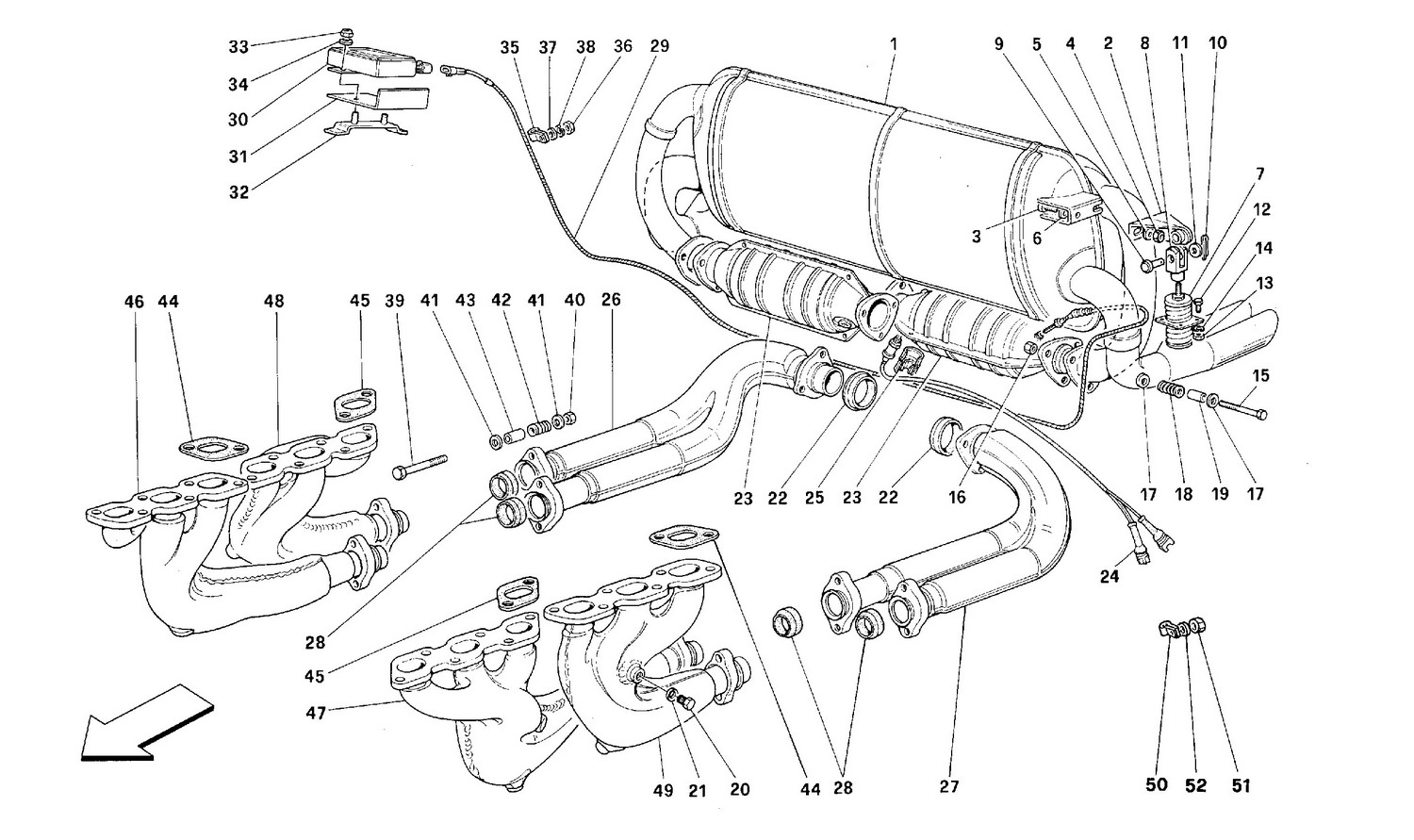

Schematic: Exhaust System -Not For Usa, Cdn, Aus, Ch
Loc
Part
Cond       Price
1
Exhaust silencer
161819 (1) Full qty
2
Bracket
122689 (2) Full qty
3
SCREW
16043534 (4) Full qty
4
New       £ 9.58
114748 (4) Full qty
EX10850n
5
Washer
10519624 (4) Full qty
6
Washer
12646724 (2) Full qty
7
Exhaust Mounts
106052 (2) Full qty
8
Fork
108257 (2) Full qty
9
Pin
10033414 (2) Full qty
10
Split pin
10796440 (2) Full qty
11
Washer
103167 (2) Full qty
12
Screw
10977624 (8) Full qty
13
Nut to fixing front and rear s…
15896470 (8) Full qty
14
Washer
127493 (8) Full qty
15
Screw
121676 (12) Full qty
16
Nut
121677 (12) Full qty
17
Washer
121678 (24) Full qty
18
Spring
121674 (12) Full qty
19
Spacer
121675 (12) Full qty
20
New       Price on Enquiry
10298460 (12) Full qty
EX10416n
21
New       Price on Enquiry
110860 (12) Full qty
EX10414n
22
Exhaust Flange Gasket
154985 (4) Full qty
23
Pre-muffler
151509 (2) Full qty
23
New       £ 3146.00
149304 (2) Full qty
EX10562n
24
Oxigen sensor
161853 (2) Full qty
24
Oxigen sensor
162206 (2) Full qty
25
Oxygen sensor protection
121833 (2) Full qty
26
RH Extension
148140 (1) Full qty
27
LH Extension
148141 (1) Full qty
28
Exhaust Flange Gasket
154981 (4) Full qty
29
Thermocouple
151166 (2) Full qty
30
Central unit
154470 (2) Full qty
31
Plate
150043 (2) Full qty
32
Plate
150044 (2) Full qty
33
Nut
12574115 (4) Full qty
34
Washer
10519377 (4) Full qty
35
Clamp ? 4 mm
10420301 (4) Full qty
36
Nut
New       Price on Enquiry
15896211 (4) Full qty
CH11996n
37
Washer
14496401 (4) Full qty
38
Washer
106850 (4) Full qty
39
Screw
125924 (8) Full qty
41
Washer
112761 (16) Full qty
42
Exhaust Clamp Spring 246+
111743 (8) Full qty
43
New       £ 3.29
114749 (8) Full qty
EX10751n
44
New       £ 21.78
138076 (6) Full qty
EX10246n
45
New       £ 21.78
146658 (6) Full qty
EX10250n
46
R.H. front exhaust manifold
145519 (1) Full qty
47
L.H. front exhaust manifold
145520 (1) Full qty
48
R.H. rear exhaust manifold
145521 (1) Full qty
49
L.H. rear exhaust manifold
145522 (1) Full qty
