Front Hood

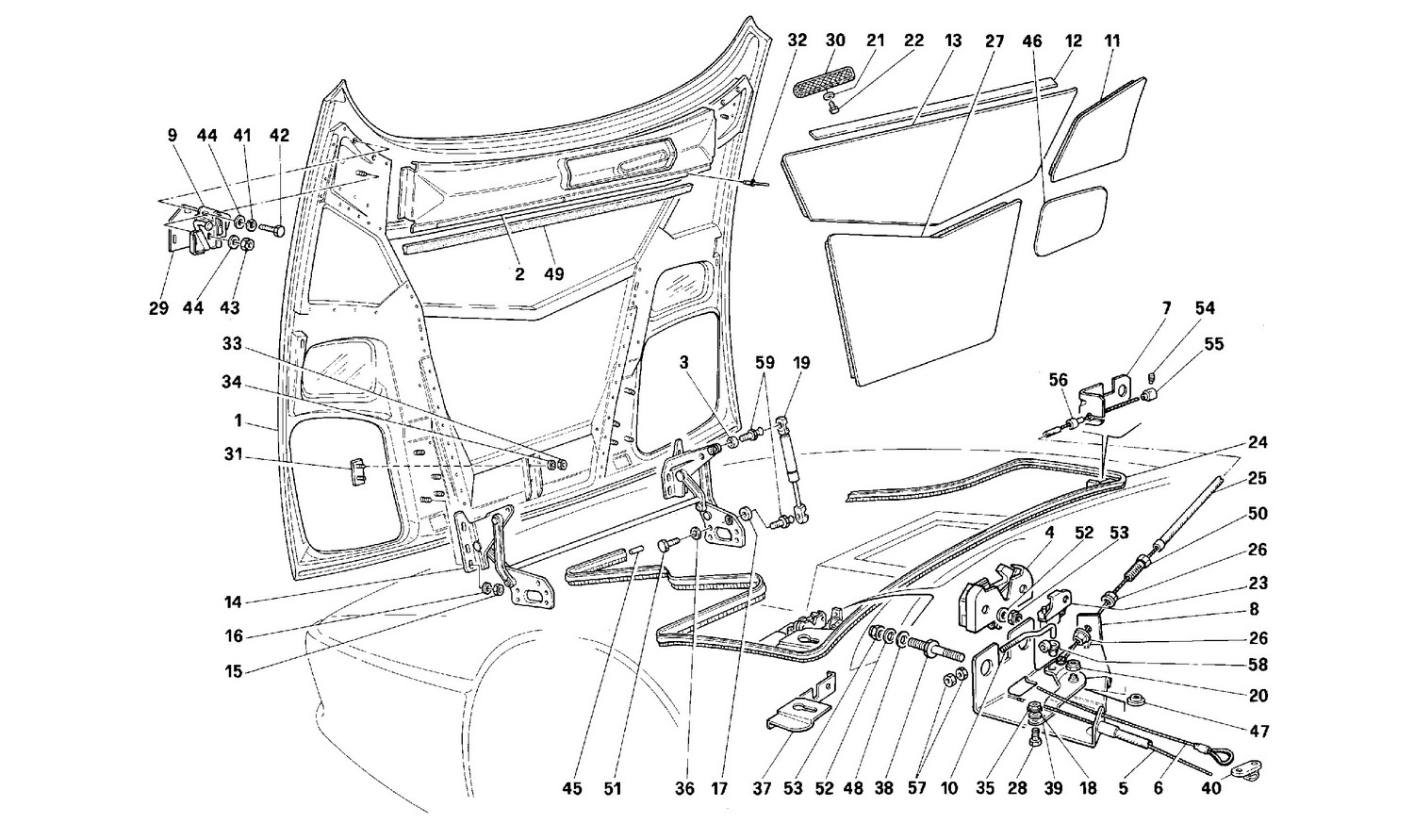

Schematic: Front Hood
Schematic: Front Hood
Loc
Part
Cond       Price
1
Front bonnet
64630600 (1) Full qty
1
Front bonnet
64630700 (1) Full qty
2
Water shield panel
64441500 (1) Full qty
2
Water shield panel
64543800 (1) Full qty
3
Upper spacer
64687100 (2) Full qty
4
Bonnet Lock 328
Used       £ 159.50
60277407 (2) Full qty
BW99319u
5
Cable for opening bonnet
63088400 (1) Full qty
6
Emergency cable
63088500 (1) Full qty
7
R.H. sheath support plate
61495900 (1) Full qty
8
Sheath support plate
63114300 (1) Full qty
9
L.H. lock striker
63051700 (1) Full qty
9
R.H. lock striker
63051600 (1) Full qty
10
L.H. striker rod (LHD)
61496200 (1) Full qty
10
R.H. striker rod (RHD)
61532900 (1) Full qty
11
R.H. lateral insulating
64454600 (1) Full qty
11
L.H. lateral insulating
64454000 (1) Full qty
12
Adhesive polyurethan
64641700 (1) Full qty
12
Adhesive polyurethan
64454200 (1) Full qty
13
Central upper insulating
64454300 (1) Full qty
14
Hinge
64685400 (2) Full qty
15
Nut
16104125 (4) Full qty
16
Washer
12642024 (4) Full qty
17
Lower spacer
64687200 (2) Full qty
18
WASHER
62764900 (3) Full qty
19
Stabilus
63671500 (2) Full qty
20
Nut
12574211 (1) Full qty
21
WASHER
12643777 (4) Full qty
22
SCREW
10902087 (4) Full qty
23
Switch
61501200 (2) Full qty
24
Bonnet gasket
64441000 (1) Full qty
25
Right lock cable
61497100 (1) Full qty
26
Nut
14084211 (2) Full qty
27
Sound insulation, central lowe…
64454800 (1) Full qty
28
Screw
62764700 (3) Full qty
29
L.H. Zincfoil
153957 (1) Full qty
29
R.H. Zincfoil
153956 (1) Full qty
30
R.H. net for air intake
64453700 (1) Full qty
30
L.H. net for air intake
64454100 (1) Full qty
31
Nose Badge
New       Price on Enquiry
60795400 (1) Full qty
BW99168n
32
Rivet
64386000 (48) Full qty
33
Nut to fixing front and rear s…
15896470 (1) Full qty
34
Washer
149951 (2) Full qty
35
Nut
14084111 (3) Full qty
36
Washer
12625201 (8) Full qty
37
L.H. bracket for lock
63094600 (1) Full qty
37
R.H. bracket for lock
63094500 (1) Full qty
38
Screw
62770900 (2) Full qty
39
Lever
63114100 (1) Full qty
40
Hook
63435000 (1) Full qty
41
Clutch Bolt Wavy Washer 550/57…
127494 (6) Full qty
42
Screw
10902221 (6) Full qty
43
Nut
12575411 (2) Full qty
44
Flat Washer
12643701 (8) Full qty
45
Connection tube
62781300 (1) Full qty
46
R.H. front insulating
64454400 (1) Full qty
46
L.H. front insulating
64454500 (1) Full qty
47
Bushing
63117400 (1) Full qty
48
Washer
14496701 (4) Full qty
50
Drilled screw
62764800 (1) Full qty
51
Screw
16043211 (8) Full qty
52
WASHER
12640624 (6) Full qty
54
Dowel
60276805 (1) Full qty
55
Clamp
60276607 (1) Full qty
56
Bushing
63434400 (1) Full qty
57
Nut
10794011 (2) Full qty
58
Door pull cable clip
New       Price on Enquiry
14578283 (2) Full qty
NT35363n
59
Pin for stabilus
64537400 (4) Full qty
