Body - Internal Components

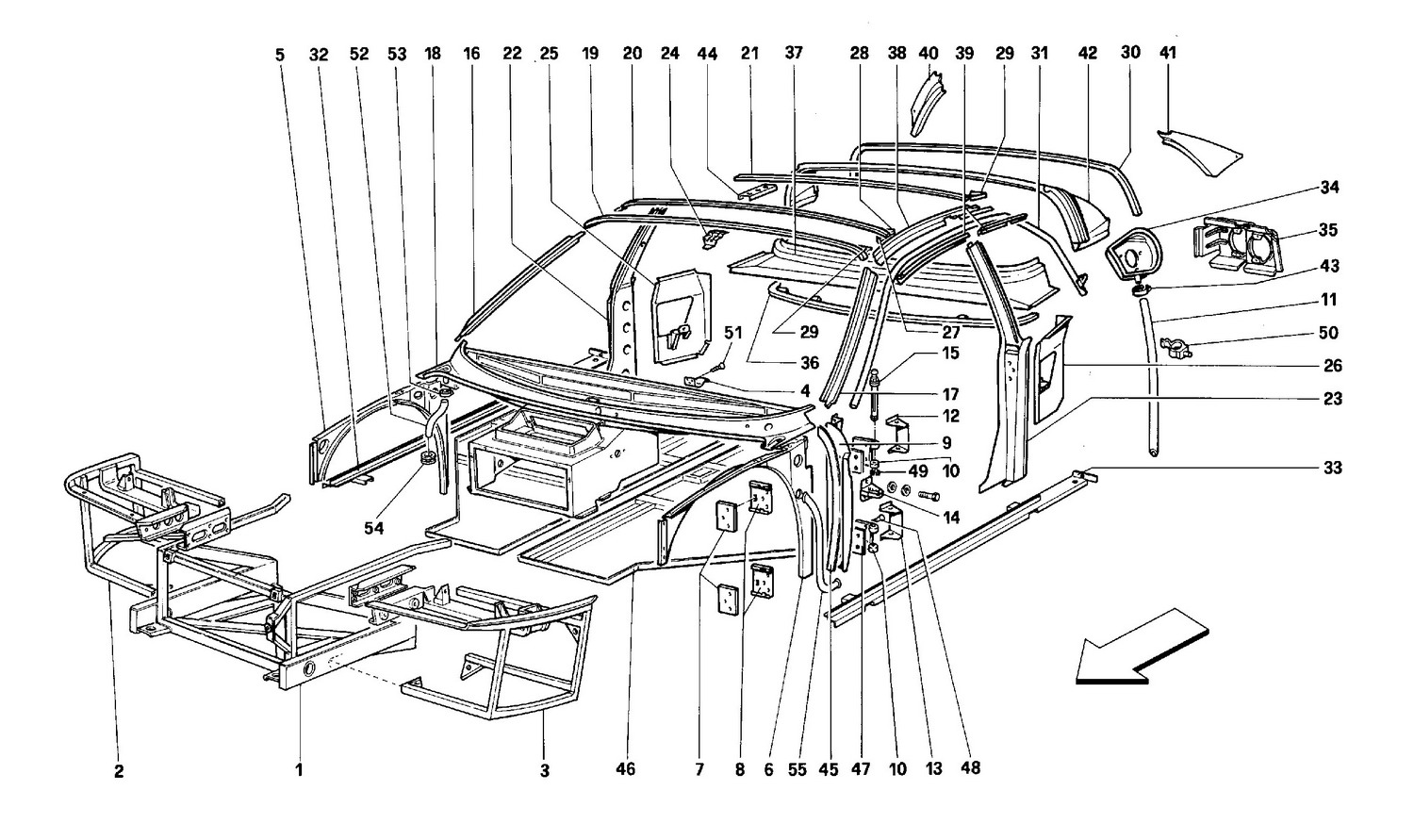

Schematic: Body - Internal Components
Schematic: Body - Internal Components
Loc
Part
Cond       Price
1
Front central frame
144654 (1) Full qty
2
R.H. front frame
165183 (1) Full qty
3
L.H. front frame
165185 (1) Full qty
4
Clip
61483100 (1) Full qty
5
R.H. front inner body side
63037300 (1) Full qty
6
L.H. front inner body side
63037400 (1) Full qty
7
Nut screw plate
61483400 (4) Full qty
8
Seat nut screw plate
61483500 (4) Full qty
9
L.H. front mudguard strip
63455100 (1) Full qty
9
L.H. front mudguard strip
63046400 (1) Full qty
9
R.H. front mudguard strip
63455000 (1) Full qty
9
R.H. front mudguard strip
63046300 (1) Full qty
10
Hinge for door
63032200 (4) Full qty
11
Hose
123391 (1) Full qty
12
Upper stiffening
61484000 (2) Full qty
13
Lower stiffening
61484100 (2) Full qty
14
Bracket
61484200 (2) Full qty
15
Door Hinge Pin 246/250/330/308/328 (9.5mm OVERSIZE)
New       £ 51.15
40120404 (4) Full qty
BW10086n
15
Hinge Pin 308/328 10mm OVERSIZE
New       £ 50.05
40120404 (4) Full qty
BW99312n
16
Right pillar
61484400 (1) Full qty
17
Left pillar
61484500 (1) Full qty
18
Windshield curved element
62926400 (1) Full qty
18
Windshield curved element
63684700 (1) Full qty
19
Front rib
61484700 (1) Full qty
20
Central rib
61484800 (1) Full qty
21
Rear rib
61488100 (1) Full qty
22
Rear right door pillar
61484900 (1) Full qty
23
Rear left door pillar
61485000 (1) Full qty
24
Bracket
61485200 (1) Full qty
25
R.H. belt retractor housing
62926200 (1) Full qty
26
L.H. belt retractor housing
62926300 (1) Full qty
27
Front stiffening for central r…
61485500 (2) Full qty
28
Rear stiffening for central ri…
61485600 (2) Full qty
30
Rear window plate
61488000 (1) Full qty
31
Left upper frame for passenger…
61487900 (1) Full qty
31
Right upper frame for passenge…
61487800 (1) Full qty
32
Inner connection plate (R.H.) …
61558300 (1) Full qty
32
Inner connection plate R.H. co…
63461400 (1) Full qty
33
Inner connection plate (L.H.),…
61558400 (1) Full qty
33
Inner connection plate L.H. co…
63461500 (1) Full qty
34
Fuel filler seat
61486400 (1) Full qty
35
L.H. light seat
64678000 (1) Full qty
35
R.H. light seat
64677900 (1) Full qty
36
Frame
61486700 (1) Full qty
37
Rear window plate
61486800 (1) Full qty
38
Roof left side rail
61487000 (1) Full qty
38
Roof right side rail
61486900 (1) Full qty
39
Upper rail for left door openi…
61487200 (1) Full qty
39
Upper rail for right door open…
61487100 (1) Full qty
40
Right rear pillar
61487300 (1) Full qty
41
Left rear pillar
61487400 (1) Full qty
42
Rear window framework
61487500 (1) Full qty
43
SCREW COLLAR
12179690 (1) Full qty
44
Stiffening
61485100 (1) Full qty
45
L.H. aluminium
61580500 (1) Full qty
45
Aluminium, R.H.
61580400 (1) Full qty
46
Flat bed complete
145530 (1) Full qty
46
Flat bed complete
150303 (1) Full qty
47
Zincfoil for door hinge, L.H.
61580300 (2) Full qty
47
Zincfoil for door hinge, R.H.
61580200 (2) Full qty
48
Screw for hinge
50206408 (12) Full qty
49
Circlip
11087974 (4) Full qty
50
CLIP
157385 (2) Full qty
51
Screw
15687801 (3) Full qty
52
Water drain pipe
63052000 (2) Full qty
53
Clamp
13000190 (2) Full qty
54
Pipe grommet
52770500 (2) Full qty
55
Cables pipe
64545200 (1) Full qty
55
Cables pipe
63423000 (1) Full qty
