Rear Suspension - Shock Absorber And Stabilizer Bar

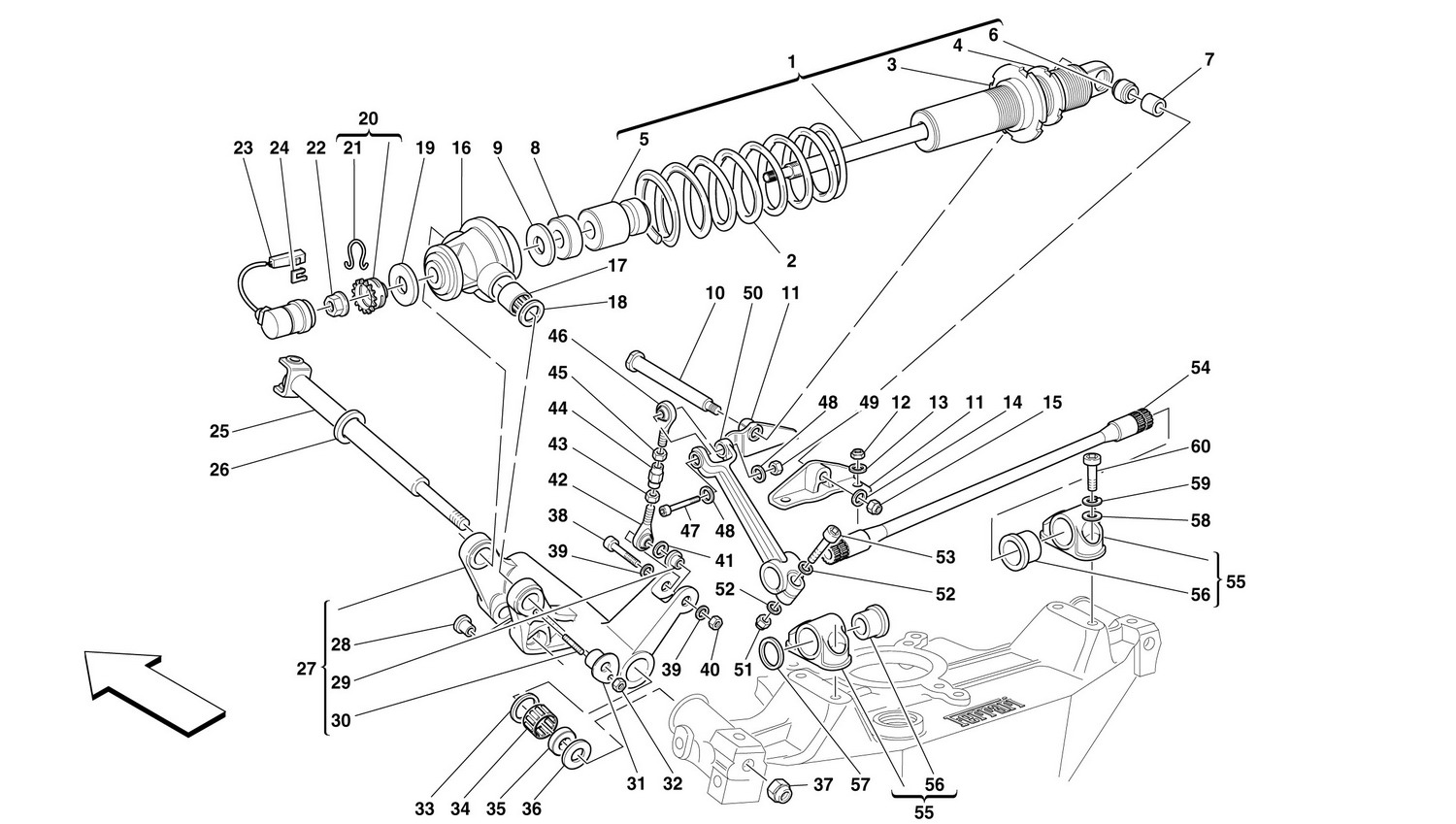

Schematic: Rear Suspension - Shock Absorber And Stabilizer Bar
Schematic: Rear Suspension - Shock Absorber And Stabilizer Bar
Loc
Part
Cond       Price
1
REAR SHOCK ABSORBER
165597 (2) Full qty
2
SUSPENSION SPRING
165620 (2) Full qty
3
SPACER
150156 (2) Full qty
4
Threaded ring nut
141860 (2) Full qty
5
Shock Absorber Pad 550
New       Price on Enquiry
150155 (2) Full qty
RS00278n
6
BALL JOINT
149354 (2) Full qty
7
SPACER FOR SHOCK ABSORBER
149303 (2) Full qty
8
SPACER
154697 (2) Full qty
9
Washer
116862 (2) Full qty
10
PIN
149299 (2) Full qty
11
BRACKET FOR SHOCK ABSORBER F…
151340 (2) Full qty
12
NUT
12574525 (6) Full qty
13
WASHER
12642424 (6) Full qty
14
WASHER
152249 (2) Full qty
15
Nut Front Wishbone
New       £ 3.56
148020 (2) Full qty
FS00201n
16
HYPERBLOCK
147379 (2) Full qty
17
BEARING
150160 (4) Full qty
18
WASHER Th. mm. 2,7-
150170 (4) Full qty
18
WASHER Th. mm. 2,8-
150171 (4) Full qty
18
WASHER Th. mm. 2,5-
150115 (4) Full qty
18
WASHER Th. mm. 2,4-
150166 (4) Full qty
18
WASHER Th. mm. 2,3-
150167 (4) Full qty
18
WASHER Th. mm. 2,2-
150168 (4) Full qty
18
WASHER Th. mm. 2,6-
150169 (4) Full qty
19
WASHER
148829 (2) Full qty
20
Support
137824 (2) Full qty
21
Front Suspension Actuator Clip 355
New       £ 6.49
142079 (2) Full qty
FS10448n
22
Nut
137826 (2) Full qty
23
Shock Absorber Actuator
New       £ 825.00
158732 (2) Full qty
RS00364n
24
CLIP
155751 (2) Full qty
25
PIN
155621 (2) Full qty
26
SPACER
152078 (2) Full qty
26
SPACER
152079 (2) Full qty
26
SPACER
152076 (2) Full qty
26
SPACER
152081 (2) Full qty
26
SPACER
152080 (2) Full qty
27
R.H. SHOCK ABSORBER CONTROL R…
150080 (1) Full qty
27
L.H. SHOCK ABSORBER CONTROL R…
150081 (1) Full qty
28
BUSHING
150082 (4) Full qty
29
BUSHING
149481 (4) Full qty
30
STUD
13539124 (4) Full qty
31
PIN
150114 (4) Full qty
32
NUT
113647 (4) Full qty
33
WASHER
152095 (2) Full qty
34
BEARING
150152 (4) Full qty
35
SEAL RING
150153 (4) Full qty
36
GASKET
150585 (4) Full qty
37
NUT
12575725 (2) Full qty
38
SCREW
149941 (2) Full qty
39
Washer
10519624 (4) Full qty
40
Nut
133215 (2) Full qty
41
WASHER
60784600 (4) Full qty
42
BALL JOINT
149334 (2) Full qty
43
Lock nut
11690911 (2) Full qty
44
SHACKLE FOR STABILIZER BAR
150162 (2) Full qty
45
Lock nut
10788711 (2) Full qty
46
BALL JOINT
149333 (2) Full qty
47
SCREW
149940 (2) Full qty
48
Washer
10519624 (4) Full qty
49
Nut
133215 (2) Full qty
50
ARM FOR STABILIZER BAR
149480 (2) Full qty
51
Nut
133215 (2) Full qty
52
WASHER
12638524 (4) Full qty
53
SCREW
149939 (2) Full qty
54
REAR ANTI-ROLL BAR
165645 (1) Full qty
55
BAR SUPPORT
149312 (2) Full qty
56
BUSHING
149300 (2) Full qty
57
WASHER Th. mm. 0,3-
150128 (2) Full qty
57
WASHER Th. mm. 0,5-
149446 (2) Full qty
57
WASHER Th. mm. 0,7-
150129 (2) Full qty
58
WASHER
12638524 (4) Full qty
59
WASHER
12605574 (4) Full qty
60
SCREW
14306724 (4) Full qty
