Gearbox Lay Shaft

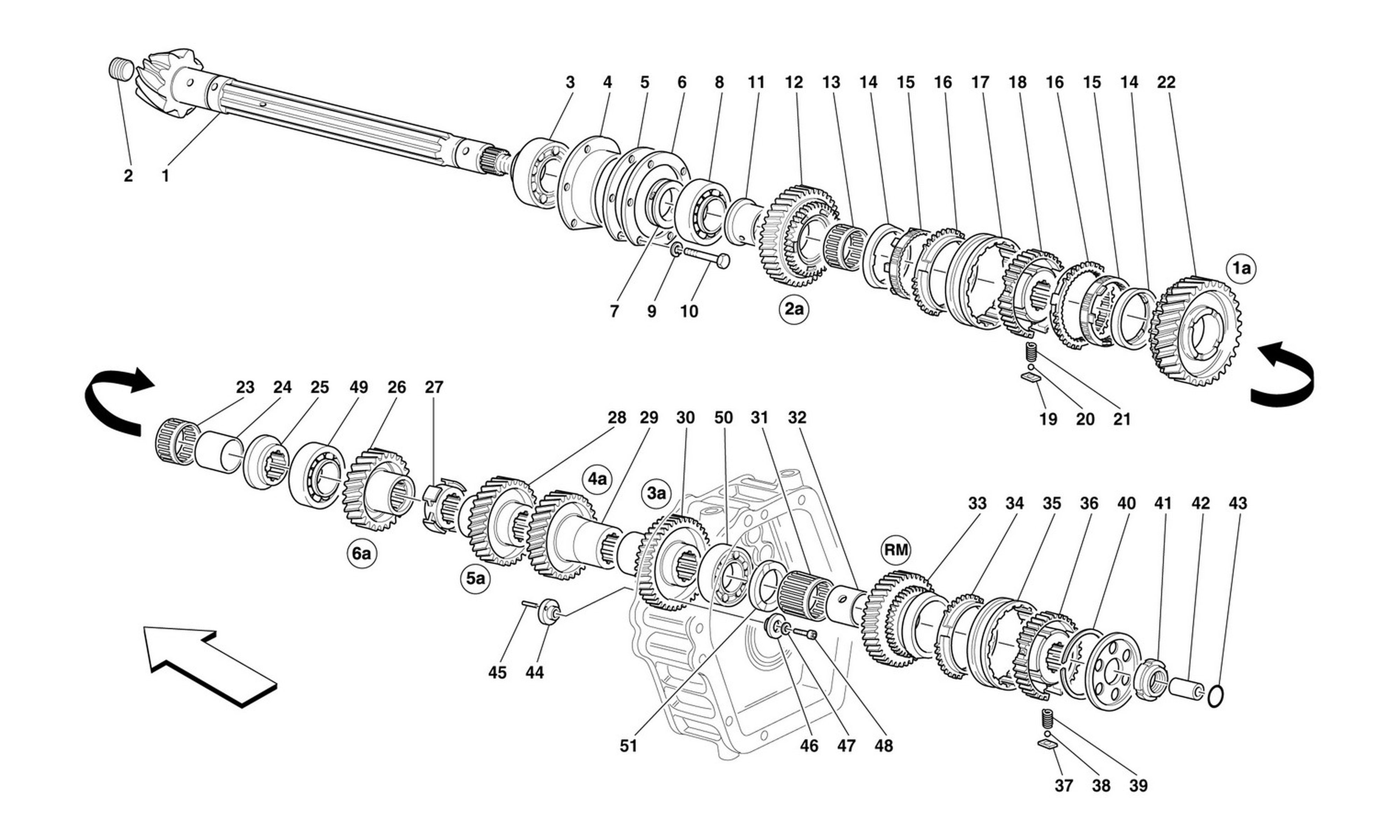

Schematic: Gearbox Lay Shaft
Loc
Part
Cond       Price
1
OUTPUT SHAFT
168139 (1) Full qty
1
OUTPUT SHAFT
168091 (1) Full qty
2
Plug for lubricating ports
10269850 (1) Full qty
3
New       Price on Enquiry
101636 (1) Full qty
AX00182n
3
New       £ 152.01
101636 (1) Full qty
GB10309n
4
BAG FOR BEARINGS
156376 (1) Full qty
5
SPACER
146715 (1) Full qty
5
SPACER
151278 (1) Full qty
5
SPACER
151279 (1) Full qty
5
SPACER
151280 (1) Full qty
5
SPACER
151281 (1) Full qty
6
SPACER
146716 (1) Full qty
7
SPACER
122152 (1) Full qty
7
SPACER
138136 (1) Full qty
8
BEARING
121822 (1) Full qty
9
Wavy Lock Washer 8mm
127496 (6) Full qty
10
Screw
16044021 (6) Full qty
11
CARRIER BUSH
156894 (1) Full qty
12
PINION FOR 2nd GEAR
166969 (1) Full qty
13
New       £ 30.97
101604 (1) Full qty
GB11755n
14
INNER RING
169780 (2) Full qty
15
SYNCHRONIZER MIDDLING RING
169779 (2) Full qty
16
SYNCHRONIZER RING
152191 (2) Full qty
17
SLEEVE
152189 (1) Full qty
18
SYNCHRONIZER BODY
154439 (1) Full qty
19
SMALL BLOCK
152195 (3) Full qty
20
BALL
152197 (3) Full qty
21
SPRING
152196 (3) Full qty
22
PINION FOR 1st GEAR
166967 (1) Full qty
23
New       £ 30.97
101604 (1) Full qty
GB11755n
24
Roller race for 1st, 2nd, 3rd,…
104704 (1) Full qty
25
SPACER
156895 (1) Full qty
26
PINION FOR 6th GEAR
156224 (1) Full qty
27
TRANSMITTING DISC
150810 (1) Full qty
28
PINION FOR 5th GEAR
166880 (1) Full qty
29
PINION FOR 4th GEAR
166974 (1) Full qty
30
PINION FOR 3th GEAR
166973 (1) Full qty
31
New       Price on Enquiry
159193 (1) Full qty
GB00049n
32
ROLLER CAGE RACE
156948 (1) Full qty
33
PINION FOR 5th GEAR
166880 (1) Full qty
34
SYNCHRONIZER RING
152479 (1) Full qty
35
SLEEVE
152206 (1) Full qty
36
SYNCHRONIZER BODY
154475 (1) Full qty
37
SMALL BLOCK
152195 (3) Full qty
38
BALL
152197 (3) Full qty
39
SPRING
152196 (3) Full qty
40
LOCK RING
156655 (1) Full qty
41
RING NUT
156980 (1) Full qty
42
BUSHING
156975 (1) Full qty
43
New       Price on Enquiry
101031 (1) Full qty
GE00136n
44
THREADED BUSHING
157010 (1) Full qty
45
Pin
14159470 (1) Full qty
46
BUSHING
157009 (1) Full qty
47
Washer
10569273 (1) Full qty
48
Screw
14305224 (1) Full qty
49
Bearing
131056 (1) Full qty
50
New       Price on Enquiry
104257 (1) Full qty
GB10256n
51
SPACER
151135 (1) Full qty
