Air Boxes And Controls

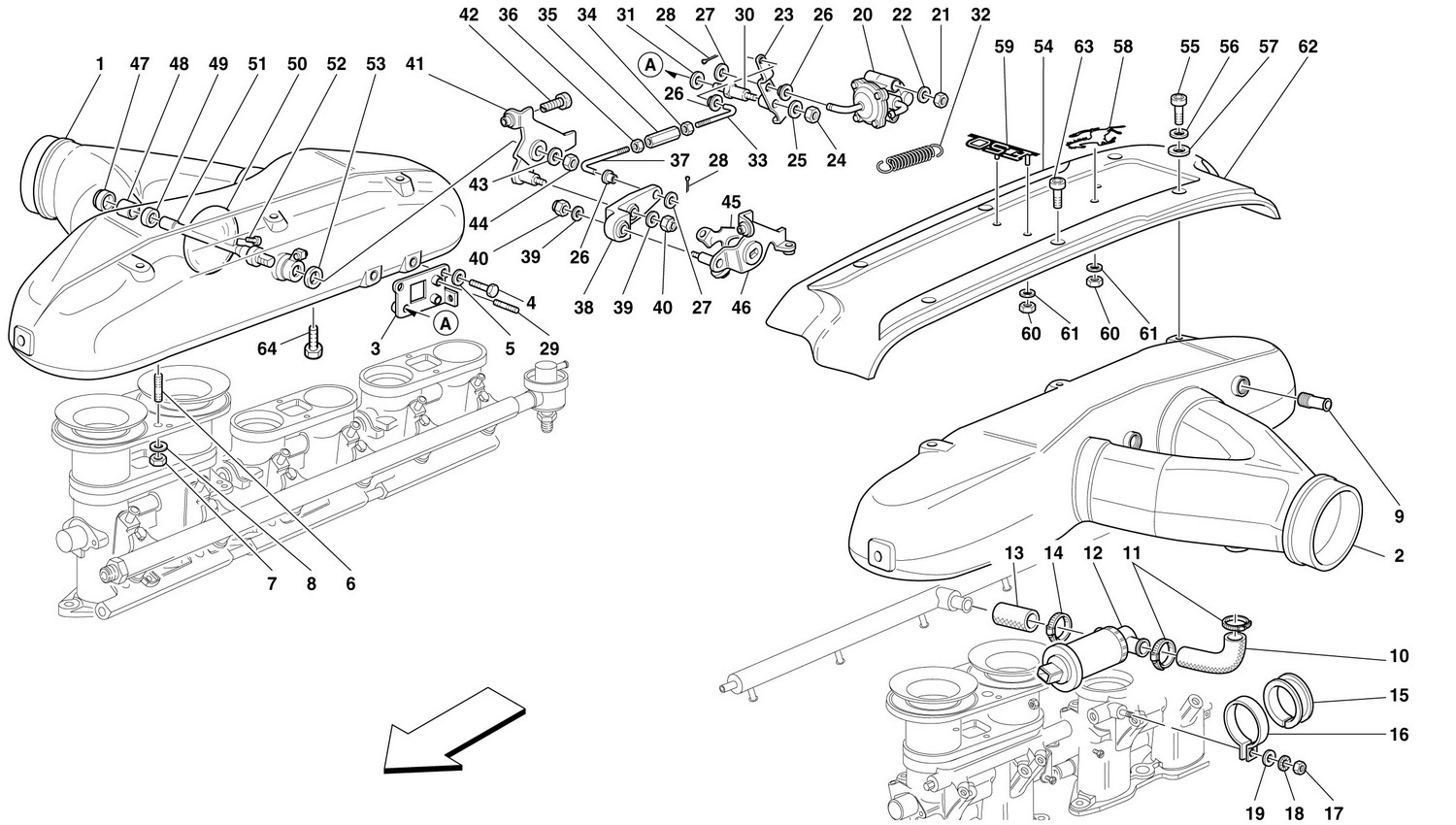

Schematic: Air Boxes And Controls
Schematic: Air Boxes And Controls
Loc
Part
Cond       Price
1
COMPLETE R.H. PLENUM CHAMBER
169566 (1) Full qty
1
COMPLETE R.H. PLENUM CHAMBER
166573 (1) Full qty
2
COMPLETE L.H. PLENUM CHAMBER
169565 (1) Full qty
2
COMPLETE L.H. PLENUM CHAMBER
161796 (1) Full qty
3
PLATE
161499 (1) Full qty
4
Screw
10902024 (2) Full qty
5
WASHER
11193274 (2) Full qty
6
STUD BOLT
11500424 (10) Full qty
6
STUD BOLT
11500424 (10) Full qty
7
Nut
102741 (12) Full qty
8
WASHER
12604274 (12) Full qty
9
THREADED UNION
154525 (2) Full qty
9
THREADED UNION
154525 (2) Full qty
10
PIPE
165172 (2) Full qty
11
Clamp
13000490 (4) Full qty
12
REGULATOR FOR IDLE ADJUSTMEN…
147373 (2) Full qty
13
R.H. PIPE
165173 (1) Full qty
13
L.H. PIPE
163065 (1) Full qty
14
Clamp
13000490 (4) Full qty
15
SHEATH FOR BRACKET
150736 (2) Full qty
16
BRACKET
151738 (2) Full qty
17
NUT
15896214 (2) Full qty
18
WASHER
12605371 (2) Full qty
19
WASHER
12639724 (2) Full qty
20
PNEUMATIC CAPSULE
160887 (1) Full qty
21
NUT
12577817 (2) Full qty
22
WASHER
14496324 (2) Full qty
23
COMPLETE LEVER
161501 (1) Full qty
24
NUT
12577817 (1) Full qty
25
WASHER
12637824 (1) Full qty
26
Bush
137271 (3) Full qty
27
Washer
14496201 (6) Full qty
28
Split pin
10794501 (3) Full qty
29
STUD
11001724 (2) Full qty
30
Lever stud bolt
137277 (1) Full qty
31
WASHER
11193274 (1) Full qty
32
SPRING
161498 (1) Full qty
33
L.H. thread tie rod
137270 (1) Full qty
34
L.H. thread nut
10791111 (1) Full qty
35
Sleeve
137273 (1) Full qty
36
Nut
10794011 (1) Full qty
37
R.H. thread tie rod
137276 (1) Full qty
38
TRANSMISSION LEVER
161465 (1) Full qty
39
WASHER
14497801 (2) Full qty
40
NUT
12577817 (2) Full qty
41
R.H. THROTTLE CONTROL LEVER
161466 (1) Full qty
42
ADJUSTMENT SCREW
169533 (6) Full qty
43
Do Not Use - See GE07667n
12601374 (2) Full qty
43
Rocker Block Wavy Washer
New       £ 0.12
12601374 (2) Full qty
CH11905n
44
NUT
16102314 (2) Full qty
45
L.H. THROTTLE CONTROL LEVER
161468 (1) Full qty
46
L.H. THROTTLE CONTROL TRANSMI…
161467 (1) Full qty
47
PLUG
14328301 (2) Full qty
48
Bush
136922 (2) Full qty
49
GASKET
161474 (2) Full qty
50
AIR FLOW ADJUSTTING THROTTLE
142936 (2) Full qty
51
SHAFT FOR THROTTLE
161497 (2) Full qty
52
Screw
136923 (4) Full qty
53
Washer
New       Price on Enquiry
128010 (1) Full qty
CS11932n
54
PLENUM CHAMBERS COVER
167020 (1) Full qty
55
SCREW
14305324 (4) Full qty
56
WASHER
12604274 (6) Full qty
57
WASHER
166462 (6) Full qty
58
Badge Prancing Horse Chromed 75mm Height
New       Price on Enquiry
60032109 (1) Full qty
ET25153n
59
F 50 MARK
167022 (1) Full qty
60
Nut
61002200 (2) Full qty
61
Washer
12639401 (2) Full qty
62
PLENUM CHAMBERS COVER
167020 (1) Full qty
63
SCREW -No longer supplied- -Re…
14305124 (2) Full qty
64
SCREW -M6 X 20- -Fastening bra…
10902424 (2) Full qty
