Doors - Glass Lifting Device

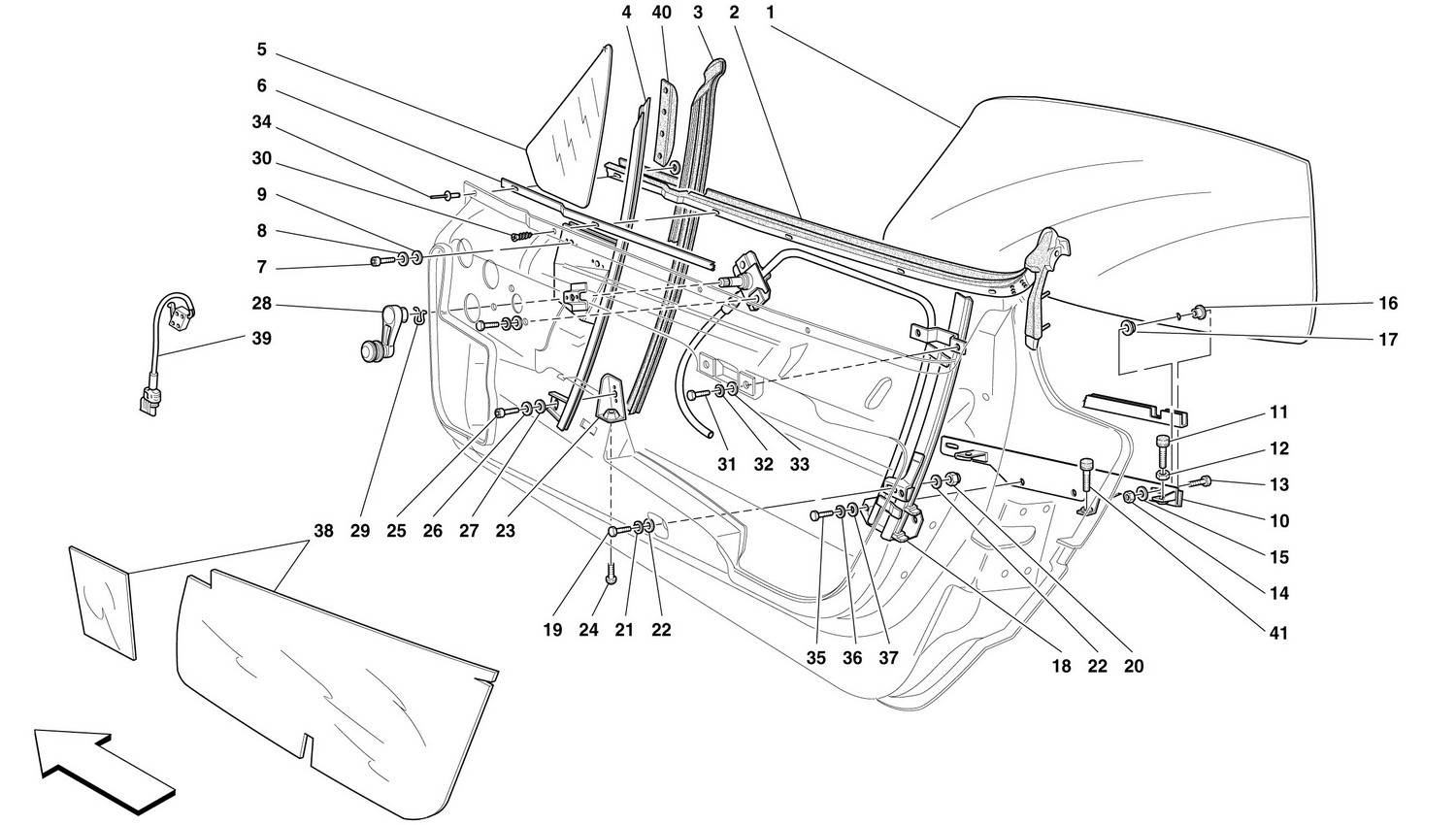

Schematic: Doors - Glass Lifting Device
Loc
Part
Cond       Price
1
R.H. DOOR GLASS
64697500 (1) Full qty
1
L.H. DOOR GLASS
64697600 (1) Full qty
2
GASKET FOR L.H. DOOR OPENING
65080700 (1) Full qty
2
R.H. GASKET
64721100 (1) Full qty
2
GASKET FOR R.H. DOOR OPENING
65080600 (1) Full qty
3
L.H. GASKET
64480900 (1) Full qty
3
R.H. GASKET
64155400 (1) Full qty
4
L.H. BUTTERFLY WINDOW FRAME
64198600 (1) Full qty
4
R.H. BUTTERFLY WINDOW FRAME
64198500 (1) Full qty
5
R.H. BUTTERFLY WINDOW
64147300 (1) Full qty
5
L.H. BUTTERFLY WINDOW
64147400 (1) Full qty
6
L.H. PLATE
64144900 (1) Full qty
6
R.H. PLATE
64144800 (1) Full qty
7
SCREW
13026187 (6) Full qty
8
WASHER
166467 (6) Full qty
9
Washer
12638177 (6) Full qty
10
L.H. LOWER BRACKET
64148400 (1) Full qty
10
R.H. LOWER BRACKET
64148300 (1) Full qty
11
STOP BUFFER
62008400 (4) Full qty
12
NUT
15896214 (4) Full qty
13
SCREW -M6 X 20- -Fastening bra…
10902424 (4) Full qty
14
Nut
102741 (4) Full qty
15
WASHER
12643724 (4) Full qty
16
OUTER BUSHING
62106600 (4) Full qty
17
INNER BUSHING
62106700 (2) Full qty
18
L.H. GLASS LIFT ASSEMBLY
64191300 (1) Full qty
18
R.H. GLASS LIFT ASSEMBLY
64191200 (1) Full qty
19
SCREW -M6 X 20- -Fastening bra…
10902424 (2) Full qty
20
Nut
102741 (2) Full qty
21
Clutch Bolt Wavy Washer 550/57…
127494 (10) Full qty
22
WASHER
12643724 (12) Full qty
23
L.H. LOWER BRACKET
64145600 (1) Full qty
23
R.H. LOWER BRACKET
64145500 (1) Full qty
24
SCREW
147365 (2) Full qty
25
SCREW
14304224 (2) Full qty
26
WASHER
166467 (2) Full qty
27
Washer
12638177 (2) Full qty
28
WINDOW REGULATOR HANDLE
63537700 (2) Full qty
29
CLIP
62584600 (2) Full qty
30
SCREW
15901470 (8) Full qty
31
SCREW -M6 X 14-
10902124 (8) Full qty
32
Clutch Bolt Wavy Washer 550/57…
127494 (8) Full qty
33
WASHER
12643724 (8) Full qty
34
RIVET
64488900 (2) Full qty
35
SCREW -M6 X 14-
10902124 (4) Full qty
36
Clutch Bolt Wavy Washer 550/57…
127494 (4) Full qty
37
WASHER
14496424 (4) Full qty
38
WATER PROTECTION CLOTH
63000900 (2) Full qty
39
MICRO-SWITCH
154762 (2) Full qty
40
R.H. AIR DEFLECTOR
64869900 (1) Full qty
40
L.H. AIR DEFLECTOR
64870000 (1) Full qty
41
New       Price on Enquiry
50087709 (2) Full qty
