Hydraulic Brake And Clutch Controls

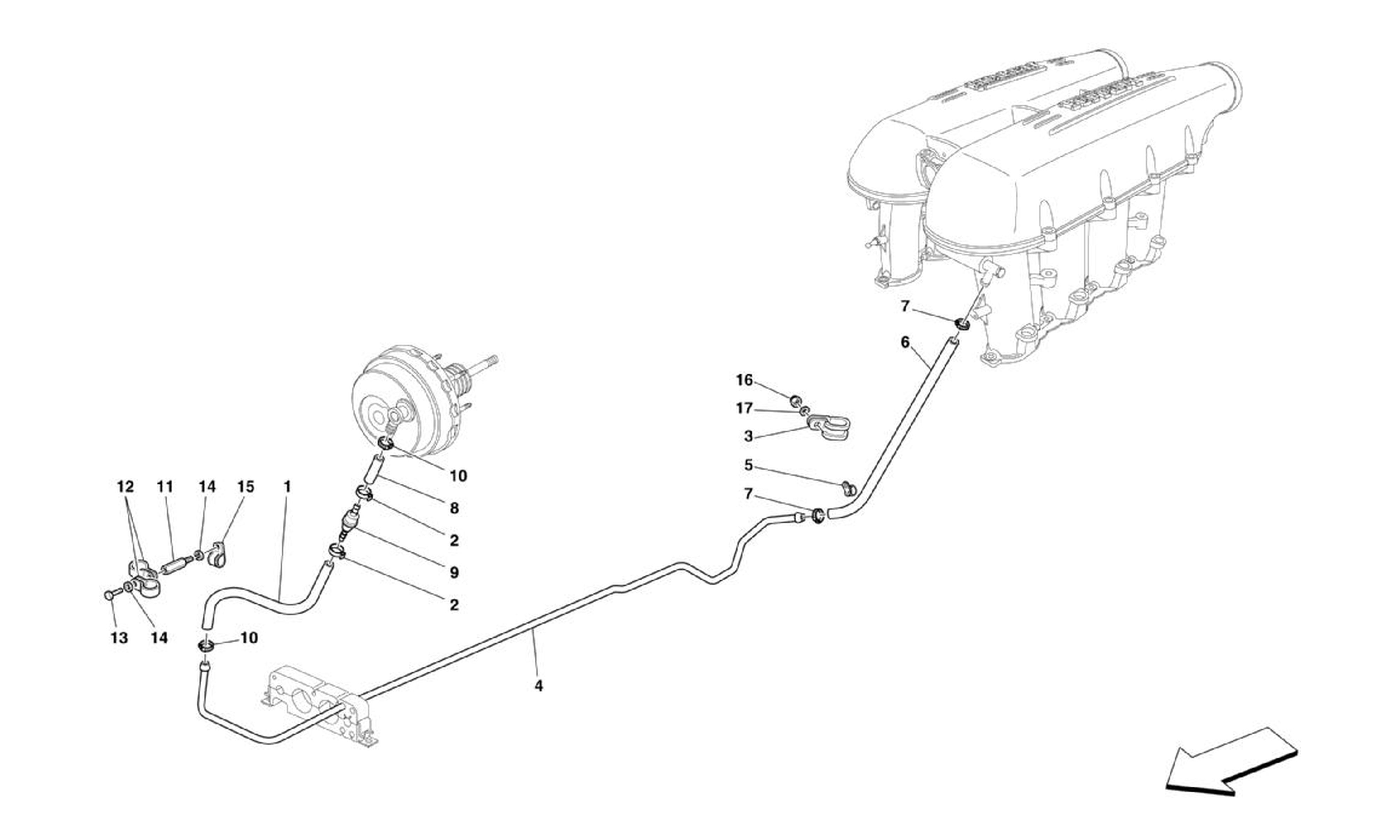

Schematic: Hydraulic Brake And Clutch Controls
Loc
Part
Cond       Price
1
RUBBER PIPE FROM UNION TO BRAK…
173842 (1) Full qty
2
ELASTIC COLLAR
164015 (2) Full qty
3
Hose fastening bracket
61712500 (2) Full qty
4
SERVOBRAKE UNDERBODY PIPE
202553 (1) Full qty
5
Clamp ? 10 mm
10450190 (1) Full qty
6
RUBBER PIPE FROM UNION TO BRAK…
168386 (1) Full qty
7
COLLAR
161490 (2) Full qty
8
Pipe from valve to manifold
127213 (1) Full qty
9
Brake Servo Valve
193186 (1) Full qty
10
COLLAR
161490 (2) Full qty
11
STUD BOLT -Not for GD-
178772 (1) Full qty
12
BRACKET WITH SHEATH -D. 12-
10441390 (2) Full qty
13
SCREW
10902224 (1) Full qty
14
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
15
Bracket
10441690 (1) Full qty
16
Nyloc Nut 6 x 1 x 7.6mm
102948 (2) Full qty
17
WASHER
12639724 (2) Full qty
