Electrical System

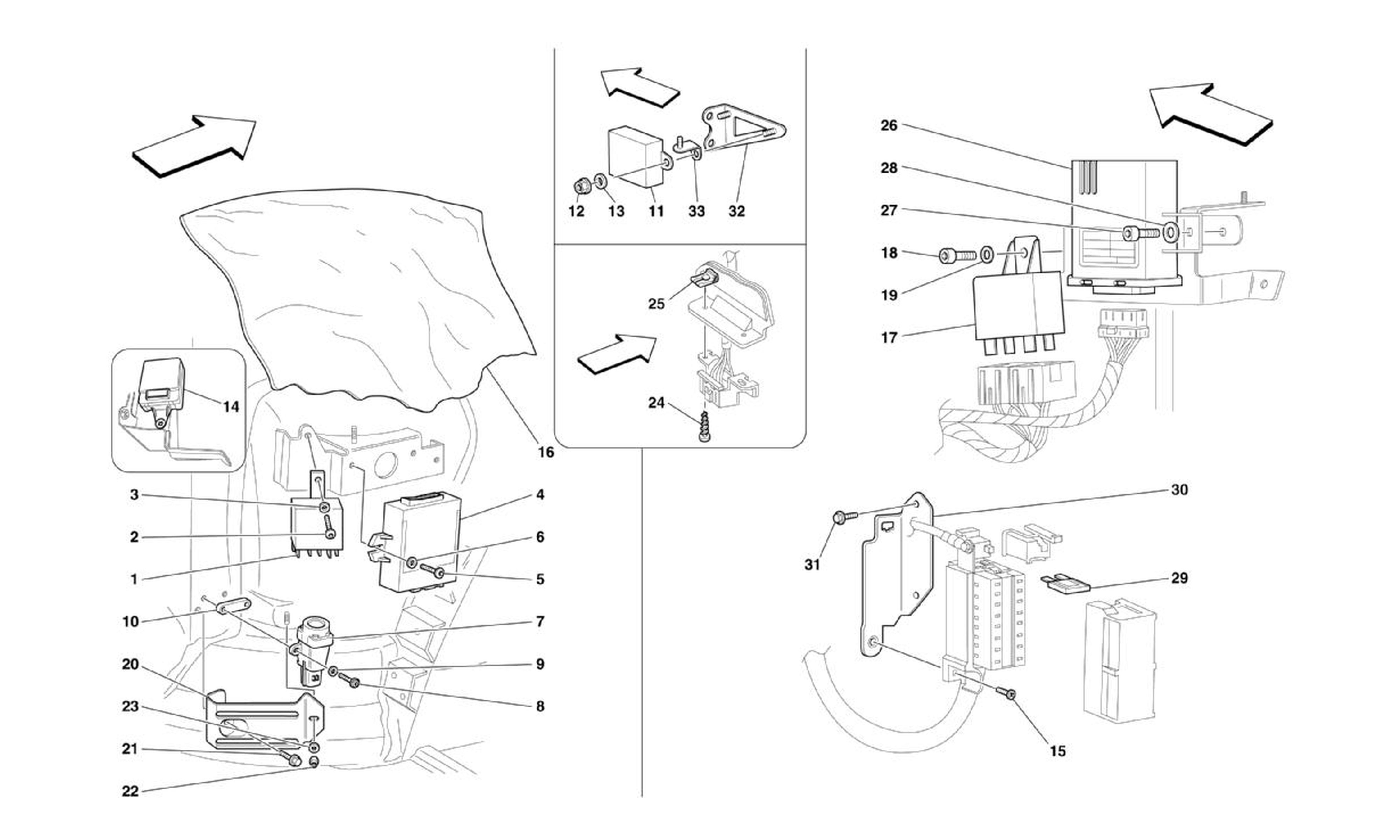

Schematic: Electrical System
Loc
Part
Cond       Price
1
LOCK/UNLOCK DOORS MODULE
184391 (1) Full qty
2
SCREW
14304324 (1) Full qty
3
WASHER
12637824 (1) Full qty
4
WINDOW LIFT MECHANISM ECU
234698 (1) Full qty
5
SCREW
14304324 (2) Full qty
6
WASHER
12637824 (2) Full qty
7
INERTIAL SWITCH
179087 (1) Full qty
8
New       £ 0.73
168133 (2) Full qty
GE00701n
9
WASHER
12637824 (2) Full qty
10
SHIM
65549800 (1) Full qty
11
SHOCK ABSORBERS ELECTRONIC CON…
214441 (1) Full qty
11
New       £ 1556.93
215533 (1) Full qty
EL99517n
12
NUT
169180 (2) Full qty
13
Washer
12638177 (2) Full qty
14
HOURS
194913 (1) Full qty
15
SCREW -M5 X 16-
16285127 (1) Full qty
16
WATERPROOF MEMBRANE
66215200 (2) Full qty
17
INTERMITTENT UNIT FOR WIPER MO…
253060 (1) Full qty
18
SCREW
14304324 (2) Full qty
19
WASHER
12637824 (2) Full qty
20
SHIELD
65522600 (1) Full qty
21
SCREW -M6 X 14-
16296924 (1) Full qty
22
Nyloc Nut 6 x 1 x 7.6mm
102948 (1) Full qty
23
WASHER
14496424 (1) Full qty
24
SCREW
15688170 (2) Full qty
25
Spring
40136707 (2) Full qty
26
TURN-EMERGENCY LIGHTS FLASHING…
205713 (1) Full qty
27
SCREW
14304324 (2) Full qty
28
WASHER
12637824 (2) Full qty
29
20A MAXI FUSE
169438 (1) Full qty
29
30A MAXI FUSE
170093 (2) Full qty
29
50A MAXI FUSE
170061 (3) Full qty
29
60 A. MAXI FUSE
172871 (2) Full qty
30
BRACKET
68266300 (1) Full qty
31
SCREW -M6 X 14-
10902124 (2) Full qty
32
BRACKET
68403400 (1) Full qty
33
BRACKET
68613300 (1) Full qty
