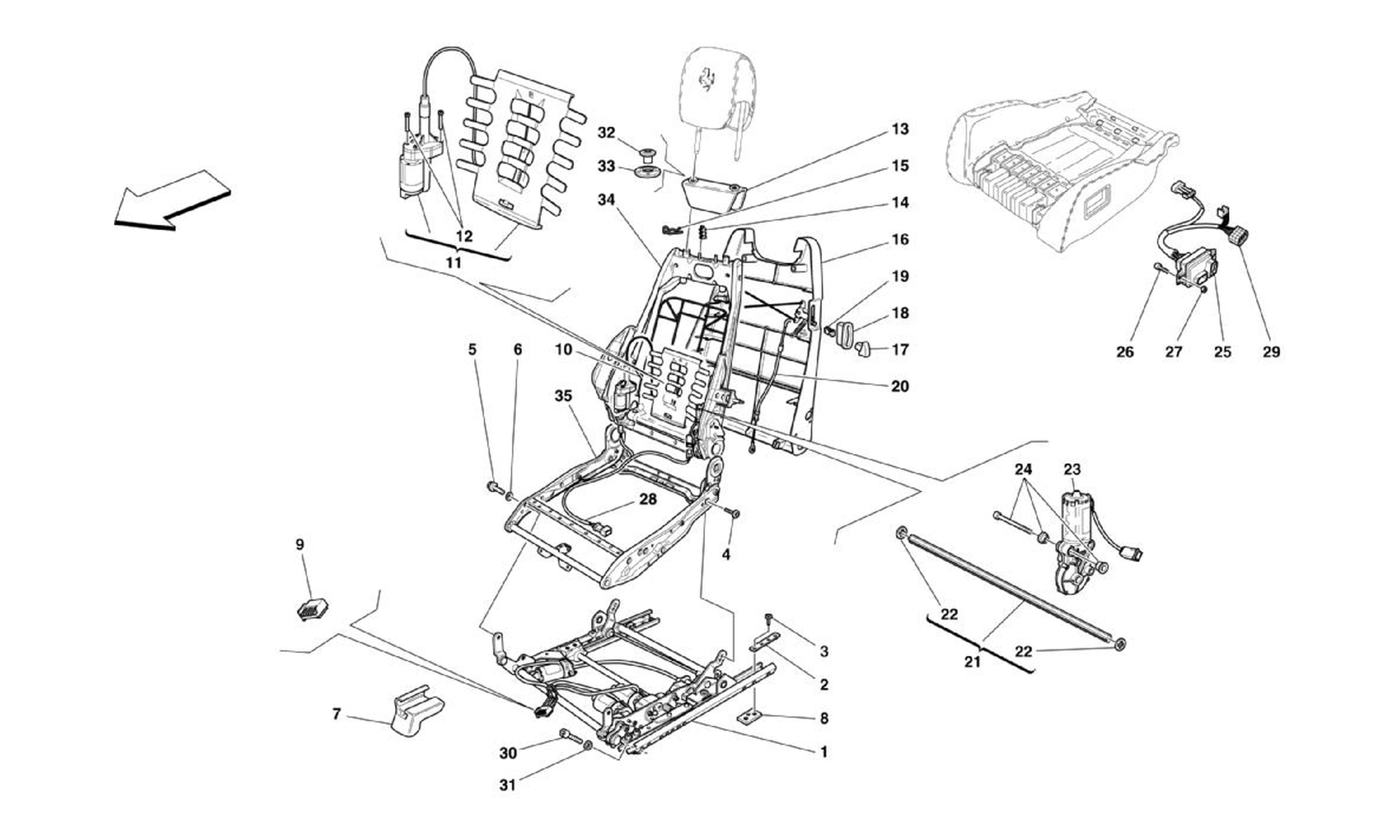

Electric Seat - Guides And Adjustment Mechanisms -Optional-

1

R.H. GUIDE ASSEMBLY

66327200 (1) Full qty

Qty Add to Quote

1

L.H. GUIDE ASSEMBLY

66327300 (1) Full qty

Qty Add to Quote

2

UPPER PLATE

66323500 (4) Full qty

Qty Add to Quote

3

SCREW

66327100 (4) Full qty

Qty Add to Quote

4

SCREW

66327900 (8) Full qty

Qty Add to Quote

5

SCREW

66327500 (8) Full qty

Qty Add to Quote

6

BUSHING

66327600 (4) Full qty

Qty Add to Quote

6

BUSHING

66327700 (4) Full qty

Qty Add to Quote

7

L.H. GUIDE SHIELD

66090500 (2) Full qty

Qty Add to Quote

7

RH Seat Guide Cover (F430)

New       Price on Enquiry

66090400 (2) Full qty
NT10208n

Qty Add to Quote

8

SMALL PLATE

166168 (4) Full qty

Qty Add to Quote

9

CONNECTOR

66328000 (2) Full qty

Qty Add to Quote

10

BOWDEN SHEATH

66326100 (2) Full qty

Qty Add to Quote

10

SEAT BACK SIDE BOWDEN CABLE

66326000 (2) Full qty

Qty Add to Quote

11

ELECTRICAL LOMBAR SYSTEM

66374500 (2) Full qty

Qty Add to Quote

12

SCREW

66328400 (4) Full qty

Qty Add to Quote

13

COMPLETE SADDLE

691982 (2) Full qty

Qty Add to Quote

14

CLIP

66324700 (4) Full qty

Qty Add to Quote

15

L.H. CLIP

66370200 (2) Full qty

Qty Add to Quote

15

R.H. CLIP

66324600 (2) Full qty

Qty Add to Quote

16

SEAT BACK COVERING

66324100 (2) Full qty

Qty Add to Quote

17

SEAT RELEASE LEVER

66324500 (4) Full qty

Qty Add to Quote

18

PLATE

66324400 (4) Full qty

Qty Add to Quote

19

CLIP

66324300 (4) Full qty

Qty Add to Quote

20

SEAT RELEASE CABLE

66324200 (4) Full qty

Qty Add to Quote

21

COMPLETE UNION BAR

66328800 (2) Full qty

Qty Add to Quote

22

FIXING RING

66328700 (4) Full qty

Qty Add to Quote

23

MOTOR FOR SEAT BACK

66327800 (2) Full qty

Qty Add to Quote

24

FIXING KIT

66328500 (2) Full qty

Qty Add to Quote

25

L.H. SEAT SWITCH PANEL

66329300 (1) Full qty

Qty Add to Quote

25

R.H. SEAT SWITCH PANEL

66329200 (1) Full qty

Qty Add to Quote

26

SCREW

66329400 (4) Full qty

Qty Add to Quote

27

NUT

66329500 (4) Full qty

Qty Add to Quote

28

SEAT BACK ELECTRIC WIRING

66329100 (2) Full qty

Qty Add to Quote

29

CUSHION ELECTRIC WIRING PASSEN…

66329000 (1) Full qty

Qty Add to Quote

29

CUSHION ELECTRIC WIRING PILOT …

66328900 (1) Full qty

Qty Add to Quote

30

SCREW

65917500 (4) Full qty

Qty Add to Quote

31

WASHER

65917600 (4) Full qty

Qty Add to Quote

32

BUSHING

64025400 (4) Full qty

Qty Add to Quote

33

WASHER

64025500 (4) Full qty

Qty Add to Quote

34

SEAT BACK STRUCTURE

69198500 (2) Full qty

Qty Add to Quote

35

R.H. CUSHION STRUCTURE

69198800 (1) Full qty

Qty Add to Quote

35

L.H. CUSHION STRUCTURE

69198900 (1) Full qty

Qty Add to Quote
