Doors - Opening Mechanism And Hinges

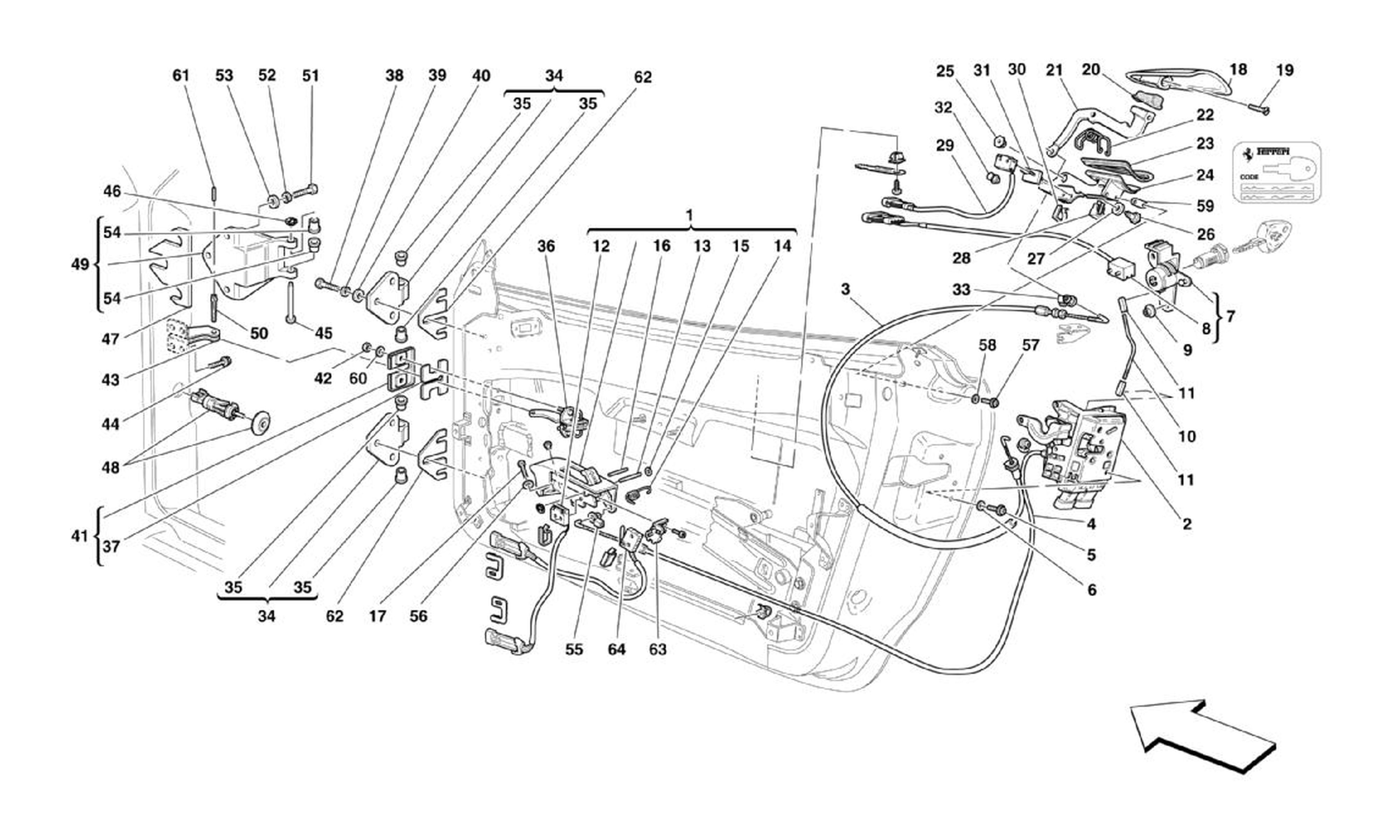

Schematic: Doors - Opening Mechanism And Hinges
Schematic: Doors - Opening Mechanism And Hinges
Loc
Part
Cond       Price
1
R. H. INNER DOOR HANDLE FOR OP…
68884500 (1) Full qty
1
L.H. INNER DOOR HANDLE FOR OPE…
67839100 (1) Full qty
2
L.H. DOOR LOCK
69998100 (1) Full qty
2
R.H. DOOR LOCK
69998000 (1) Full qty
2
R.H. DOOR LOCK
68993100 (1) Full qty
2
R.H. DOOR LOCK
69998000 (1) Full qty
2
13mm Cord Seal Per M
68993200 (1) Full qty
3
Door Cable (Outer Handle)
New       Price on Enquiry
65068400 (1) Full qty
NT10260n
4
DOOR INTERNAL OPENING CABLE
65069300 (2) Full qty
5
SCREW
62940900 (6) Full qty
6
WASHER
13550277 (6) Full qty
7
LH. DOOR LOCK BLOCK
65839500 (1) Full qty
7
RH. DOOR LOCK BLOCK
65839400 (1) Full qty
8
LH. MICROSWITCH
63859300 (1) Full qty
8
MICROSWITCH
63859200 (1) Full qty
9
NUT
13046011 (4) Full qty
10
SAFETY TIE-ROD
65836500 (2) Full qty
11
FLEXIBLE JOINT
62794000 (4) Full qty
12
Inner Door Handle Microswitch
Used       Price on Enquiry
171120 (2) Full qty
EL99653u
13
PIN
63723400 (2) Full qty
14
L.H. SPRING
63724700 (1) Full qty
14
R.H. SPRING
63724600 (1) Full qty
15
Seeger
11087476 (2) Full qty
16
FLEXIBLE PIN
65582700 (2) Full qty
17
SCREW
13274177 (2) Full qty
18
CARBON OUTER DOOR HANDLES SET
70001680 (1) Full qty
18
LH. SIDE EXTERNAL HANDLE
63576110 (1) Full qty
18
RH. SIDE EXTERNAL HANDLE
63576010 (1) Full qty
19
SCREW
13309277 (2) Full qty
20
LH. INTERNAL GASKET
64861200 (1) Full qty
20
RH. INTERNAL GASKET
64861100 (1) Full qty
21
ARM
64860600 (2) Full qty
22
HANDLE SPRING
64860700 (2) Full qty
23
LH. HANDLE GASKET
64861000 (1) Full qty
23
RH. HANDLE GASKET
64860900 (1) Full qty
24
LH. HANDLE SEAT
64860510 (1) Full qty
24
RH. HANDLE SEAT
64860410 (1) Full qty
25
BUSHING
65398700 (2) Full qty
26
PIN
64860800 (2) Full qty
27
WASHER
65520700 (4) Full qty
28
STEERING
65398600 (2) Full qty
29
MICROSWITCH
178187 (2) Full qty
30
CLIP
63179900 (2) Full qty
31
PLATE
65806300 (2) Full qty
32
RUBBER BUSHING
63853400 (2) Full qty
33
CLIP
14578180 (2) Full qty
34
MOBILE HINGE
64803300 (4) Full qty
35
BUSHING
62825300 (8) Full qty
36
Door Arrestor 550
New       £ 62.72
65195200 (2) Full qty
BW99341n
37
GASKET
63892300 (2) Full qty
38
Screw
16043934 (12) Full qty
39
WASHER
10571779 (12) Full qty
40
WASHER
14496578 (12) Full qty
41
L.H. SMALL PLATE
63895300 (1) Full qty
41
R.H. SMALL PLATE
63895200 (1) Full qty
42
Nut
102741 (4) Full qty
43
BRACKET
67111800 (2) Full qty
44
SCREW
18770124 (8) Full qty
45
PIN
64803400 (4) Full qty
46
Circlip
11087974 (4) Full qty
47
THICKNESS
65713400 (4) Full qty
48
Door Pillar Switch
New       £ 27.49
179697 (2) Full qty
EL99756n
49
FIXED HINGE
64803200 (4) Full qty
50
Door Pin 550
New       £ 3.28
66842800 (2) Full qty
BW99346n
51
SCREW
16043534 (12) Full qty
52
WASHER
10571779 (12) Full qty
53
WASHER
13550405 (12) Full qty
54
BUSHING
62825300 (8) Full qty
55
CLIP
65700900 (2) Full qty
56
WASHER -Applicable from Ass. N…
12637878 (2) Full qty
57
Screw
New       £ 1.34
169814 (2) Full qty
BW99327n
58
WASHER
166467 (2) Full qty
59
SPACER
65547500 (6) Full qty
60
Washer
New       Price on Enquiry
12644424 (4) Full qty
CS12006n
60
Inlet Water Manifold 512 BBi
Used       Price on Enquiry
12644424 (4) Full qty
CS12006u
61
Door Pin Inner 550
New       £ 3.28
14163874 (2) Full qty
BW99347n
62
SHIM
65998600 (4) Full qty
63
L.H. MICRO SUPPORT BRACKET
67903900 (1) Full qty
63
R.H. MICRO SUPPORT BRACKET
67904000 (1) Full qty
64
MICRO SWITCH FOR LOCKING DOORS…
212584 (2) Full qty
