Doors - Substructure And Trim

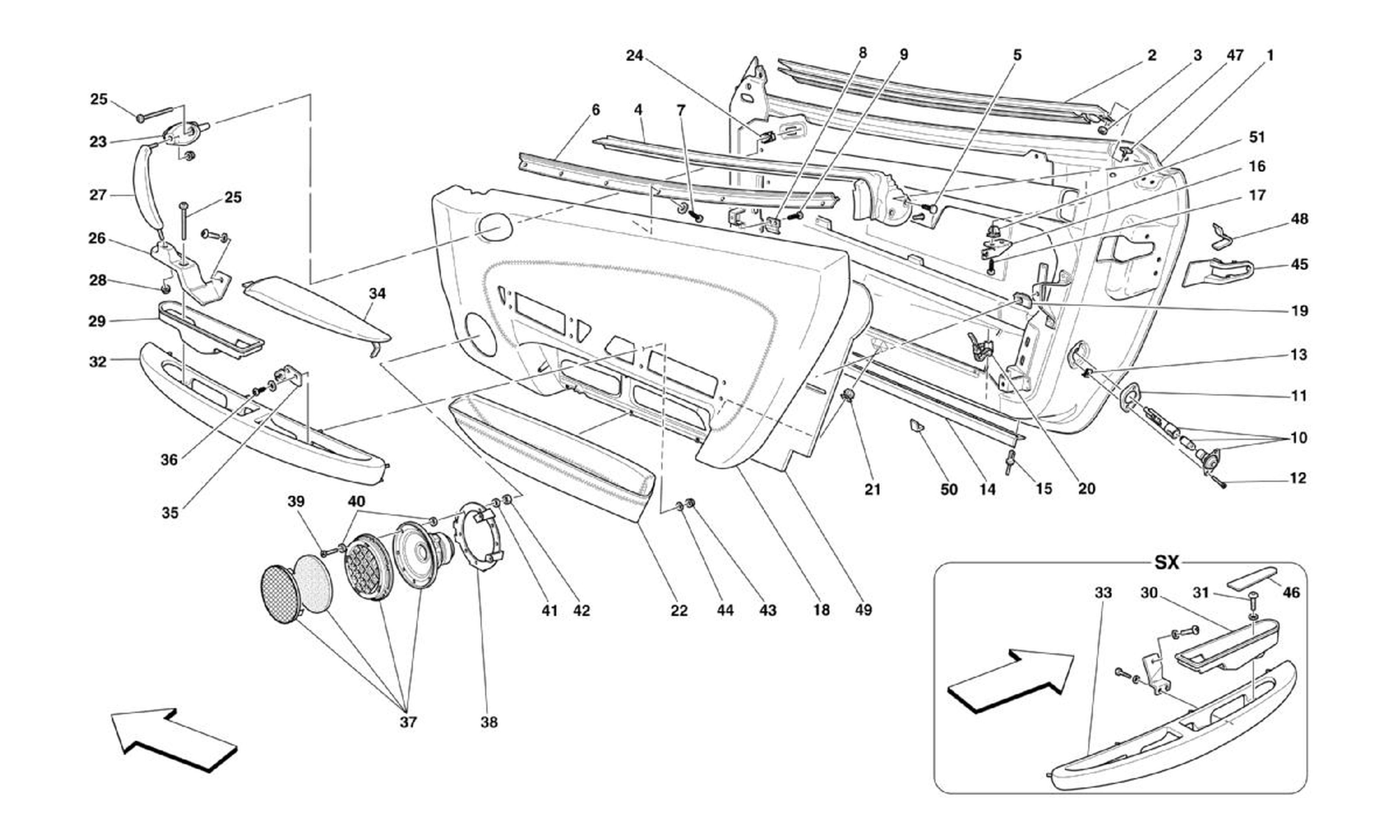

Schematic: Doors - Substructure And Trim
Schematic: Doors - Substructure And Trim
Loc
Part
Cond       Price
1
R.H. DOOR FRAME
67766511 (1) Full qty
1
L.H. DOOR FRAME
67766211 (1) Full qty
2
EXTERNAL LH. WINDOW SCRAPER SE…
65164500 (1) Full qty
2
RH Glass Scraper F430
New       Price on Enquiry
65164400 (1) Full qty
GL00282n
3
NUT -Applicable for aluminium …
14042077 (2) Full qty
4
INTERNAL LH. WINDOW SCRAPER SE…
65544700 (1) Full qty
4
INTERNAL RH. WINDOW SCRAPER SE…
65544600 (1) Full qty
5
FASTENER BUTTON
14591687 (4) Full qty
6
LH. MOULDING
65546200 (1) Full qty
6
RH. MOULDING
65013000 (1) Full qty
7
SCREW
16082901 (12) Full qty
8
FASTENING CLIP
64595200 (6) Full qty
9
SCREW
16082901 (12) Full qty
10
OPENING DOOR LAMP WITH BULB
184786 (2) Full qty
11
GASKET
140576 (2) Full qty
12
SCREW
15901570 (4) Full qty
13
FASTENING CLIP
61828500 (4) Full qty
14
GASKET
64855600 (2) Full qty
15
RIVET
62764000 (14) Full qty
16
LH. BRACKET
65547800 (1) Full qty
16
RH BRACKET
65546400 (1) Full qty
17
SCREW -Applicable for HELE-
15644075 (4) Full qty
18
L.H. COVERED DOOR PANEL
681694 (1) Full qty
18
R.H. COVERED DOOR PANEL
684137 (1) Full qty
18
L.H. COVERED DOOR PANEL
684139 (1) Full qty
18
R.H. COVERED DOOR PANEL
681693 (1) Full qty
19
NUT
14190290 (12) Full qty
20
RING CLAMP
177553 (8) Full qty
21
Block to fix. plate and plate …
14201980 (2) Full qty
22
COVERED L.H. UTILITY POCKET
67839200 (1) Full qty
22
COVERED R.H. UTILITY POCKET
67805500 (1) Full qty
23
R.H. HANDLE MOULDING UPPER CON…
65157600 (1) Full qty
24
NUT
14190190 (4) Full qty
25
SCREW
68854100 (2) Full qty
26
R.H. HANDLE MOULDING LOWER CON…
65157500 (1) Full qty
27
R.H. HANDLE MOULDING KNOB
651594 (1) Full qty
28
NUT
14059211 (2) Full qty
29
R.H. HANDLE PLATE
65011500 (1) Full qty
30
L.H. PLATE FOR HANDLE
67958300 (1) Full qty
31
SCREW
13276077 (1) Full qty
32
R.H. DOOR ARM REST
678044 (1) Full qty
33
L.H. DOOR ARM REST
678381 (1) Full qty
34
R.H. DOOR ARM REST INSERT
678061 (1) Full qty
34
L.H. DOOR ARM REST INSERT
678398 (1) Full qty
35
L.H. BRACKET
65702800 (1) Full qty
35
R.H. BRACKET
65075100 (1) Full qty
36
SCREW
16082901 (4) Full qty
37
LOUD SPEAKER WOOFER
65865100 (2) Full qty
37
LOUD SPEAKER WOOFER
188607 (2) Full qty
38
LOUD SPEAKER R.H. SUPPORT BRAC…
67941700 (1) Full qty
38
LOUD SPEAKER L.H. SUPPORT BRAC…
67960500 (1) Full qty
39
SCREW
10444887 (7) Full qty
40
Washer
14497701 (14) Full qty
41
WASHER -Version with front cam…
12601074 (7) Full qty
42
Nut
10721911 (7) Full qty
43
Nut
15896411 (16) Full qty
44
WASHER
12638104 (16) Full qty
45
LH SEATBELT SLOT SURROUND
68640700 (1) Full qty
45
RH SEATBELT SLOT SURROUND
68640600 (1) Full qty
46
COVER
679602 (1) Full qty
47
PLATE
67194200 (2) Full qty
48
CLIP
65705300 (4) Full qty
49
L.H. WATER PROTECTION CLOTH
68643700 (1) Full qty
49
R.H. WATER PROTECTION CLOTH
68643600 (1) Full qty
50
RUBBER
67111400 (4) Full qty
51
Block to fix. plate and plate …
14201980 (4) Full qty
