Flat Undertray And Wheelhouses

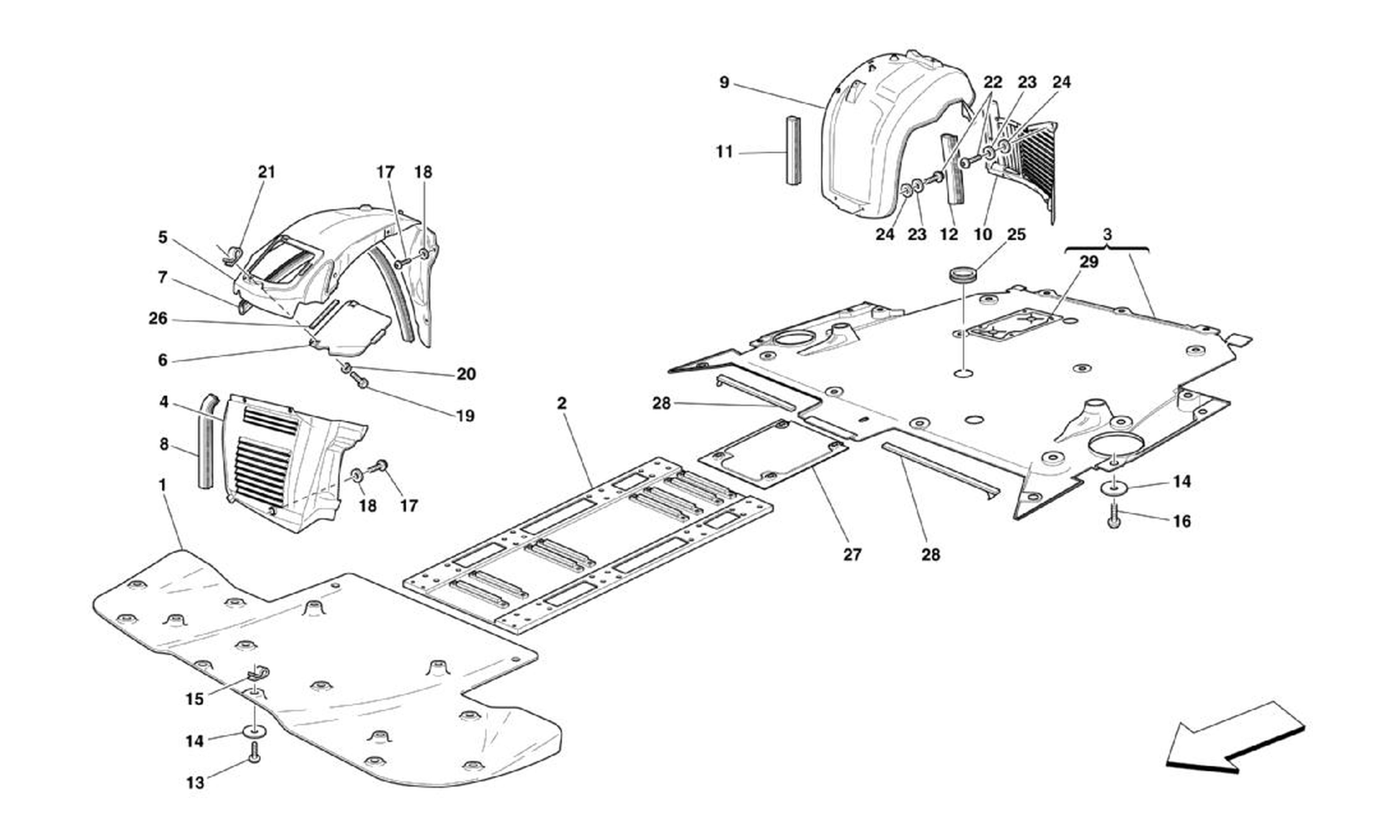

Schematic: Flat Undertray And Wheelhouses
Loc
Part
Cond       Price
1
FRONT UNDER THE BODY SHELL SHI…
80494600 (1) Full qty
1
FRONT UNDER THE BODY SHELL SHI…
80494600 (1) Full qty
2
CENTRE CONSOLE REINFORCEMENT
198642 (1) Full qty
3
REAR UNDER THE BODY SHELL SHIE…
68373000 (1) Full qty
4
LH. WHEEL FRONT GRAVEL GUARD
80255900 (1) Full qty
4
RH. WHEEL FRONT GRAVEL GUARD
80255800 (1) Full qty
5
RH. FRONT WHEELHOUSE EXTERNAL …
67957400 (1) Full qty
5
LH. FRONT WHEELHOUSE EXTERNAL …
67964900 (1) Full qty
6
LH. WHEELHOUSE COVER PLATE
65522400 (1) Full qty
6
RH. WHEELHOUSE COVER PLATE
65522300 (1) Full qty
7
GASKET
68036400 (2) Full qty
8
GASKET
64994500 (2) Full qty
9
LH. REAR WHEELHOUSE
67957200 (1) Full qty
9
RH. REAR WHEELHOUSE
67957300 (1) Full qty
10
L.H. GRAVEL GUARD FOR REAR WHE…
67964500 (1) Full qty
10
R.H. GRAVEL GUARD FOR REAR WHE…
67964400 (1) Full qty
11
GASKET
64865000 (2) Full qty
12
RH. GASKET
68034900 (2) Full qty
13
SCREW -M6 X 20- -Fastening bra…
10902424 (16) Full qty
14
WASHER
66121400 (34) Full qty
15
BRACKET FOR SCREWS
14189071 (6) Full qty
16
SCREW -M6 X 20- -Fastening bra…
10902424 (23) Full qty
17
SCREW
13276477 (10) Full qty
18
WASHER
11197777 (10) Full qty
19
SCREW
10977887 (4) Full qty
20
Washer
12638177 (4) Full qty
21
BRACKET WITH COLLAR -Version w…
66927700 (4) Full qty
22
SCREW
13276477 (18) Full qty
23
WASHER
11197777 (18) Full qty
24
WASHER
12643724 (18) Full qty
25
CAP
64783600 (1) Full qty
26
ANTI VIBRATION GASKET
66092500 (2) Full qty
27
CENTRAL UNDERBODY GUARD
68023300 (1) Full qty
28
GASKET
68035000 (2) Full qty
29
OIL FILTER ACCESS HATCH
68372600 (1) Full qty
