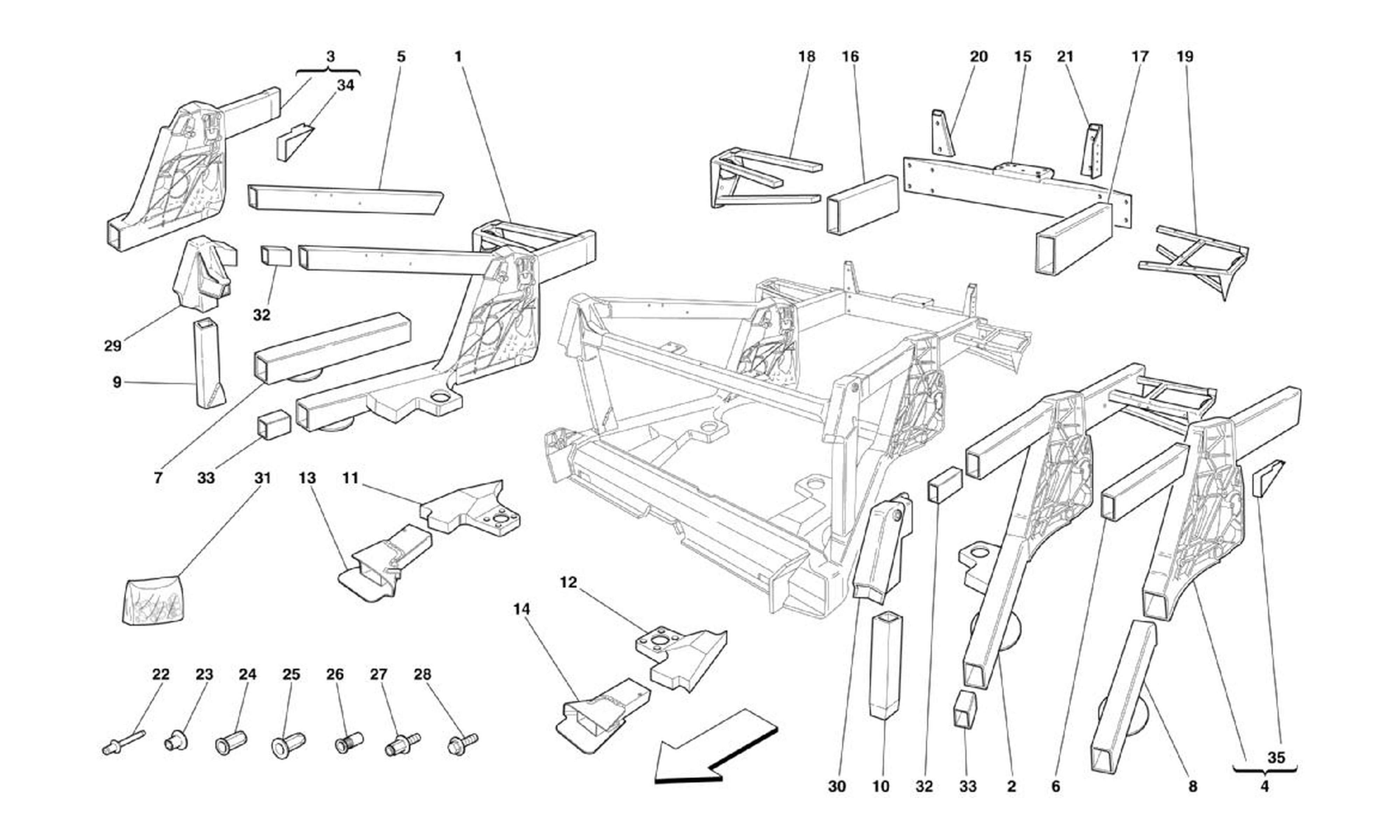

Chassis - Rear Element Subassemblies

1

COMPLETE R.H. SIDE FRAME

68887300 (1) Full qty

Qty Add to Quote

2

COMPLETE L.H. SIDE FRAME

68887400 (1) Full qty

Qty Add to Quote

3

R.H. REAR LATERAL CASTING

68887500 (1) Full qty

Qty Add to Quote

4

L.H. REAR LATERAL CASTING

68887600 (1) Full qty

Qty Add to Quote

5

R.H. UPPER FRAME

202584 (1) Full qty

Qty Add to Quote

6

L.H. UPPER FRAME

202583 (1) Full qty

Qty Add to Quote

7

R.H. LOWER FRAME

212303 (1) Full qty

Qty Add to Quote

8

L.H. LOWER FRAME

212302 (1) Full qty

Qty Add to Quote

9

COMPLETE R.H. REAR PANEL

66051200 (1) Full qty

Qty Add to Quote

10

COMPLETE L.H. REAR PANEL

66051100 (1) Full qty

Qty Add to Quote

11

R.H. BRACKET ENGINE SUPPORT

195208 (1) Full qty

Qty Add to Quote

12

L.H. BRACKET ENGINE SUPPORT

195207 (1) Full qty

Qty Add to Quote

13

R.H. SUPPORT FOR BRACKET

65942200 (1) Full qty

Qty Add to Quote

14

L.H. SUPPORT FOR BRACKET

65942300 (1) Full qty

Qty Add to Quote

15

REAR BUMPER CROSS MEMBER

215081 (1) Full qty

Qty Add to Quote

16

R.H. REAR FRAME

207272 (1) Full qty

Qty Add to Quote

17

L.H. REAR FRAME

207271 (1) Full qty

Qty Add to Quote

18

R.H. REAR FENDER FRAME

67679200 (1) Full qty

Qty Add to Quote

19

L. H. REAR FENDER FRAME

67780200 (1) Full qty

Qty Add to Quote

19

REAR LH. FENDER FRAME

67780211 (1) Full qty

Qty Add to Quote

20

RH. LATERAL BRACKET

68027011 (1) Full qty

Qty Add to Quote

21

LH. LATERAL BRACKET

68027111 (1) Full qty

Qty Add to Quote

22

POP RIVET

14642891 (1) Full qty

Qty Add to Quote

23

RIVET

65133800 (1) Full qty

Qty Add to Quote

24

RIVET

15180411 (1) Full qty

Qty Add to Quote

24

HEXAGONAL RIVET

15624211 (1) Full qty

Qty Add to Quote

24

RIVET

15624311 (1) Full qty

Qty Add to Quote

24

HEXAGONAL RIVET

15624411 (1) Full qty

Qty Add to Quote

24

HEXAGONAL RIVET

15624511 (1) Full qty

Qty Add to Quote

25

RIVET

65151200 (1) Full qty

Qty Add to Quote

26

KNURLED RIVET

65930400 (1) Full qty

Qty Add to Quote

26

KNURLED RIVET

65135000 (1) Full qty

Qty Add to Quote

26

KNURLED RIVET

166101 (1) Full qty

Qty Add to Quote

26

Rivet to fix. net under the gr…

60853400 (1) Full qty

Qty Add to Quote

26

NUT KNURLED RIVET

65319800 (1) Full qty

Qty Add to Quote

27

HEXAGONAL HEAD STUD BOLT

65065400 (1) Full qty

Qty Add to Quote

28

SCREW

13836771 (1) Full qty

Qty Add to Quote

29

R.H. UPPER FUSION REAR PILLAR

6166261 (1) Full qty

Qty Add to Quote

30

L.H. UPPER FUSION REAR PILLAR

6166161 (1) Full qty

Qty Add to Quote

31

REPAIR INSERTS KIT

70000950 (1) Full qty

Qty Add to Quote

32

UPPER INNER CORE

181980 (1) Full qty

Qty Add to Quote

33

LOWER INNER CORE

181979 (1) Full qty

Qty Add to Quote

34

R.H. REINFORCEMENT

196575 (1) Full qty

Qty Add to Quote

35

L.H. REINFORCEMENT

196574 (1) Full qty

Qty Add to Quote
