L.H. Cylinder Head

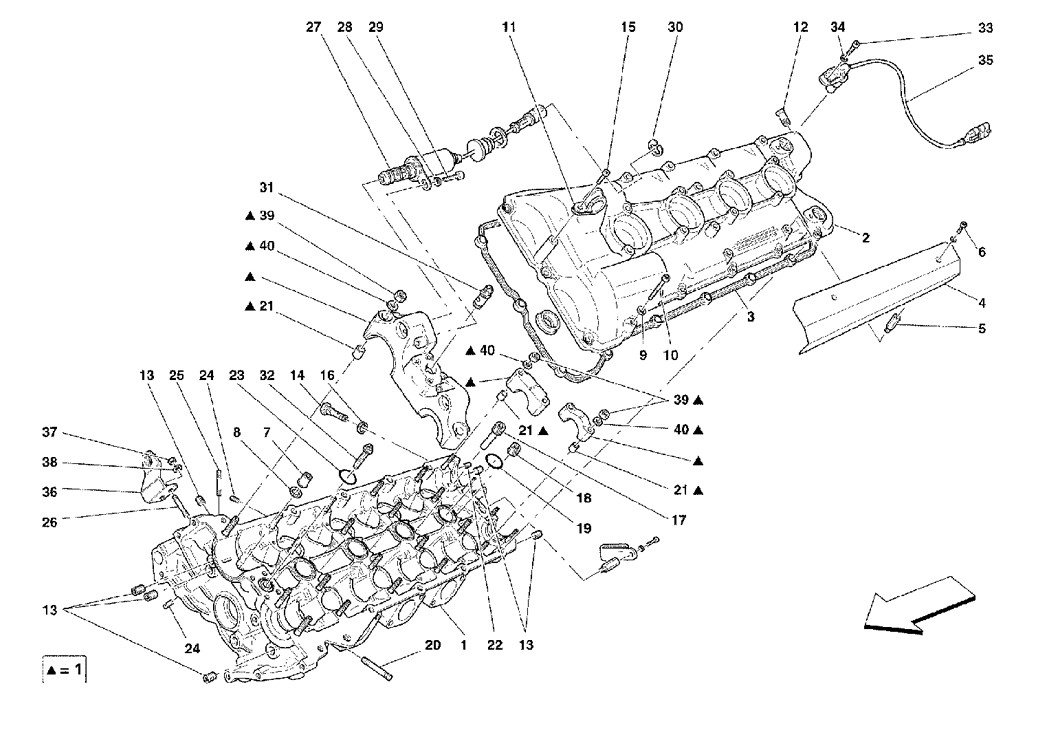

Schematic: L.H. Cylinder Head
Loc
Part
Cond       Price
1
COMPLETE L.H. HEAD
206797 (1) Full qty
2
L.H. CYLINDERS HEAD COVER
197576 (1) Full qty
3
L.H. HEAD COVER GASKET
198550 (1) Full qty
4
ANTI HEAT SHIELD
212025 (1) Full qty
5
STUD BOLT
212466 (1) Full qty
6
SCREW -M6 X 14-
14305724 (1) Full qty
7
NUT
183524 (10) Full qty
8
WASHER
151117 (10) Full qty
9
New       Price on Enquiry
11197774 (14) Full qty
GE35524n
10
SCREW
156834 (14) Full qty
11
Hose fastening bracket
10441490 (2) Full qty
12
Nipple for power brake depress…
124342 (1) Full qty
13
THREADED PLUG
14326001 (6) Full qty
14
NONRETURN VALVE
180267 (1) Full qty
15
SCREW -No longer supplied- -Re…
14305124 (1) Full qty
16
Gasket
10261060 (1) Full qty
17
THREADED PLUG
183447 (4) Full qty
18
THREADED PLUG
164400 (1) Full qty
19
Spark Plug Sleeve Gasket F430
187706 (4) Full qty
20
STUD BOLT
211641 (8) Full qty
21
New       £ 0.89
102725 (22) Full qty
EL99607n
22
THREADED PLUG -Applicable for …
14326101 (1) Full qty
23
New       Price on Enquiry
134233 (1) Full qty
GE00328n
24
THREADED PLUG -D. 6 X 1-
199760 (4) Full qty
25
STUD
13541224 (8) Full qty
26
STUD
13516624 (2) Full qty
27
VARIABLE VALVE TIMING ADJUSTER…
212422 (1) Full qty
27
New       Price on Enquiry
250646 (1) Full qty
EL99574n
28
New       Price on Enquiry
11197774 (1) Full qty
GE35524n
29
SCREW
14433124 (1) Full qty
30
FLEXIBLE RING
11087376 (1) Full qty
31
OIL PRESSURE REGULATOR VALVE
184681 (1) Full qty
32
OIL FILTER
180266 (1) Full qty
33
Screw
14305224 (1) Full qty
34
New       Price on Enquiry
11197774 (1) Full qty
GE35524n
35
PHASE SENSOR
177673 (1) Full qty
36
BRACKET
207422 (1) Full qty
37
NUT
16100814 (2) Full qty
38
WASHER
11193874 (2) Full qty
39
Nut
New       Price on Enquiry
15896211 (22) Full qty
CH11996n
40
New       Price on Enquiry
11197774 (22) Full qty
GE35524n
