Power Unit And Tank -Valid For F1-

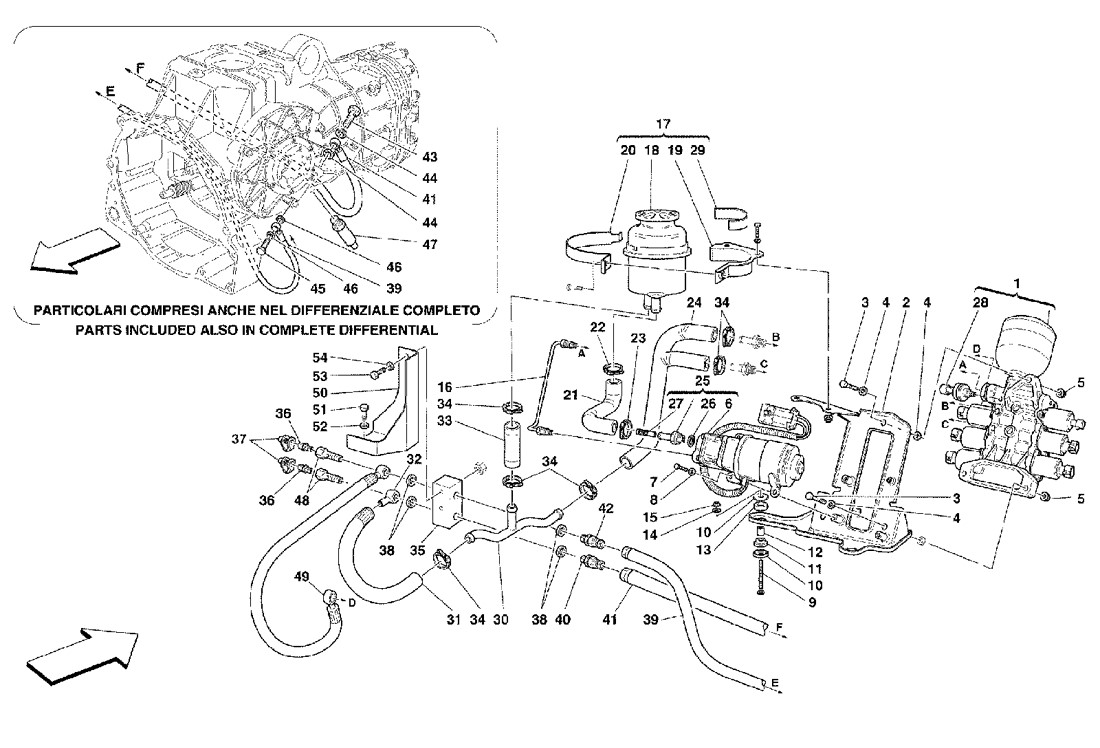

Schematic: Power Unit And Tank -Valid For F1-
Loc
Part
Cond       Price
1
POWER UNIT
179533 (1) Full qty
2
POWER UNIT SUPPORTING BRACKET
179296 (1) Full qty
3
Screw
16043934 (3) Full qty
4
WASHER
14496524 (6) Full qty
5
NUT
175283 (3) Full qty
6
ELECTRIC PUMP KIT
248083 (1) Full qty
6
F1 Hydraulic Gearbox Pump (213…
247223 (1) Full qty
7
Screw
10902324 (3) Full qty
8
WASHER
14496424 (3) Full qty
9
Short stud
13541624 (4) Full qty
10
CUP
179636 (8) Full qty
11
LOWER PAD
179639 (4) Full qty
12
SPACER
179637 (4) Full qty
13
UPPER PAD
179638 (4) Full qty
14
WASHER
12620474 (4) Full qty
15
Nut
14058411 (4) Full qty
16
PIPE FROM ELECTRICAL PUMP TO P…
186037 (1) Full qty
17
OIL TANK
202390 (1) Full qty
18
PLUG
202522 (1) Full qty
19
TANK SUPPORT BRACKET
179593 (1) Full qty
20
SUPPORT CLAMP
171746 (1) Full qty
21
PIPE FROM TANK TO PUMP
179338 (1) Full qty
22
COLLAR
13432670 (1) Full qty
23
CLIP
13430770 (1) Full qty
24
OIL RETURN TUBE
199564 (1) Full qty
25
COMPLETE UNION
185858 (1) Full qty
26
GASKET
10280050 (1) Full qty
27
UNION FILTER
193540 (1) Full qty
28
PRESSURE SENSOR
190662 (1) Full qty
29
SMALL PLATE
183718 (1) Full qty
30
CORE
213202 (1) Full qty
31
RETURN TUBE
199566 (1) Full qty
32
RING
204451 (1) Full qty
33
PIPE FROM TANK
213293 (1) Full qty
34
CLIP
13430770 (7) Full qty
35
BLOCK
199567 (1) Full qty
36
Bleed Screw
152954 (2) Full qty
37
PROTECTION BOOT
152955 (2) Full qty
38
Gasket
10261060 (4) Full qty
39
DELIVERY PIPE
204431 (1) Full qty
40
COUPLING
208072 (1) Full qty
41
RETURN PIPE
215701 (1) Full qty
42
QUICK MALE COUPLING
210468 (1) Full qty
43
PIPE UNION
201867 (1) Full qty
44
GASKET
10261160 (2) Full qty
45
PIPE UNION
201866 (1) Full qty
46
Gasket
10261060 (2) Full qty
47
REGULATOR VALVE
205742 (1) Full qty
48
UNION
171630 (2) Full qty
49
SUPPLY TUBE
204435 (1) Full qty
50
BRACKET
207999 (1) Full qty
51
SCREW
10902224 (2) Full qty
52
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
53
SCREW
10903024 (2) Full qty
54
New       Price on Enquiry
12644424 (2) Full qty
CS12006n
54
Used       Price on Enquiry
12644424 (2) Full qty
CS12006u
