Cooling System

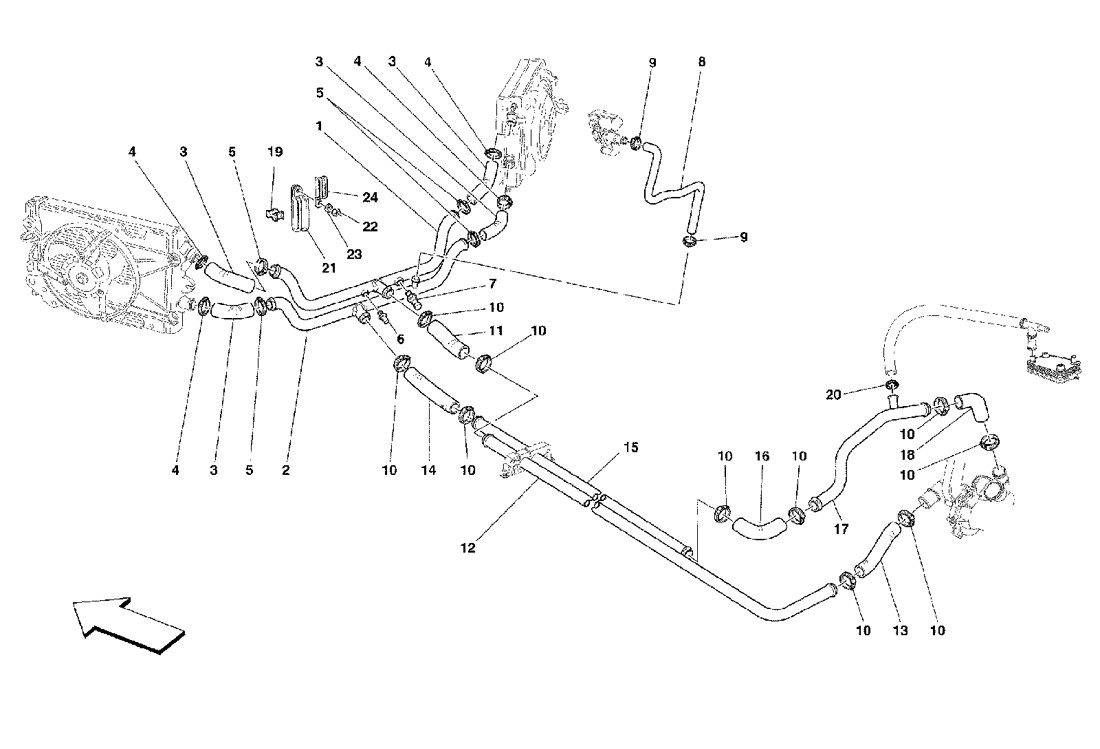

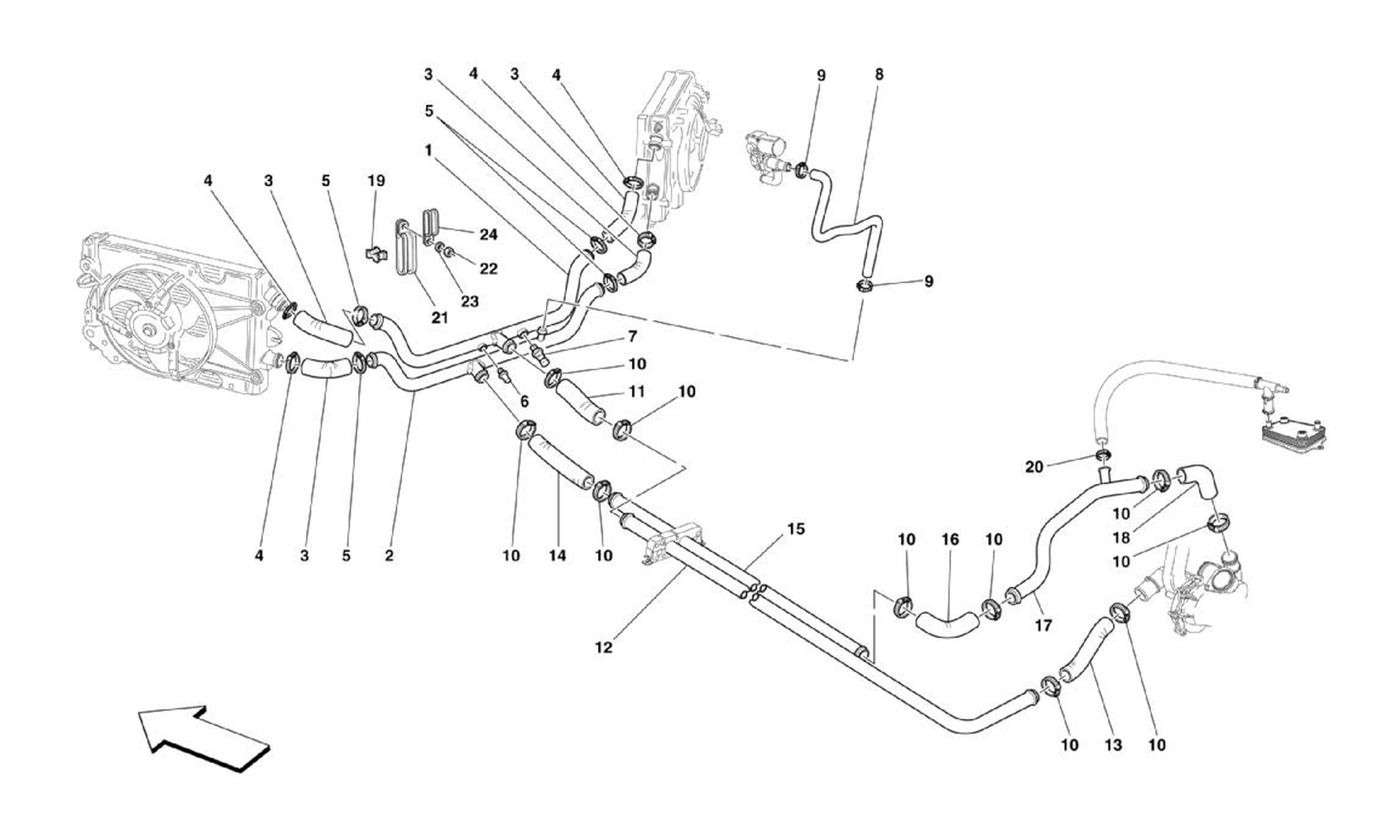

Schematic: Cooling System
Loc
Part
Cond       Price
1
DELIVERY WATER PIPE
198533 (1) Full qty
2
RETURN WATER PIPE
198534 (1) Full qty
3
RUBBER HOSE
181757 (4) Full qty
4
SCREW COLLAR
13001690 (4) Full qty
5
SCREW COLLAR
13000590 (4) Full qty
6
WATER/OIL TEMPERATURE SENSOR
180137 (1) Full qty
7
New       Price on Enquiry
176322 (1) Full qty
CS11924n
8
PIPE FROM VALVE TO RETURN TUBE…
65231800 (1) Full qty
9
Clamp
13000390 (2) Full qty
10
SCREW COLLAR
13001690 (10) Full qty
11
RUBBER DELIVERY PIPE
202547 (1) Full qty
12
UNDERBODY ALLUMINUM DELIVERY P…
206621 (1) Full qty
13
RUBBER PIPE
208338 (1) Full qty
14
RUBBER RETURN PIPE
202548 (1) Full qty
15
UNDERBODY ALLUMINUM RETURN PIP…
206728 (1) Full qty
16
PRESHAPED RUBBER HOSE
193463 (1) Full qty
17
ALUMINIUM PIPE
209686 (1) Full qty
18
RUBBER PIPE
206717 (1) Full qty
19
SHIM
183641 (2) Full qty
20
RING CLAMP
177995 (1) Full qty
21
BRACKET WITH SHEATH
183642 (2) Full qty
22
Nut
102741 (2) Full qty
23
WASHER
10730114 (2) Full qty
24
Hose fastening bracket
61712500 (2) Full qty
